The Cat® 980 Wheel Loader brings premium performance with simple-to-use technologies helping to boost operator efficiencies and deliver consistent high bucket fill factors resulting in highly efficient productivity. Long service intervals help to reduce downtime. This machine is designed to meet emission standards without interrupting operation delivering great performance, reliability, durability, and versatility resulting in a machine that is built to meet your needs.
Caterpillar

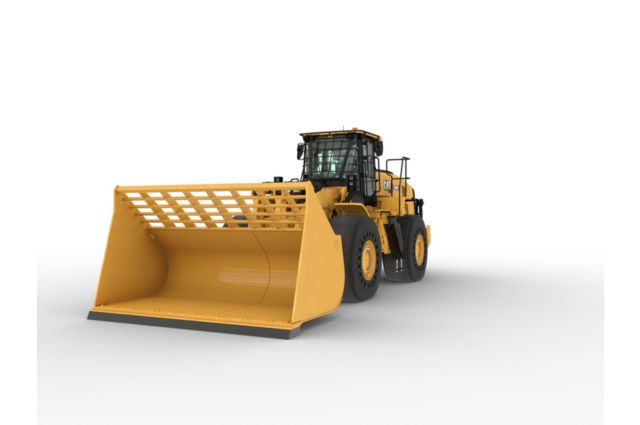

980 Wheel Loader
Overview
Photos
-
980 -
980 -
980 -
980 -
980 -
980
Videos
360° View
Exterior
360 Exterior view. Double click on the image to zoom in on any area of the product.
Interior
360� interior view. Double click on the image to zoom in on any area of the product.
Showroom
Virtual Product Tour. Double click on the hotspots to see in on any area of the product.
Features
Latest Features
- Collision Warning System with Motion Inhibit helps to improve worker safety on the ground. It utilizes radar and vision sensors to detect hazard potentials, alert operators and inhibit motion in the instant a machine transitions from an inactive to an active state. Audible and visual alerts can deliver the power to see, mitigate and manage hazards that may otherwise go undetected to operators. People Detection is an effective solution that utilizes both a smart camera and radar to alert the operator when a person is detected behind the machine. When machine is stationary for at least 15 seconds, and if the rear detection system detects something in the alarm zone, Motion Inhibit will prevent the machine from engaging reverse gear helping to keep those around the machine safe.
- Cat® Command remote control enables equipment operators to work safely outside the machine when working in hazardous environments. Command offers the choice of handheld Consoles* (line-of-sight) or long-distance virtual Stations (non-line-of-sight). Deep integration with machine systems enables efficiency and productivity by maintaining the use of in-cab technology* features (Payload, Assist, etc.).
*Cat Command is not available in all regions or for all models. Please consult with your Cat dealer for machine compatibility and availability in your area. - The Cat Payload for Trade option for Cat Advanced Payload allows you to integrate the scale data directly into your business processes. It is type approved by the International Organization of Legal Metrology, while retaining all the features of the standard version of Cat Advanced Payload. Available in Europe, Turkey, Australia, and New Zealand.**
** Country certifications vary. Contact your Cat dealer for more information. - Job Aids help operator improve and optimize their operating skills.
- 4-point seat belt kit includes retractors on the lap belts, improving operator comfort and freedom of movement.
- Tire Pressure Monitoring System (optional) allows operator to easily monitor tire pressure from the main machine display, helping to improve machine performance, operator ride, and operating costs.
- Maintenance reminders help to synchronize machine maintenance schedule and reduce operation down time.
- Left footrest allows for added operator comfort, safety, and machine stability when working in uneven, bumpy operations.
- Advanced Payload with e-Ticket allows an operator to generate a weighing ticket and effortlessly send it over the air to any email address.
Latest Features
- Collision Warning System with Motion Inhibit helps to improve worker safety on the ground. It utilizes radar and vision sensors to detect hazard potentials, alert operators and inhibit motion in the instant a machine transitions from an inactive to an active state. Audible and visual alerts can deliver the power to see, mitigate and manage hazards that may otherwise go undetected to operators. People Detection is an effective solution that utilizes both a smart camera and radar to alert the operator when a person is detected behind the machine. When machine is stationary for at least 15 seconds, and if the rear detection system detects something in the alarm zone, Motion Inhibit will prevent the machine from engaging reverse gear helping to keep those around the machine safe.
- Cat® Command remote control enables equipment operators to work safely outside the machine when working in hazardous environments. Command offers the choice of handheld Consoles* (line-of-sight) or long-distance virtual Stations (non-line-of-sight). Deep integration with machine systems enables efficiency and productivity by maintaining the use of in-cab technology* features (Payload, Assist, etc.).
*Cat Command is not available in all regions or for all models. Please consult with your Cat dealer for machine compatibility and availability in your area. - The Cat Payload for Trade option for Cat Advanced Payload allows you to integrate the scale data directly into your business processes. It is type approved by the International Organization of Legal Metrology, while retaining all the features of the standard version of Cat Advanced Payload. Available in Europe, Turkey, Australia, and New Zealand.**
** Country certifications vary. Contact your Cat dealer for more information. - Job Aids help operator improve and optimize their operating skills.
- 4-point seat belt kit includes retractors on the lap belts, improving operator comfort and freedom of movement.
- Tire Pressure Monitoring System (optional) allows operator to easily monitor tire pressure from the main machine display, helping to improve machine performance, operator ride, and operating costs.
- Maintenance reminders help to synchronize machine maintenance schedule and reduce operation down time.
- Left footrest allows for added operator comfort, safety, and machine stability when working in uneven, bumpy operations.
- Advanced Payload with e-Ticket allows an operator to generate a weighing ticket and effortlessly send it over the air to any email address.
Reliability You Can Count On
- Cat C13 engine offers high power density with a combination of proven electronics, fuel, and air systems.
- Equipped with automatic Cat regeneration system, Cat Clean Emissions Module (CEM) with Diesel Particulate Filter (DPF), and Diesel Exhaust Fluid (DEF) tank and pump.
- Features an electric fuel priming pump, fuel-water separator, and secondary fuel filter.
- Thorough component design and machine validation processes result in unmatched reliability and uptime.
Reliability You Can Count On
- Cat C13 engine offers high power density with a combination of proven electronics, fuel, and air systems.
- Equipped with automatic Cat regeneration system, Cat Clean Emissions Module (CEM) with Diesel Particulate Filter (DPF), and Diesel Exhaust Fluid (DEF) tank and pump.
- Features an electric fuel priming pump, fuel-water separator, and secondary fuel filter.
- Thorough component design and machine validation processes result in unmatched reliability and uptime.
Built for Long-Term Production
- Heavy-duty transmission and axles designed to handle extreme applications.
- Automatic planetary powershift (4F/4R) transmission features durable, long-lasting components.
- Full-flow hydraulic filtration system with additional kidney-loop filtration improves hydraulic system reliability and component life.
Built for Long-Term Production
- Heavy-duty transmission and axles designed to handle extreme applications.
- Automatic planetary powershift (4F/4R) transmission features durable, long-lasting components.
- Full-flow hydraulic filtration system with additional kidney-loop filtration improves hydraulic system reliability and component life.
Achieve Great Performance
- Autodig with Auto Set Tires for consistent high bucket fill factors delivers excellent productivity.
- Powershift transmission with lock-up clutch increases fuel efficiency while delivering optimal performance.
- Single clutch lock-to-lock shifting for faster acceleration and speed on grades.
- Application Profiles optimize machine settings for different applications at one push of a button.
- Job Aids help operators improve and optimize their operating skills.
- Performance Series Buckets utilize a system-based approach to balance bucket shape against the machine’s linkage, resulting in higher fill factors and better material retention when compared with other buckets of the same rated capacity.
- Automatic engine idle shutdown system significantly helps to reduce idle time, overall operating hours, and fuel consumption.
- Optional limited slip differentials increase traction and reduce tire slip, lowering operating costs.
- Optional aggregate handler configuration offers higher payload capability for loose aggregate handling.**
- Deeply integrated engine, powertrain, and hydraulic systems deliver unmatched productivity and fuel efficiency.
- Fusion™ Quick Coupler allows for easy tool changes without leaving the cab, letting the machine move quickly from task to task.
** Optional configurations and equipment may vary from region to region and require conformance to Caterpillar payload policy. Consult your dealer or Caterpillar representative for details.
Achieve Great Performance
- Autodig with Auto Set Tires for consistent high bucket fill factors delivers excellent productivity.
- Powershift transmission with lock-up clutch increases fuel efficiency while delivering optimal performance.
- Single clutch lock-to-lock shifting for faster acceleration and speed on grades.
- Application Profiles optimize machine settings for different applications at one push of a button.
- Job Aids help operators improve and optimize their operating skills.
- Performance Series Buckets utilize a system-based approach to balance bucket shape against the machine’s linkage, resulting in higher fill factors and better material retention when compared with other buckets of the same rated capacity.
- Automatic engine idle shutdown system significantly helps to reduce idle time, overall operating hours, and fuel consumption.
- Optional limited slip differentials increase traction and reduce tire slip, lowering operating costs.
- Optional aggregate handler configuration offers higher payload capability for loose aggregate handling.**
- Deeply integrated engine, powertrain, and hydraulic systems deliver unmatched productivity and fuel efficiency.
- Fusion™ Quick Coupler allows for easy tool changes without leaving the cab, letting the machine move quickly from task to task.
** Optional configurations and equipment may vary from region to region and require conformance to Caterpillar payload policy. Consult your dealer or Caterpillar representative for details.
Integrated Technology Solutions for Efficient Operation
- The Cat Payload for Trade option for Cat Advanced Payload allows you to integrate the scale data directly into your business processes. It is type approved by the International Organization of Legal Metrology, while retaining all the features of the standard version of Cat Advanced Payload. Available in Europe, Turkey, Australia, and New Zealand.*
- Standard Cat technologies to monitor, manage, and enhance your jobsite operations.
– VisionLink® provides actionable data insights for all assets – regardless of fleet size or equipment manufacturer.*** Customizable dashboards provide information such as hours, miles, location with mapping, idle time, asset status, asset operation, and fuel utilization. Make informed decisions that help to lower costs, simplify maintenance, and improve safety and security on your jobsite.
– Autodig allows the operator to fully automate bucket loading to improve fill factors and loading time.
– Auto Set Tires promotes proper loading technique, significantly reducing tire slip and tire wear.
- Optional Cat Advanced Payload**** with Assist:
– Enhanced lists management, site integration, and extended scale features to help manage and improve productivity and profitability of operations.
– e-Ticket allows an operator to generate a weighing ticket and effortlessly send it over the air to any email address.
- Optional VisionLink Productivity gathers and summarizes machine telematics and jobsite data from all your equipment. Improve machine efficiency, productivity, utilization and reduce per-unit costs.
* Country certifications vary. Contact your Cat dealer for more information
** Not legal for trade
*** Data field availability can vary by equipment manufacturer
**** Legal for trade certified in certain regions
Integrated Technology Solutions for Efficient Operation
- The Cat Payload for Trade option for Cat Advanced Payload allows you to integrate the scale data directly into your business processes. It is type approved by the International Organization of Legal Metrology, while retaining all the features of the standard version of Cat Advanced Payload. Available in Europe, Turkey, Australia, and New Zealand.*
- Standard Cat technologies to monitor, manage, and enhance your jobsite operations.
– VisionLink® provides actionable data insights for all assets – regardless of fleet size or equipment manufacturer.*** Customizable dashboards provide information such as hours, miles, location with mapping, idle time, asset status, asset operation, and fuel utilization. Make informed decisions that help to lower costs, simplify maintenance, and improve safety and security on your jobsite.
– Autodig allows the operator to fully automate bucket loading to improve fill factors and loading time.
– Auto Set Tires promotes proper loading technique, significantly reducing tire slip and tire wear.
- Optional Cat Advanced Payload**** with Assist:
– Enhanced lists management, site integration, and extended scale features to help manage and improve productivity and profitability of operations.
– e-Ticket allows an operator to generate a weighing ticket and effortlessly send it over the air to any email address.
- Optional VisionLink Productivity gathers and summarizes machine telematics and jobsite data from all your equipment. Improve machine efficiency, productivity, utilization and reduce per-unit costs.
* Country certifications vary. Contact your Cat dealer for more information
** Not legal for trade
*** Data field availability can vary by equipment manufacturer
**** Legal for trade certified in certain regions
Safety Features
- Collision Warning System with Motion Inhibit helps to improve worker safety on the ground. It utilizes radar and vision sensors to detect hazard potentials, alert operators and inhibit motion in the instant a machine transitions from an inactive to an active state. Audible and visual alerts can deliver the power to see, mitigate and manage hazards that may otherwise go undetected to operators. People Detection is an effective solution that utilizes both a smart camera and radar to alert the operator when a person is detected behind the machine. When machine is stationary for at least 15 seconds, and if the rear detection system detects something in the alarm zone, Motion Inhibit will prevent the machine from engaging reverse gear helping to keep those around the machine safe.
- Cat® Command remote control enables equipment operators to work safely outside the machine when working in hazardous environments. Command offers the choice of handheld Consoles* (line-of-sight) or long-distance virtual Stations (non-line-of-sight). Deep integration with machine systems enables efficiency and productivity by maintaining the use of in-cab technology* features (Payload, Assist, etc.).
*Cat Command is not available in all regions or for all models. Please consult with your Cat dealer for machine compatibility and availability in your area. - Rear-vision camera enhances visibility behind the machine, helping you work more safely.
- 4-point seat belt kit includes retractors on the lap belts, improving operator comfort and freedom of movement.
- Cab access with wide door, optional remote door opening, and inclined steps add solid stability.
- Floor-to-ceiling windshield, large mirrors with integrated spot mirrors, and rear-vision camera provide industry leading all-around visibility.
- Computerized monitoring system includes several warning indicators.
- Monitored seat belt is standard and can be enhanced with an optional exterior indicator.
- Optional multiview (360˚) vision system helps the operator monitor the surroundings of the machine at all times.
- Optional Cat Detect radar technology enhances awareness by monitoring the working environment and alerts operators to hazards.
- Optional access light and under-hood service light system to provide illuminated access to the machine and daily checks even in the dark.
Safety Features
- Collision Warning System with Motion Inhibit helps to improve worker safety on the ground. It utilizes radar and vision sensors to detect hazard potentials, alert operators and inhibit motion in the instant a machine transitions from an inactive to an active state. Audible and visual alerts can deliver the power to see, mitigate and manage hazards that may otherwise go undetected to operators. People Detection is an effective solution that utilizes both a smart camera and radar to alert the operator when a person is detected behind the machine. When machine is stationary for at least 15 seconds, and if the rear detection system detects something in the alarm zone, Motion Inhibit will prevent the machine from engaging reverse gear helping to keep those around the machine safe.
- Cat® Command remote control enables equipment operators to work safely outside the machine when working in hazardous environments. Command offers the choice of handheld Consoles* (line-of-sight) or long-distance virtual Stations (non-line-of-sight). Deep integration with machine systems enables efficiency and productivity by maintaining the use of in-cab technology* features (Payload, Assist, etc.).
*Cat Command is not available in all regions or for all models. Please consult with your Cat dealer for machine compatibility and availability in your area. - Rear-vision camera enhances visibility behind the machine, helping you work more safely.
- 4-point seat belt kit includes retractors on the lap belts, improving operator comfort and freedom of movement.
- Cab access with wide door, optional remote door opening, and inclined steps add solid stability.
- Floor-to-ceiling windshield, large mirrors with integrated spot mirrors, and rear-vision camera provide industry leading all-around visibility.
- Computerized monitoring system includes several warning indicators.
- Monitored seat belt is standard and can be enhanced with an optional exterior indicator.
- Optional multiview (360˚) vision system helps the operator monitor the surroundings of the machine at all times.
- Optional Cat Detect radar technology enhances awareness by monitoring the working environment and alerts operators to hazards.
- Optional access light and under-hood service light system to provide illuminated access to the machine and daily checks even in the dark.
Reduce Your Maintenance Time and Costs
- Long fluid and filter change intervals help to reduce downtime.
- Tire Pressure Monitoring System (optional) allows operator to easily monitor tire pressure from the main machine display helping to improve machine performance, operator ride and operating costs.
- Maintenance reminders help to synchronize machine maintenance schedule and reduce operation down time.
- Convenient access to hydraulic and electrical service centers for easy ground-level servicing.
- Remote Troubleshoot allows you to perform diagnostic and calibration testing on your connected machine remotely.
- Remote Flash updates onboard software without a technician being present, potentially reducing update time by as much as 50%.
- VisionLink helps you manage fleet location, hours, and maintenance schedules. It also alerts you for required maintenance and allows you to request service from your local Cat dealer.
- Integrated Autolube extends component and service life.
- One-piece tilting hood makes engine compartment access fast and easy.
Reduce Your Maintenance Time and Costs
- Long fluid and filter change intervals help to reduce downtime.
- Tire Pressure Monitoring System (optional) allows operator to easily monitor tire pressure from the main machine display helping to improve machine performance, operator ride and operating costs.
- Maintenance reminders help to synchronize machine maintenance schedule and reduce operation down time.
- Convenient access to hydraulic and electrical service centers for easy ground-level servicing.
- Remote Troubleshoot allows you to perform diagnostic and calibration testing on your connected machine remotely.
- Remote Flash updates onboard software without a technician being present, potentially reducing update time by as much as 50%.
- VisionLink helps you manage fleet location, hours, and maintenance schedules. It also alerts you for required maintenance and allows you to request service from your local Cat dealer.
- Integrated Autolube extends component and service life.
- One-piece tilting hood makes engine compartment access fast and easy.
Work in Comfort
- Easily adjustable seat and suspension for outstanding operator comfort. It comes in two trim levels and can be equipped with a 4-point harness (kit).
- Spacious cab with significant leg room and adjustable seat controls for added comfort and efficiency.
- Left footrest allows for added operator comfort, safety and machine stability when working in uneven, bumpy operations.
- Automatic air conditioning system keeps the cab cool as desired.
- In-cab dashboard and high-resolution touch display(s) are easy to use, intuitive, and user friendly.
- Sound suppression, seals, and viscous cab mounts decrease noise and vibration for a quieter work environment.
- The seat-mounted electro-hydraulic joystick steering system provides precision control and dramatically reduces arm fatigue, resulting in excellent comfort and accuracy. A conventional HMU steering wheel is also available in many regions.
- Ride control works as a shock absorber, improving ride quality over rough terrain.
Work in Comfort
- Easily adjustable seat and suspension for outstanding operator comfort. It comes in two trim levels and can be equipped with a 4-point harness (kit).
- Spacious cab with significant leg room and adjustable seat controls for added comfort and efficiency.
- Left footrest allows for added operator comfort, safety and machine stability when working in uneven, bumpy operations.
- Automatic air conditioning system keeps the cab cool as desired.
- In-cab dashboard and high-resolution touch display(s) are easy to use, intuitive, and user friendly.
- Sound suppression, seals, and viscous cab mounts decrease noise and vibration for a quieter work environment.
- The seat-mounted electro-hydraulic joystick steering system provides precision control and dramatically reduces arm fatigue, resulting in excellent comfort and accuracy. A conventional HMU steering wheel is also available in many regions.
- Ride control works as a shock absorber, improving ride quality over rough terrain.
Purpose-Built Specialty Configurations
- Application-specific arrangements direct from the factory for optimized performance and added durability in the toughest applications, including:
– Industrial and waste models feature guarding and reinforcement necessary for work in transfer stations, recycling depots, scrap yards, and demolition sites.
– Forestry model increases lift and tilt capacities for efficient and productive log and chip handling in paper, pellet, and sawmills.
– Steel mill model is designed for the challenging work environment of steel mills and slag handling applications, incorporating an added level of safety.
– Block handler model is built with the strength and stability to get the work done in block quarries.
Purpose-Built Specialty Configurations
- Application-specific arrangements direct from the factory for optimized performance and added durability in the toughest applications, including:
– Industrial and waste models feature guarding and reinforcement necessary for work in transfer stations, recycling depots, scrap yards, and demolition sites.
– Forestry model increases lift and tilt capacities for efficient and productive log and chip handling in paper, pellet, and sawmills.
– Steel mill model is designed for the challenging work environment of steel mills and slag handling applications, incorporating an added level of safety.
– Block handler model is built with the strength and stability to get the work done in block quarries.
Specifications
-
Engine
Spec Value Engine Power - 1,700 rpm ISO 14396:2002 420 hp Engine Power - 1,700 rpm ISO 14396:2002 426 hp (metric) Engine Model Cat® C13 Gross Power - 1,700 rpm SAE J1995:2014 425 hp Gross Power - 1,700 rpm SAE J1995:2014 431 hp (metric) Net Power - 1,700 rpm ISO 9249:2007, SAE J1349:2011 393 hp Net Power - 1,700 rpm ISO 9249:2007, SAE J1349:2011 398 hp (metric) Engine Torque - 1,200 rpm ISO 14396:2002 1612 lbf·ft Gross Torque - 1,200 rpm SAE J1995:2014 1627 lbf·ft Net Torque - 1,100 rpm ISO 9249:2007, SAE J1349:2011 1539 lbf·ft Displacement 763 in³ Emissions Meets U.S. EPA Tier 4 Final, EU Stage V, Korea Stage V, China Nonroad Stage IV and Japan 2014 emission standards. Biodiesel Capability Up to B20¹ Note (1) The net power advertised is the power available at the flywheel when the engine is equipped with fan, alternator, air cleaner, and aftertreatment. Note (2) ¹Cat engines are compatible with diesel fuel blended with following lower carbon intensity fuels up to: • 20% biodiesel FAME (fatty acid methyl ester)* • 100% renewable diesel, HVO (hydrogenated vegetable oil) and GTL (gas-to-liquid) fuels Refer to guidelines for successful application. Please consult your Cat dealer or “Caterpillar Machine Fluids Recommendations” (SEBU6250) for details. *For use of blends higher than 20% biodiesel, consult your Cat dealer. **Tailpipe greenhouse gas emissions from lower-carbon intensity fuels are essentially the same as traditional fuels. Engine Power @ 1,700 rpm – ISO 14396:2002 429 hp Note (3) Cat diesel engines are required to use ULSD (ultra-low sulfur diesel fuel with 15 ppm of sulfur or less) or ULSD blended with the following lower-carbon intensity fuels up to: • 20% biodiesel FAME (fatty acid methyl ester)* • 100% renewable diesel, HVO (hydrogenated vegetable oil) and GTL (gas-to- liquid) fuels Refer to guidelines for successful application. Please consult your Cat dealer or “Caterpillar Machine Fluids Recommendations” (SEBU6250) for details. * Engines with no aftertreatment devices can use higher blends, up to 100% biodiesel. Gross Torque @ 1,200 rpm – SAE J1995:2014 1627 lb/ft Net Torque @ 1,100 rpm – ISO 9249:2007, SAE J1349:2011 1539 lb/ft Gross Power @ 1,700 rpm – SAE J1995:2014 425 hp Engine Torque @ 1,200 rpm – ISO 14396:2002 1612 lb/ft Displacement 12.5 L -
Weights
Spec Value Operating Weight 66877 lb Note Weight based on a machine configuration with Bridgestone 29.5R25 VSNT L4 radial tires, full fluids, operator, standard counterweight, ride control, cold start, roading fenders, Product Link™, open differential axles (front/rear), secondary steering, sound suppression, and a 5.4 m³ (7.1 yd³) general purpose bucket with BOCE. -
Transmission
Spec Value Forward - 1 4.3 mile/h Forward - 2 8.3 mile/h Forward - 3 14.6 mile/h Forward - 4 24.5 mile/h Reverse - 1 4.8 mile/h Reverse - 2 9.4 mile/h Reverse - 3 16.7 mile/h Reverse - 4 24.5 mile/h Note Maximum travel speed in standard vehicle with empty bucket and standard L4 tires with 935 mm (37 in) roll radius. -
Sound
Spec Value Operator Sound Pressure Level - ISO 6396:2008 72 dB(A) Exterior Sound Power Level - ISO 6395:2008 112 dB(A) Operator Sound Pressure Level - ISO 6396:2008 ¹ 72 dB(A) Exterior Sound Power Level - ISO 6395:2008² 109 dB(A) Note (1) ¹Including countries that adopt the EU and UK Directives. Note (2) ²Exterior Sound Power Level - European Union Directive 2000/14/EC and UK Noise Regulation 2001 No. 1701. -
Air Conditioning System
Spec Value Air Conditioning The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains 1.6 kg (3.5 lb) of refrigerant which has a CO2 equivalent 2.288 metric tonnes (2.522 tons). -
Operating Specifications
Spec Value Static Tipping Load - Full 40° Turn - With Tire Deflection 43432 lb Static Tipping Load - Full 40° Turn - No Tire Deflection 46208 lb Breakout Force 51008 lbf Note (1) For a machine configuration as defined under “Weight.” Note (2) Full compliance to ISO 14397-1:2007 Sections 1 thru 6, which requires 2% verification between calculations and testing. -
Service Refill Capacities
Spec Value Fuel Tank 112.5 gal (US) DEF Tank 5.5 gal (US) Cooling System 13.7 gal (US) Crankcase 9.8 gal (US) Transmission 20.3 gal (US) Differential - Final Drives - Front 22.2 gal (US) Differential - Final Drives - Rear 22.2 gal (US) Hydraulic Tank 40.4 gal (US) -
Hydraulic System
Spec Value Implement System - Maximum Pump Output at 2,250 rpm 119 gal/min Implement System - Maximum Operating Pressure 4975 psi Hydraulic Cycle Time - Total 10.1 s -
Dimensions - Standard Lift
Spec Value Height - Top of Hood 10.08 ft Height - Top of ROPS 12.58 ft Ground Clearance 1.42 ft Wheel Base 12.5 ft Overall Length - Without Bucket 26.83 ft Hinge Pin Height at Carry Height 2 ft Hinge Pin Height at Maximum Lift 14.92 ft Lift Arm Clearance at Maximum Lift 12.67 ft Rack Back - Maximum Lift 61 ° Rack Back - Carry Height 48 ° Width over Tires (Loaded) 10.75 ft Tread Width 8 ft Note All dimensions are approximate and based on machine equipped with 5.4 m³ (7.1 yd³) general purpose bucket with BOCE and Bridgestone 29.5R25 VSNT L4 radial tires. Rack Back - Carry Height 50 degrees Rack Back at Ground 40 degrees Rack Back - Maximum Lift 61 degrees -
Dimensions - High Lift
Spec Value Height - Top of Hood 10.08 ft Height - Top of ROPS 12.58 ft Ground Clearance 1.42 ft Wheel Base 12.5 ft Overall Length - Without Bucket 27.42 ft Hinge Pin Height at Carry Height 2.17 ft Hinge Pin Height at Maximum Lift 15.58 ft Lift Arm Clearance at Maximum Lift 13.5 ft Rack Back - Maximum Lift 61 ° Rack Back - Carry Height 50 ° Width over Tires (Loaded) 10.75 ft Tread Width 8 ft Note All dimensions are approximate and based on machine equipped with 5.4 m³ (7.1 yd³) general purpose bucket with BOCE and Bridgestone 29.5R25 VSNT L4 radial tires. Rack Back - Maximum Lift 61 degrees Rack Back at Ground 40 degrees Rack Back - Carry Height 50 degrees
Standard Equipment
NOTE
- Standard and optional equipment may vary. Consult your Cat dealer for details.
OPERATOR ENVIRONMENT
- Cab, pressurized, sound suppression
- Door, remote opening system
- EH implement controls, parking brake
- Steering, joystick
- Seat belt, monitored
- Seat, cloth, air suspension
- Touchscreen display
- Keypad, programmable buttons
- Air conditioner, heater, defroster (auto temp, fan)
- Sun visor, front, retractable
- Sun visor, rear, retractable
- Windows, front, safety laminated rounded glass
ON-BOARD TECHNOLOGIES
- Cat Payload scale
- Autodig with Auto Set Tires
- Operator ID & machine security
- Application Profiles
- Job Aids
- Controls Help and eOMM (not available in all languages)
- Key Features Inform
- Bucket Carry Display Widget
- Remote Flash
POWERTRAIN
- Cat C13 engine
- Electric fuel priming pump
- Fuel-water separator and secondary fuel filter
- Engine, air precleaner
- Axles, open differentials
- Transmission, planetary, automatic powershift
- Torque converter with lock-up
- Service brakes, hydraulic, fully enclosed wet disc, wear indicators
- Integrated Braking System (IBS)
- Park brake, caliper on front axles, spring applied-pressure released
- Brake pedal neutralizer with decel function
HYDRAULICS
- Implement system, load sensing with variable displacement piston pump
- Steering system, load sensing with dedicated variable displacement piston pump
- Ride control, dual accumulators
- Oil sampling valves, Cat XT™ hoses
ELECTRICAL
- Starting and charging system, 24V
- Starter, electric, heavy duty
- Lights: halogen, 4 work lights, 2 front roading lights with turn signals, 2 rearview lights
MONITORING SYSTEM
- Front dash with analog gauges, LCD display, and warning lights
- Primary touchscreen monitor (Cat Payload, quad screens, machine settings & messages)
- Maintenance reminders
LINKAGE
- Standard lift, Z-bar
- Kickouts: lift and tilt
SAFETY
- Visibility: mirrors, rear-vision camera
- Window cleaning platform, front
Optional Equipment
NOTE
- Standard and optional equipment may vary. Consult your Cat dealer for details.
OPERATOR ENVIRONMENT
- Footrest
- HMU steering wheel
- Implement joystick (2V, 3V only)
- Entertainment radio (FM, AM, USB, BT)
- Entertainment radio (DAB+)
- CB radio ready
- Seat, suede/cloth, air suspension, heated
- Seat, leather/cloth, air suspension, heated/ cooled
- Mirrors, heated
- Windows, front, heavy duty, or full guards
ON-BOARD TECHNOLOGIES
- Cat Advanced Payload
- Cat Payload Printer with E-ticket
- Cat Payload for Trade (Available in Europe, Türkiye, Australia, and New Zealand. Country certifications vary. Contact your Cat dealer for more information.)
- Remote Control
POWERTRAIN
- Turbine, air precleaner
- Radiator, high debris
- Cooling fan, reversible
- Axles, limited slip differential(s)
- Axles, ecology drains, AOC ready, extreme temperature seals
- Axles, oil cooler
- Heavy-duty transmission
HYDRAULICS
- 3rd auxiliary function with ride control
- Quick coupler control
ELECTRICAL
- Cold start, 120V or 240V
- Lights: LED
MONITORING SYSTEM
- Tire pressure monitor
LINKAGE
- High lift, Z-bar
ADDITIONAL EQUIPMENT
- Cat Autolube system
- Fenders, extensions or roading
- Guards: power train, crankcase, cab, cylinders, rear
- Biodegradable hydraulic oil
- High-speed oil change system
- Rear cab access
- Fast fill fuel tank
- Toolbox
SAFETY
- Cat Detect rear radar system
- Dedicated rearview screen
- Multiview (360°) vision system
- 4-point seat belt retractor
- Reversing strobe lights (not compatible with roading arrangements)
- Seat belt monitoring beacon
- Secondary steering system, electrical (Standard where mandated)
- Wheel chocks
- Warning beacon
- Collision Warning System with Motion Inhibit and People Detection
SPECIAL CONFIGURATIONS
- Aggregate handler
- Waste and scrap
- Forestry
- Steel mill
- Block handler
Sign up for Ziegler CAT emails
Events, updates, and offers
