Cat Telehandlers offer performance and versatility.
Cat

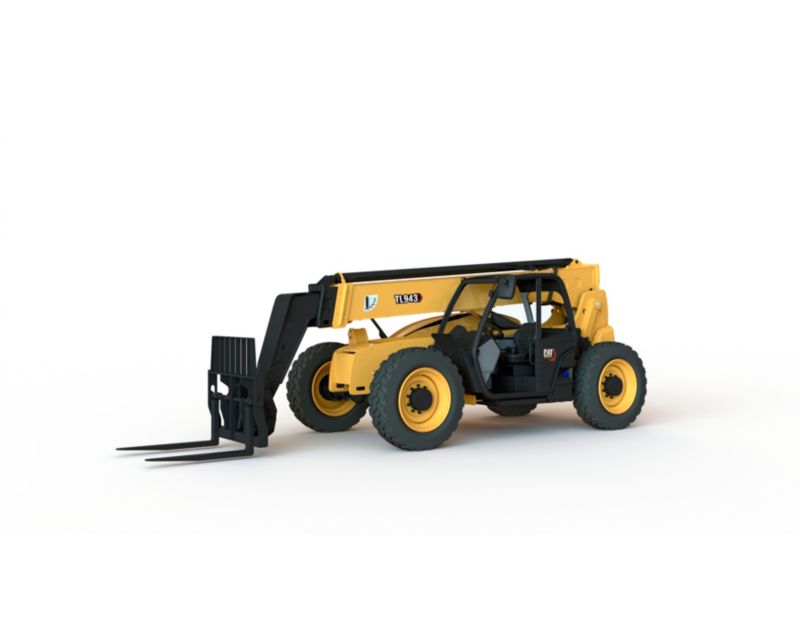

TL943 Telehandler
Specifications
-
Engine
Spec Value Engine Model Cat® C3.6L Gross Power - Basic 73.7 hp Gross Power - Premium 111 hp Note *Meets U.S. EPA Tier 4 Final emission standards. -
Weights
Spec Value Operating Weight 25750 lb -
Operating Specifications
Spec Value Rated Load Capacity 9000 lb Maximum Lift Height 43 ft Capacity at Maximum Lift Height 7000 lb Capacity at Maximum Reach 1200 lb Maximum Forward Reach 31 ft Top Travel Speed 18 mile/h -
Dimensions
Spec Value Height 8.16 ft Width 8 ft Wheel Base 11.25 ft Length - Fork Face 20.5 ft Ground Clearance 17 in Turning Radius - Over Tires 12 ft -
Tires
Spec Value Standard 370/75-28 Duraforce Air Optional (1) 370/75-28 Duraforce Foam Fill Optional (2) 315/95-28 Telemaster Solid Optional (3) 14.00-24 16PR Air Optional (4) 14.00-24 12PR Foam Optional (5) 370/75-28 Non-Marking Air Optional 370/75-28 Non-Marking Foam -
Service Refill Capacities
Spec Value Fuel Tank 38 gal (US) Hydraulic System 47 gal (US) Diesel Exhaust Fluid 5.7 gal (US) -
Boom Performance
Spec Value Boom Up 9.9 s Boom Down 8.5 s Tele In 14.6 s Tele Out 14.5 s Drawbar Pull - Premium 25589 lb -
Braking System
Spec Value Parking Brake Spring-applied hydraulic release on front axle -
Brakes
Spec Value Features Service Brakes - inboard wet disc brakes on front and rear axles; Parking Brakes- spring-applied hydraulic release on front axle -
Operator Station
Spec Value Features Vinyl suspension seat, single electronic joystick, spacious interior, ergonomic cab -
Instrumentation
Spec Value Features Volt meter, hourmeter, engine oil pressure gauge, fuel gauge, water temperature gauge -
Work Tools
Spec Value Carriages - Swing 100°, 1829 mm, 2948 kg Capacity, 2268 kg Swung (100°, 72 in, 6,500 lb Capacity, 5,000 lb Swung) Carriages - Standard Tilt 50 in Pallet Forks - Option 2 [2] 1220 mm, 60 mm × 100 mm ([2] 48 in, 2.36 in × 4 in) Carriages - Side Shift 50 in Carriages - Dual Fork Positioning 50 in Pallet Forks - Option 1 [2] 1220 mm, 60 mm × 125 mm ([2] 48 in, 2.36 in × 5 in) Lumber Forks - Option 1 [2] 1525 mm, 45 mm × 180 mm ([2] 60 in, 1.75 in × 7 in) Cubing Forks [2] 1220 mm, 50 mm × 50 mm ([2] 48 in, 2 in × 2 in) Pallet Forks - Option 3 [2] 1829 mm, 60 mm × 150 mm ([2] 72 in, 2.36 in × 6 in)
Standard Equipment
TELESCOPIC BOOM
- Boom angle indicator
ELECTRICAL
- Alternator, 60 amp, 12 volt
- Battery, 12 volt, 1000 CCA
- Horn
- Alarm, backup
OPERATOR STATION
- Canopy, ROPS/FOPS
- Joystick, single electronic
- Adjustable joystick wristrest
- Grab bars for easy entry
- Seat - vinyl, suspension with Cat logo
- Steering wheel spinner knob
- Floor mat - heavy duty
- Left side rear view mirror
- Service door, cab air intake filter, fuel fill, hydraulic fill, level indicator, fuse panel and washer fill
- Instruments - volt meter, hourmeter, engine oil pressure gauge, water temperature gauge. All gauges protected by clear acrylic cover.
- Park Brake with indicator light
- Steering Wheel with Cat logo
- Cat keys and locks
- Brakes - wet disc service
- Belt, seat - 3" wide
POWER TRAIN
- Engine, Cat C3.6L - 55kW (73.7 hp) or 83kW (111hp) gross horsepower
- Thermal starting aid
- Transmission, Cat PG145 6 speed Power-shift, 4-speed forward, 3-speed reverse
- Cat filters, hoses and couplings
- Axles - Dana
- Steering - 4 wheel
- Drive - 4 wheel
STRUCTURE
- Chassis, frame level up to 10 degrees when operating in rough, uneven terrain
- Cat IT Coupler
ANTI-FREEZE
- Coolant - Anti-freeze, 50/50 Mix
TIRES
- Tires - 370/75-28 Duraforce Air
OTHER EQUIPMENT
- Integrated lift and tie down points
- Standard Cat color paint
- Auxillary hydraulics for auxillary attachments (one function)
Optional Equipment
TELESCOPIC BOOM
- Hydraulic IT Coupler (includes Auxiliary Electrics)
ELECTRICAL
- Work Light Group: 3 Cab mounted Lights -- 2 forward, 1 rearward; 1 reversing light; 2 Boom mounted Lights, 1 rotating beacon
- Engine heater block
- Heater - open cab
- Road Light Group -- Headlights, Brake Lights, Turn Signals
OPERATOR STATION
- Air conditioning
- Single Joystick - with Rocker Switch
- EROPS - Cab Enclosure (Door, Safety Glass Windows, Front Windshield Wiper, Heater & Defroster Fan)
- Skylight Wiper
- Brick guard - Front and top.
TIRES
- Tires - 370/75-28 Duraforce Foam Fill
- Tires - 315/95-28 Telemaster Solid
- Tire - 14.00-24 16PR Air
- Tire - 14.00-24 12 PR Foam
- Tires - 370/75-28 Non-Marking Air
OTHER EQUIPMENT
- Fenders
- Tow Hook - Pintle Type
- Artic package - Package includes: 2400 AMP starter, 1000 watt hydraulic reservoir heater, 500 watt engine oil-pan heater, Dual maintenance free, 1375 CCA gel cell batteries, 160 watt battery heating blanket, 1000 watt engine block heater
WORK TOOLS
- Carriage - side shift, 50 in. (available from factory)
- Lifting Hook - fork mounted (available from factory)
- Truss Broom
- Carriage - standard tilt, 50 in. (available from factory)
- Carriage - standard rotate, 50 in. (available from factory)
- Carriage - swing, 72 in., 100 degrees, 9,000 lb. capacity, 5,000 lb. swung (available from factory)
- Pallet Forks - two 60 in, 2 in x 6 in, 9,000 lb. capacity per pair (available from factory)
- Pallet Forks - two 48 in, 2.36 in x 4 in, 9,000 lb. capacity per pair (available from factory)
- Cubing Forks - two 48 in, 2 in x 2 in, 3,800 lb. capacity per pair (available from factory)
- Bucket - General Purpose 1.3 Cu. Yd.
- Bucket - Material Handling 1.95 Cu. Yd.
- Bucket - Multi-Purpose, 1.3 Cu. Yd.
- Work Platform -- 8 ft x 4 ft with maximum capacity of 1,000 lbs. Includes enclosed fork pockets, side entry/exit gate, removable front rail and wire mesh floor
