With a legendary Cat® pedigree, the 150 motor grader offers peak performance, efficiency, and long life. Joystick controls provide ergonomic comfort for the operator. Available with a deep array of technologies to lessen the load on operators and enhance grading performance, the motor grader is one highly productive machine.
Cat
150 Motor Grader
Overview
Photos
-

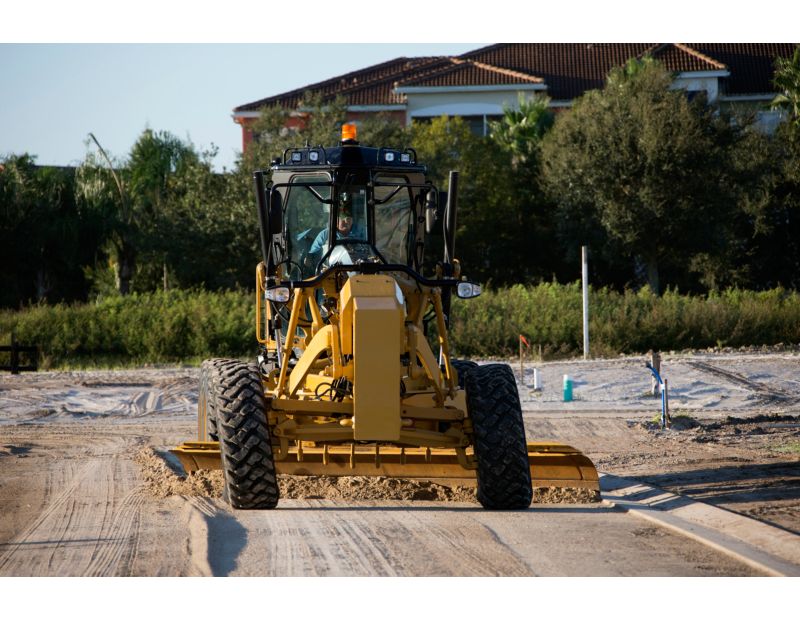

150 Motor Grader -

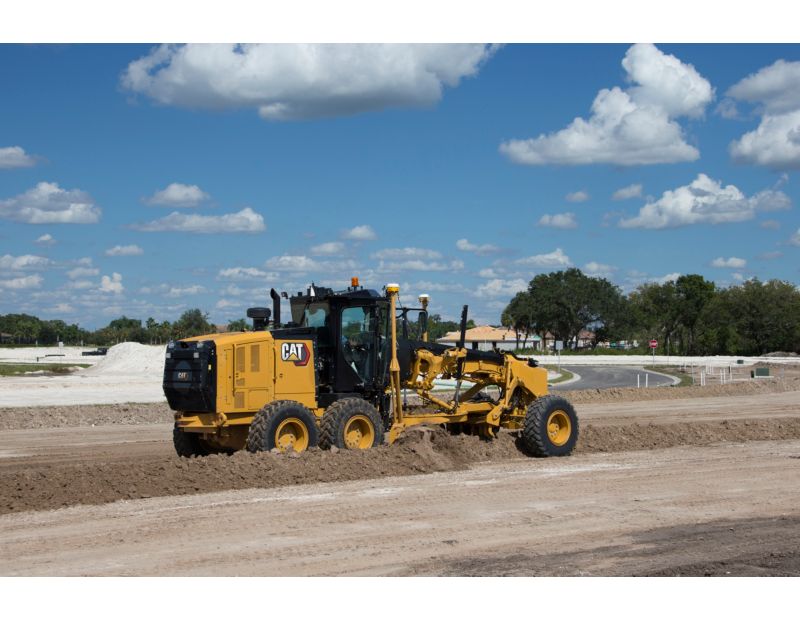

150 Motor Grader -

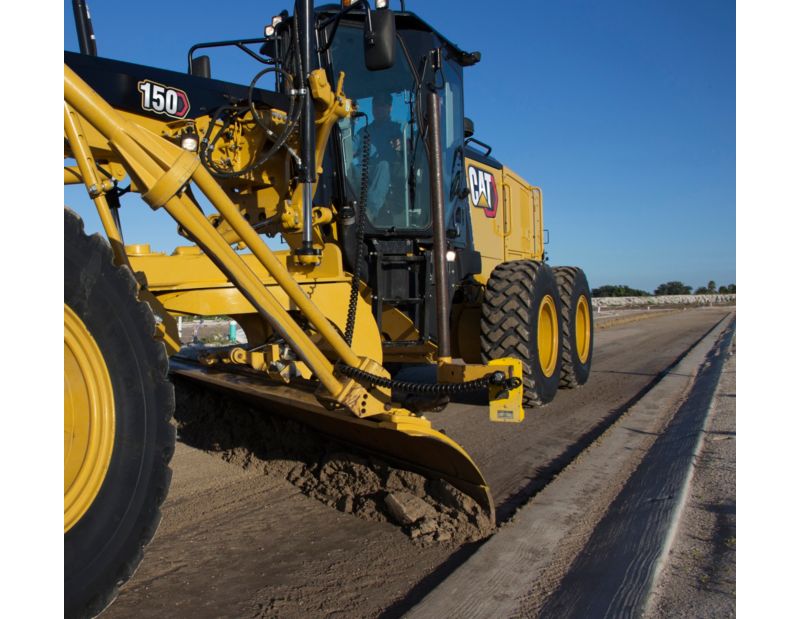

150 Motor Grader -

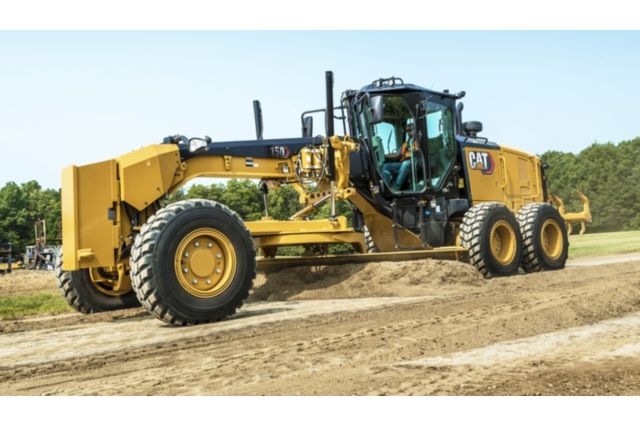

150 Motor Grader -

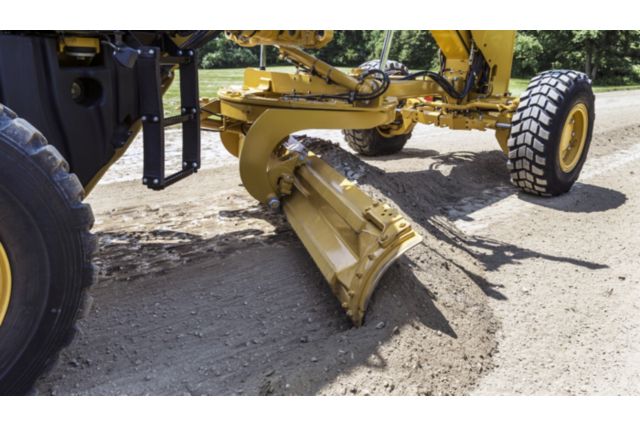

150 Motor Grader -

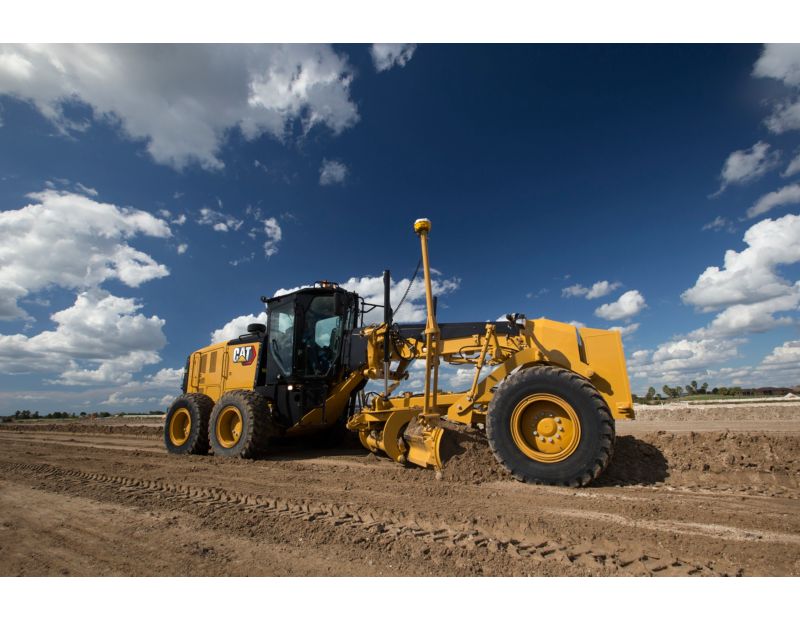

150 Motor Grader -

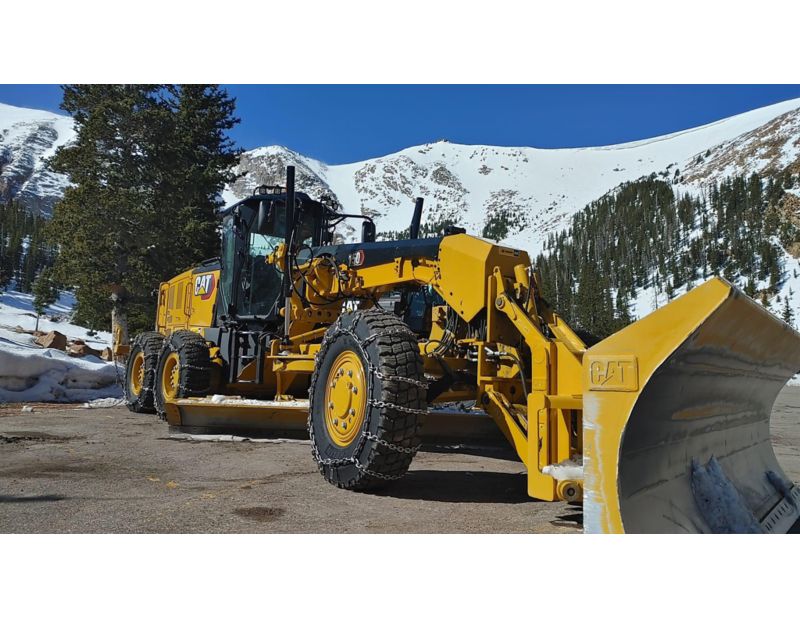

150 Motor Grader in Snow -

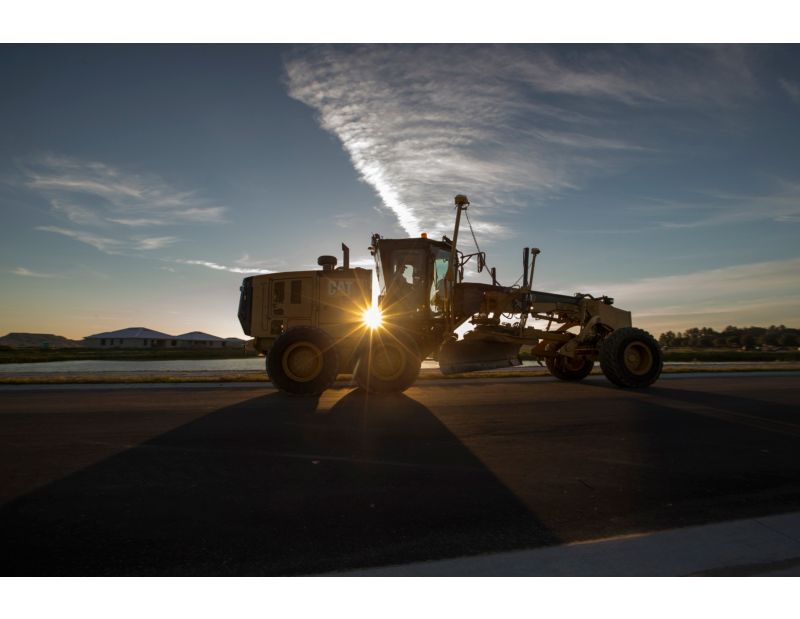

150 in the deser
Videos
360° View
Exterior
360° Exterior view. Double click on the image to zoom in on any area of the product.
Interior
360° interior view. Double click on the image to zoom in on any area of the product.
Features
Latest Features
Cab Modernization
Technology Options
New High Performance Circle
The optional High Performance Circle (HPC) improves machine performance, efficiency, and uptime through increased service intervals and longer life. Meeting grade elevation tolerance in road design efficiently is important to reduce rework on the job. With the HPC, you have greater confidence in meeting grade elevation tolerance design due to reduced wear between circle and drawbar.
Not all features are available in all regions. Please check with your local Cat dealer for specific offering availability in your area. Build Number 15B.
- Continuously improved user interface allows for intuitive navigation, minimizing performance interruption with the easy-to-use 10-inch touchscreen menu.
- Integrated high definition (HD) rear vision camera.
- Display-initiated Remote Flash.
- Operator may choose to have rear vision camera on all the time or have it show in display automatically when machine is put in reverse gears.
- Larger cross slope screen.
- Planned Maintenance (PM) alert sync in display.
- Identify apps quickly with a grid list view, abbreviated app names, and categorized menu options.
- A new notification center keeps important information visible to the operator and displays messages without shrinking the camera view.
- Color coded notifications set critical messages apart from the rest.
Technology Options
- Cat Grade 3D Ready
Cat Grade with 3D for motor graders is a machine integrated grade control system that helps you get to grade faster with more accuracy, efficiency and productivity. Automatic blade control reduces operator inputs and the number of passes to get the job done to save you time and money. - Cross Slope Assist
Cross Slope Assist now includes Position Sensing Shift Cylinder (PSC), E-fence Blade Avoidance, and two IMU sensors to simplify mastless upgrades. It allows the operator to manuall control one end of the moldboard while the system controls the other. - Attachment Ready Option
Attachment Ready Option (ARO) provides sensor-ready swivel mountings for faster aftermarket work tool installation.
New High Performance Circle
The optional High Performance Circle (HPC) improves machine performance, efficiency, and uptime through increased service intervals and longer life. Meeting grade elevation tolerance in road design efficiently is important to reduce rework on the job. With the HPC, you have greater confidence in meeting grade elevation tolerance design due to reduced wear between circle and drawbar.
Not all features are available in all regions. Please check with your local Cat dealer for specific offering availability in your area. Build Number 15B.
Latest Features
Cab Modernization
Technology Options
New High Performance Circle
The optional High Performance Circle (HPC) improves machine performance, efficiency, and uptime through increased service intervals and longer life. Meeting grade elevation tolerance in road design efficiently is important to reduce rework on the job. With the HPC, you have greater confidence in meeting grade elevation tolerance design due to reduced wear between circle and drawbar.
Not all features are available in all regions. Please check with your local Cat dealer for specific offering availability in your area. Build Number 15B.
- Continuously improved user interface allows for intuitive navigation, minimizing performance interruption with the easy-to-use 10-inch touchscreen menu.
- Integrated high definition (HD) rear vision camera.
- Display-initiated Remote Flash.
- Operator may choose to have rear vision camera on all the time or have it show in display automatically when machine is put in reverse gears.
- Larger cross slope screen.
- Planned Maintenance (PM) alert sync in display.
- Identify apps quickly with a grid list view, abbreviated app names, and categorized menu options.
- A new notification center keeps important information visible to the operator and displays messages without shrinking the camera view.
- Color coded notifications set critical messages apart from the rest.
Technology Options
- Cat Grade 3D Ready
Cat Grade with 3D for motor graders is a machine integrated grade control system that helps you get to grade faster with more accuracy, efficiency and productivity. Automatic blade control reduces operator inputs and the number of passes to get the job done to save you time and money. - Cross Slope Assist
Cross Slope Assist now includes Position Sensing Shift Cylinder (PSC), E-fence Blade Avoidance, and two IMU sensors to simplify mastless upgrades. It allows the operator to manuall control one end of the moldboard while the system controls the other. - Attachment Ready Option
Attachment Ready Option (ARO) provides sensor-ready swivel mountings for faster aftermarket work tool installation.
New High Performance Circle
The optional High Performance Circle (HPC) improves machine performance, efficiency, and uptime through increased service intervals and longer life. Meeting grade elevation tolerance in road design efficiently is important to reduce rework on the job. With the HPC, you have greater confidence in meeting grade elevation tolerance design due to reduced wear between circle and drawbar.
Not all features are available in all regions. Please check with your local Cat dealer for specific offering availability in your area. Build Number 15B.
Designed for Operators
- Good visibility is key to safety and efficiency. Angled cab doors, tapered engine enclosure and a sloped rear window make it easy to see the moldboard and tires, as well as behind the machine. The standard rear vision camera further enhances lines of sight all around the machine.
- Experience the most spacious, comfortable cab in the industry.
- Easy-to-learn joystick controls replace levers, so hand and arm movement is reduced, helping reduce operator fatigue for better productivity.
- Industry-exclusive three axis joysticks
Left joystick controls have transmission, gear shifting up and down, and transmission directional control.
Right joystick controls drawbar, circle and moldboard functions as well as electronic throttle control and manual differential lock/unlock. - Joystick follow steer - lean angle mirrors the steer tires' turning angle.
- Friction pack, a brake tensioning system, holds the joystick in position until the operator moves it.
- Cat joystick Motor Graders have industry-exclusive follow steer, which allows the front wheels to follow the joystick input.
- Infinitely variable roller switches control the rear ripper and/or front lift group (when equipped).
- Control switches are in easy reach.
- Updated seat offers softer cushions, three-position tilt and optional heated and heated/cooled cushions.
- Control pods are electronically positioned allowing each operator to set the ideal operating position.
- Multiple isolation mounts reduce sound and vibration for a more relaxed work environment.
- High capacity Heating, Ventilation and Air Conditioning system dehumidifies and pressurizes the cab, circulates fresh air, seals out dust and keeps windows clear.
- Option of choosing AM/FM/Weatherband/Bluetooth® technology or AM/FM/Weatherband/Bluetooth plus Sirius XM radio.
- Electronic Throttle Control helps improve productivity by providing the best match of horsepower and torque for the demands of the application.
- Articulation Return-to-Center automatically returns the machine to a straight frame position from any angle with the touch of a button.
- Select Fine, Normal or Coarse blade lift modulation to best fit application or operator preference.
Designed for Operators
- Good visibility is key to safety and efficiency. Angled cab doors, tapered engine enclosure and a sloped rear window make it easy to see the moldboard and tires, as well as behind the machine. The standard rear vision camera further enhances lines of sight all around the machine.
- Experience the most spacious, comfortable cab in the industry.
- Easy-to-learn joystick controls replace levers, so hand and arm movement is reduced, helping reduce operator fatigue for better productivity.
- Industry-exclusive three axis joysticks
Left joystick controls have transmission, gear shifting up and down, and transmission directional control.
Right joystick controls drawbar, circle and moldboard functions as well as electronic throttle control and manual differential lock/unlock. - Joystick follow steer - lean angle mirrors the steer tires' turning angle.
- Friction pack, a brake tensioning system, holds the joystick in position until the operator moves it.
- Cat joystick Motor Graders have industry-exclusive follow steer, which allows the front wheels to follow the joystick input.
- Infinitely variable roller switches control the rear ripper and/or front lift group (when equipped).
- Control switches are in easy reach.
- Updated seat offers softer cushions, three-position tilt and optional heated and heated/cooled cushions.
- Control pods are electronically positioned allowing each operator to set the ideal operating position.
- Multiple isolation mounts reduce sound and vibration for a more relaxed work environment.
- High capacity Heating, Ventilation and Air Conditioning system dehumidifies and pressurizes the cab, circulates fresh air, seals out dust and keeps windows clear.
- Option of choosing AM/FM/Weatherband/Bluetooth® technology or AM/FM/Weatherband/Bluetooth plus Sirius XM radio.
- Electronic Throttle Control helps improve productivity by providing the best match of horsepower and torque for the demands of the application.
- Articulation Return-to-Center automatically returns the machine to a straight frame position from any angle with the touch of a button.
- Select Fine, Normal or Coarse blade lift modulation to best fit application or operator preference.
Built for Long-Term Production
- Caterpillar designs motor grader frame and drawbar components to give you performance and durability.
- The optional High Performance Circle (HPC) improved machine performance, efficiency, and uptime availability when maintaining the jobsite.
- The standard, one-piece forged steel circle stands up to high stress loads, and a sacrificial wear system helps keep your service time and costs down.
- The drawbar, circle and moldboard make it easy for you to keep the components tight.
- Shims and patented top-adjust wear strips are easy to add or replace, reducing downtime.
- Durable nylon composite wear inserts maximize circle torque and component life.
- Wear strips between the blade mounting group and moldboard can be easily adjusted and replaced.
- Shimless Moldboard Retention System uses vertical and horizontal adjusting screws to keep moldboard wear strips aligned for reduced blade chatter and precise blade control.
- An aggressive blade angle, optimized moldboard curvature and large throat clearance help you work more efficiently by allowing material to roll more freely along the blade.
- Heat-treated rails, hardened cutting edges and end bits, and heavy duty bolts to give you greater moldboard reliability and long service life.
- Link bar allows extreme moldboard positioning for easier bank sloping and ditch cutting/cleaning.
- Proven load-sensing hydraulic system and advanced electro-hydraulics give you superior implement control and responsive performance that makes operator's jobs easier. Continuously matching hydraulic flow/pressure to power demands creates less heat and reduces power consumption.
- Consistent, Predictable Movement - Proportional Priority Pressure-Compensating (PPP-C) valves have different flow rates for the head and rod ends of the cylinder, so you can count on consistent, predictable implement response.
- Balanced Flow - Hydraulic flow is proportioned to give you confidence that all implements will operate simultaneously without slowing the engine or speed of some implements.
- Blade can float freely under its own weight. By floating both cylinders, the blade can follow the contours of the ground. Floating only one cylinder permits the toe of the blade to follow a hard surface while the operator controls the slope with the other lift cylinder.
- Large, separate hydraulic oil supplies prevent cross-contamination and provide proper oil cooling, reducing heat build-up and extending component life.
- Articulation hitch features a large tapered roller bearing to carry loads evenly and smoothly. It is sealed to prevent contamination and a locking pin prevents articulation during service or transport.
- Cat XT™ hose allows high pressures for maximum power and reduced downtime.
Built for Long-Term Production
- Caterpillar designs motor grader frame and drawbar components to give you performance and durability.
- The optional High Performance Circle (HPC) improved machine performance, efficiency, and uptime availability when maintaining the jobsite.
- The standard, one-piece forged steel circle stands up to high stress loads, and a sacrificial wear system helps keep your service time and costs down.
- The drawbar, circle and moldboard make it easy for you to keep the components tight.
- Shims and patented top-adjust wear strips are easy to add or replace, reducing downtime.
- Durable nylon composite wear inserts maximize circle torque and component life.
- Wear strips between the blade mounting group and moldboard can be easily adjusted and replaced.
- Shimless Moldboard Retention System uses vertical and horizontal adjusting screws to keep moldboard wear strips aligned for reduced blade chatter and precise blade control.
- An aggressive blade angle, optimized moldboard curvature and large throat clearance help you work more efficiently by allowing material to roll more freely along the blade.
- Heat-treated rails, hardened cutting edges and end bits, and heavy duty bolts to give you greater moldboard reliability and long service life.
- Link bar allows extreme moldboard positioning for easier bank sloping and ditch cutting/cleaning.
- Proven load-sensing hydraulic system and advanced electro-hydraulics give you superior implement control and responsive performance that makes operator's jobs easier. Continuously matching hydraulic flow/pressure to power demands creates less heat and reduces power consumption.
- Consistent, Predictable Movement - Proportional Priority Pressure-Compensating (PPP-C) valves have different flow rates for the head and rod ends of the cylinder, so you can count on consistent, predictable implement response.
- Balanced Flow - Hydraulic flow is proportioned to give you confidence that all implements will operate simultaneously without slowing the engine or speed of some implements.
- Blade can float freely under its own weight. By floating both cylinders, the blade can follow the contours of the ground. Floating only one cylinder permits the toe of the blade to follow a hard surface while the operator controls the slope with the other lift cylinder.
- Large, separate hydraulic oil supplies prevent cross-contamination and provide proper oil cooling, reducing heat build-up and extending component life.
- Articulation hitch features a large tapered roller bearing to carry loads evenly and smoothly. It is sealed to prevent contamination and a locking pin prevents articulation during service or transport.
- Cat XT™ hose allows high pressures for maximum power and reduced downtime.
Technology that Gets Work Done
Cat technologies offer key improvements in equipment management, productivity, and safety.
Equipment Management
Increase uptime and reduce operating costs.
Productivity
Monitor production and manage job site efficiency.
Safety
Enhance job site awareness to keep your people and equipment safe.
Featured Cat Technologies
Cat Grade 3D Ready
Cat Grade with 3D for motor graders is a machine integrated grade control system that helps you get to grade faster with more accuracy, efficiency and productivity. Automatic blade control reduces operator inputs and the number of passes to get the job done to save you time and money. E-fence is fully calibrated from the factory.
Cross Slope Assist
Cross Slope Assist now includes Position Sensing Shift Cylinder (PSC), E-fence Blade Avoidance, and two IMU sensors to simplify mastless upgrades. It allows the operator to manual control one end of the moldboard while the system controls the other.
Attachment Ready Option
Attachment Ready Option (ARO) provides sensor-ready swivel mountings for faster aftermarket work tool installation.
Using the data from technology equipped machines, get more information and insight into equipment and operations.
Electronic Technician (Cat ET)
Allows service technicians access to stored diagnostic data and configure machine parameters through the Cat Data Link.
Low Battery Elevated Idle
Raises idle speed when low system voltage is detected, ensuring adequate system voltage and improving battery reliability.
Automatic Engine Deration
Gain protection for the engine by automatically lowering engine torque output and alerting the operator if critical conditions are detected.
Production Measurement System
Manage your fleet of machines while reducing fuel burn with Cat Production Measurement System option. The Efficiency Coach and Application Segmentation work together to monitor operators and machines simultaneously. Measure your jobsite’s efficiency and productivity from anywhere on the website.
Product Link and VisionLinkTM
Link technologies that provide wireless capability to machines enabling two-way transfer of information collected by on-board sensors, control modules, and other Cat technologies using off-board apps, such as Cat VisionLink® software.
Cat Product Link/VisionLink is deeply integrated, helping take guesswork out of equipment management. Easy access to timely information like machine location, hours, fuel usage, idle time and event codes via the online VisionLink user interface helps effectively manage fleet and lower operating costs.
Grade technologies combine digital design data, in-cab guidance, and automatic blade controls to enhance grading accuracy, reduce rework, and lower costs related to production earthmoving and rough, fine and finish grade applications.
Equipment Management
Increase uptime and reduce operating costs.
Productivity
Monitor production and manage job site efficiency.
Safety
Enhance job site awareness to keep your people and equipment safe.
Featured Cat Technologies
Cat Grade 3D Ready
Cat Grade with 3D for motor graders is a machine integrated grade control system that helps you get to grade faster with more accuracy, efficiency and productivity. Automatic blade control reduces operator inputs and the number of passes to get the job done to save you time and money. E-fence is fully calibrated from the factory.
Cross Slope Assist
Cross Slope Assist now includes Position Sensing Shift Cylinder (PSC), E-fence Blade Avoidance, and two IMU sensors to simplify mastless upgrades. It allows the operator to manual control one end of the moldboard while the system controls the other.
Attachment Ready Option
Attachment Ready Option (ARO) provides sensor-ready swivel mountings for faster aftermarket work tool installation.
Using the data from technology equipped machines, get more information and insight into equipment and operations.
Electronic Technician (Cat ET)
Allows service technicians access to stored diagnostic data and configure machine parameters through the Cat Data Link.
Low Battery Elevated Idle
Raises idle speed when low system voltage is detected, ensuring adequate system voltage and improving battery reliability.
Automatic Engine Deration
Gain protection for the engine by automatically lowering engine torque output and alerting the operator if critical conditions are detected.
Production Measurement System
Manage your fleet of machines while reducing fuel burn with Cat Production Measurement System option. The Efficiency Coach and Application Segmentation work together to monitor operators and machines simultaneously. Measure your jobsite’s efficiency and productivity from anywhere on the website.
Product Link and VisionLinkTM
Link technologies that provide wireless capability to machines enabling two-way transfer of information collected by on-board sensors, control modules, and other Cat technologies using off-board apps, such as Cat VisionLink® software.
Cat Product Link/VisionLink is deeply integrated, helping take guesswork out of equipment management. Easy access to timely information like machine location, hours, fuel usage, idle time and event codes via the online VisionLink user interface helps effectively manage fleet and lower operating costs.
Grade technologies combine digital design data, in-cab guidance, and automatic blade controls to enhance grading accuracy, reduce rework, and lower costs related to production earthmoving and rough, fine and finish grade applications.
Technology that Gets Work Done
Cat technologies offer key improvements in equipment management, productivity, and safety.
Equipment Management
Increase uptime and reduce operating costs.
Productivity
Monitor production and manage job site efficiency.
Safety
Enhance job site awareness to keep your people and equipment safe.
Featured Cat Technologies
Cat Grade 3D Ready
Cat Grade with 3D for motor graders is a machine integrated grade control system that helps you get to grade faster with more accuracy, efficiency and productivity. Automatic blade control reduces operator inputs and the number of passes to get the job done to save you time and money. E-fence is fully calibrated from the factory.
Cross Slope Assist
Cross Slope Assist now includes Position Sensing Shift Cylinder (PSC), E-fence Blade Avoidance, and two IMU sensors to simplify mastless upgrades. It allows the operator to manual control one end of the moldboard while the system controls the other.
Attachment Ready Option
Attachment Ready Option (ARO) provides sensor-ready swivel mountings for faster aftermarket work tool installation.
Using the data from technology equipped machines, get more information and insight into equipment and operations.
Electronic Technician (Cat ET)
Allows service technicians access to stored diagnostic data and configure machine parameters through the Cat Data Link.
Low Battery Elevated Idle
Raises idle speed when low system voltage is detected, ensuring adequate system voltage and improving battery reliability.
Automatic Engine Deration
Gain protection for the engine by automatically lowering engine torque output and alerting the operator if critical conditions are detected.
Production Measurement System
Manage your fleet of machines while reducing fuel burn with Cat Production Measurement System option. The Efficiency Coach and Application Segmentation work together to monitor operators and machines simultaneously. Measure your jobsite’s efficiency and productivity from anywhere on the website.
Product Link and VisionLinkTM
Link technologies that provide wireless capability to machines enabling two-way transfer of information collected by on-board sensors, control modules, and other Cat technologies using off-board apps, such as Cat VisionLink® software.
Cat Product Link/VisionLink is deeply integrated, helping take guesswork out of equipment management. Easy access to timely information like machine location, hours, fuel usage, idle time and event codes via the online VisionLink user interface helps effectively manage fleet and lower operating costs.
Grade technologies combine digital design data, in-cab guidance, and automatic blade controls to enhance grading accuracy, reduce rework, and lower costs related to production earthmoving and rough, fine and finish grade applications.
Equipment Management
Increase uptime and reduce operating costs.
Productivity
Monitor production and manage job site efficiency.
Safety
Enhance job site awareness to keep your people and equipment safe.
Featured Cat Technologies
Cat Grade 3D Ready
Cat Grade with 3D for motor graders is a machine integrated grade control system that helps you get to grade faster with more accuracy, efficiency and productivity. Automatic blade control reduces operator inputs and the number of passes to get the job done to save you time and money. E-fence is fully calibrated from the factory.
Cross Slope Assist
Cross Slope Assist now includes Position Sensing Shift Cylinder (PSC), E-fence Blade Avoidance, and two IMU sensors to simplify mastless upgrades. It allows the operator to manual control one end of the moldboard while the system controls the other.
Attachment Ready Option
Attachment Ready Option (ARO) provides sensor-ready swivel mountings for faster aftermarket work tool installation.
Using the data from technology equipped machines, get more information and insight into equipment and operations.
Electronic Technician (Cat ET)
Allows service technicians access to stored diagnostic data and configure machine parameters through the Cat Data Link.
Low Battery Elevated Idle
Raises idle speed when low system voltage is detected, ensuring adequate system voltage and improving battery reliability.
Automatic Engine Deration
Gain protection for the engine by automatically lowering engine torque output and alerting the operator if critical conditions are detected.
Production Measurement System
Manage your fleet of machines while reducing fuel burn with Cat Production Measurement System option. The Efficiency Coach and Application Segmentation work together to monitor operators and machines simultaneously. Measure your jobsite’s efficiency and productivity from anywhere on the website.
Product Link and VisionLinkTM
Link technologies that provide wireless capability to machines enabling two-way transfer of information collected by on-board sensors, control modules, and other Cat technologies using off-board apps, such as Cat VisionLink® software.
Cat Product Link/VisionLink is deeply integrated, helping take guesswork out of equipment management. Easy access to timely information like machine location, hours, fuel usage, idle time and event codes via the online VisionLink user interface helps effectively manage fleet and lower operating costs.
Grade technologies combine digital design data, in-cab guidance, and automatic blade controls to enhance grading accuracy, reduce rework, and lower costs related to production earthmoving and rough, fine and finish grade applications.
Build-In Safety Features
- Operator Presence Monitor keeps the parking brake engaged and hydraulic implements disabled until the operator is seated and the machine is ready for operation.
- Speed Sensitive Steering lessens steering sensitivity as ground speed increases for greater operator confidence and control.
- The standard Secondary Steering System's electric hydraulic pump automatically engages in case of a drop in steering pressure to ensure operator can steer the machine to a stop.
- Hydraulic lockout disables all implement functions while still providing machine steering control. Especially useful while roading.
- Brakes are located at each tandem wheel to eliminate braking loads on the power train. Redundant brake systems utilize accumulators to enable stopping in case of machine failure.
- Perforated steel tandem walkways and convenient grab rails provide a sturdy platform when moving on, off and around the machine.
- Circle Drive Slip Clutch protects the drawbar, circle and moldboard from shock loads if the blade encounters an immovable object and also reduces the possibility of abrupt directional changes in poor traction conditions.
- Blade Lift Accumulators help absorb impact loads by allowing vertical blade travel. This optional feature reduces wear and impact loading for enhanced operator safety.
- Safety Features -
- Optional rearview camera with in-cab monitor
- New, optional seat belt indicator light reminds operator to fasten safety belt
- Grouped, ground level service points
- Laminated front window glass
- Optional LED Lighting
- Ground-level electrical disconnect switch
- Ground-level engine shutoff switch
- Anti-glare paint eases night operation
- Optional front and rear fenders
Build-In Safety Features
- Operator Presence Monitor keeps the parking brake engaged and hydraulic implements disabled until the operator is seated and the machine is ready for operation.
- Speed Sensitive Steering lessens steering sensitivity as ground speed increases for greater operator confidence and control.
- The standard Secondary Steering System's electric hydraulic pump automatically engages in case of a drop in steering pressure to ensure operator can steer the machine to a stop.
- Hydraulic lockout disables all implement functions while still providing machine steering control. Especially useful while roading.
- Brakes are located at each tandem wheel to eliminate braking loads on the power train. Redundant brake systems utilize accumulators to enable stopping in case of machine failure.
- Perforated steel tandem walkways and convenient grab rails provide a sturdy platform when moving on, off and around the machine.
- Circle Drive Slip Clutch protects the drawbar, circle and moldboard from shock loads if the blade encounters an immovable object and also reduces the possibility of abrupt directional changes in poor traction conditions.
- Blade Lift Accumulators help absorb impact loads by allowing vertical blade travel. This optional feature reduces wear and impact loading for enhanced operator safety.
- Safety Features -
- Optional rearview camera with in-cab monitor
- New, optional seat belt indicator light reminds operator to fasten safety belt
- Grouped, ground level service points
- Laminated front window glass
- Optional LED Lighting
- Ground-level electrical disconnect switch
- Ground-level engine shutoff switch
- Anti-glare paint eases night operation
- Optional front and rear fenders
Performance and Productivity
- Cat C9.3 engine delivers the performance needed to maintain consistent grading speeds for maximum productivity.
- Latest engine technology optimize productivity, fuel efficiency, reliability, life and minimize emissions.
- Hydraulic demand fan automatically adjusts speed according to engine cooling requirements. When cooling demand is reduced, you benefit from more power to the ground and improved fuel efficiency.
- Optional reversing fan clears debris on-the-go.
- Engine Idle Shutdown Timer is software-enabled by your Cat dealer to shut down the engine after a set period of time to save you fuel and help reduce emissions.
- Motor Graders give you efficiency and longevity in your most demanding applications.
- Standard Automatic Differential Lock/Unlock unlocks the differential during a turn and re-locks when straight for easier operation and to help protect the power train.
- Full Electronic Clutch Pressure Control system optimizes inching modulation for smooth shifts and directional changes, reducing stress on gears.
- Programmable AutoShift option simplifies operation by allowing the operator to program the transmission to shift at optimal points to match your application.
- Eco mode can be engaged for up to 10% fuel savings depending upon application.
- Power Shift Countershaft Transmission is matched to the Cat engine to maximize power to the ground.
- Wide operating gear range for maximum productivity.
- Engine Over-Speed Protection prevents downshifting until an acceptable safe travel speed has been established.
- Sealed spindle on tandem drive machines keeps front axle bearings lubricated and protected from contaminants. The Cat “Live Spindle” design places the larger tapered roller bearing on the outside, where the load is greater, extending bearing life.
- Bolt-on modular rear axle improves serviceability and contamination control with easy access to differential components.
- Oil-bath, multi-disc service brakes are hydraulically actuated for smooth, predictable braking and lower operating costs. Brakes are located at each tandem wheel and have a large total brake surface area to give you dependable stopping power and longer life.
- Emissions technology is transparent with no action required from the operator or need to stop. Regeneration runs automatically at cold start-up and, if needed, in the background while you work.
- Reaching Tier 4 Final standards only required one additional system to the proven Cat emission strategy - Selective Catalytic Reduction (SCR).
- SCR utilizes Diesel Exhaust Fluid (DEF), conveniently filled from ground level when re-fueling.
- A gauge on the dash shows your fluid level.
- At shutdown, a pump automatically purges the DEF lines.
- If the engine/aftertreatment temperatures are high, a Delayed Engine Shutdown will activate automatically to cool the machine and then purge the lines.
Performance and Productivity
- Cat C9.3 engine delivers the performance needed to maintain consistent grading speeds for maximum productivity.
- Latest engine technology optimize productivity, fuel efficiency, reliability, life and minimize emissions.
- Hydraulic demand fan automatically adjusts speed according to engine cooling requirements. When cooling demand is reduced, you benefit from more power to the ground and improved fuel efficiency.
- Optional reversing fan clears debris on-the-go.
- Engine Idle Shutdown Timer is software-enabled by your Cat dealer to shut down the engine after a set period of time to save you fuel and help reduce emissions.
- Motor Graders give you efficiency and longevity in your most demanding applications.
- Standard Automatic Differential Lock/Unlock unlocks the differential during a turn and re-locks when straight for easier operation and to help protect the power train.
- Full Electronic Clutch Pressure Control system optimizes inching modulation for smooth shifts and directional changes, reducing stress on gears.
- Programmable AutoShift option simplifies operation by allowing the operator to program the transmission to shift at optimal points to match your application.
- Eco mode can be engaged for up to 10% fuel savings depending upon application.
- Power Shift Countershaft Transmission is matched to the Cat engine to maximize power to the ground.
- Wide operating gear range for maximum productivity.
- Engine Over-Speed Protection prevents downshifting until an acceptable safe travel speed has been established.
- Sealed spindle on tandem drive machines keeps front axle bearings lubricated and protected from contaminants. The Cat “Live Spindle” design places the larger tapered roller bearing on the outside, where the load is greater, extending bearing life.
- Bolt-on modular rear axle improves serviceability and contamination control with easy access to differential components.
- Oil-bath, multi-disc service brakes are hydraulically actuated for smooth, predictable braking and lower operating costs. Brakes are located at each tandem wheel and have a large total brake surface area to give you dependable stopping power and longer life.
- Emissions technology is transparent with no action required from the operator or need to stop. Regeneration runs automatically at cold start-up and, if needed, in the background while you work.
- Reaching Tier 4 Final standards only required one additional system to the proven Cat emission strategy - Selective Catalytic Reduction (SCR).
- SCR utilizes Diesel Exhaust Fluid (DEF), conveniently filled from ground level when re-fueling.
- A gauge on the dash shows your fluid level.
- At shutdown, a pump automatically purges the DEF lines.
- If the engine/aftertreatment temperatures are high, a Delayed Engine Shutdown will activate automatically to cool the machine and then purge the lines.
Top-Tier Service and Support
- Cat motor graders are designed to help you increase uptime and reduce costs.
- Grouped service points and extended service intervals save maintenance time.
- New, optional LED lights in the left hand compartments make it more convenient to service the machine in low light.
- Cat dealers are second to none. From machine selection and purchase to maintenance support, operator training and rebuilds, Cat dealers have the experience and capabilities to help keep you up and running at peak performance.
Top-Tier Service and Support
- Cat motor graders are designed to help you increase uptime and reduce costs.
- Grouped service points and extended service intervals save maintenance time.
- New, optional LED lights in the left hand compartments make it more convenient to service the machine in low light.
- Cat dealers are second to none. From machine selection and purchase to maintenance support, operator training and rebuilds, Cat dealers have the experience and capabilities to help keep you up and running at peak performance.
Sustainability
- The Cat® C9.3 engine meets U.S. EPA Tier 4 Final and EU Stage V emission standards.
- Cat diesel engines are required to use ULSD (ultra-low sulfur diesel fuel with 15 ppm of sulfur or less) or ULSD blended with the following lower-carbon intensity fuels up to: 20% biodiesel FAME (fatty acid methyl ester) * or 100% renewable diesel, HVO (hydrotreated vegetable oil) and GTL (gas-to-liquid) fuels. Refer to guidelines for successful application. Please consult your Cat dealer or “Caterpillar Machine Fluids Recommendations” (SEBU6250) for details.
- Engine Idle Shutdown Timer reduces fuel burn, greenhouse gas emissions and unnecessary idle time by shutting down the machine after a pre-set idling period.
- Cat® Grade helps reduce fuel burn and greenhouse gas emissions by enabling you to achieve grade faster and more accurately by automating blade actions.
- Extended maintenance intervals not only reduce downtime but decrease the amount of fluid and filters that are replaced over the life of the machine.
- VisionLink® displays the CO2 emissions for monitored assets, calculated by fuel type for the Runtime Fuel Burned each day in a selected date range.
- Don't waste fuel idling. Cat VisionLink® online fleet monitoring helps you manage idle time and reduce fuel burn and greenhouse gas emissions.
- Cat® Reman parts are a sustainable choice. New Cat parts are designed with the potential to have more than one life, so Cat Reman parts are truly remanufactured — not just repaired, rebuilt or reconditioned. Because the process ensures the latest design changes are incorporated into Cat Reman parts, you get like new quality and outstanding performance at lower cost.
Sustainability
- The Cat® C9.3 engine meets U.S. EPA Tier 4 Final and EU Stage V emission standards.
- Cat diesel engines are required to use ULSD (ultra-low sulfur diesel fuel with 15 ppm of sulfur or less) or ULSD blended with the following lower-carbon intensity fuels up to: 20% biodiesel FAME (fatty acid methyl ester) * or 100% renewable diesel, HVO (hydrotreated vegetable oil) and GTL (gas-to-liquid) fuels. Refer to guidelines for successful application. Please consult your Cat dealer or “Caterpillar Machine Fluids Recommendations” (SEBU6250) for details.
- Engine Idle Shutdown Timer reduces fuel burn, greenhouse gas emissions and unnecessary idle time by shutting down the machine after a pre-set idling period.
- Cat® Grade helps reduce fuel burn and greenhouse gas emissions by enabling you to achieve grade faster and more accurately by automating blade actions.
- Extended maintenance intervals not only reduce downtime but decrease the amount of fluid and filters that are replaced over the life of the machine.
- VisionLink® displays the CO2 emissions for monitored assets, calculated by fuel type for the Runtime Fuel Burned each day in a selected date range.
- Don't waste fuel idling. Cat VisionLink® online fleet monitoring helps you manage idle time and reduce fuel burn and greenhouse gas emissions.
- Cat® Reman parts are a sustainable choice. New Cat parts are designed with the potential to have more than one life, so Cat Reman parts are truly remanufactured — not just repaired, rebuilt or reconditioned. Because the process ensures the latest design changes are incorporated into Cat Reman parts, you get like new quality and outstanding performance at lower cost.
Specifications
-
Engine
Spec Value Net Power Range (Tier 4) 200 hp Engine Model Cat® C9.3 Bore 4.5 in Stroke 5.9 in Speed at Rated Power 2,000 rpm VHP Plus - Gear - Net Power - Forward 2nd 210 hp VHP Plus - Gear - Net Power - Forward 3rd 220 hp Emissions U.S. EPA Tier 4 Final/EU Stage V VHP Plus - Gear - Net Power - Forward 6th 241 hp VHP Plus - Gear - Net Power - Forward 4th 231 hp VHP Plus Range - Net 149-188 kW (200-252 hp) VHP Plus - Gear - Net Power - Forward 5th 236 hp VHP Plus - Gear - Net Power - Reverse 1st 200 hp VHP Plus - Gear - Net Power - Forward 1st 200 hp VHP Plus - Gear - Net Power - Reverse 2nd 210 hp Maximum Torque - VHP Plus 920 lb/ft VHP Plus Range - Net - Metric 149-188 kW (202-255 hp) Base Power (1st Gear) - Net - Metric 202 hp VHP Plus - Gear - Net Power - Forward 7th 247 hp Torque Rise 39% VHP Plus - Gear - Net Power - Reverse 3rd-6th 220 hp High Ambient - Fan Speed - Standard 1,400 rpm Standard Capability 109 °F VHP Plus - Gear - Net Power - Forward 8th 252 hp Displacement 567.5 in³ Number of Cylinders 6 Derating Altitude 10000 ft High Ambient - Fan Speed - Maximum 1,550 rpm High Ambient - Fan Speed - Minimum 500 rpm High - Ambient Capability 122 °F -
Weights
Spec Value Operating Weight - Typically Equipped 43950 lb Gross Vehicle Weight - Maximum - Front Axle 17075 lb Gross Vehicle Weight - Maximum - Rear Axle 38069 lb Operating Weight - Typically Equipped - Front Axle 12549 lb Operating Weight - Typically Equipped - Rear Axle 31401 lb Gross Vehicle Weight - Base - Front Axle 9601 lb Gross Vehicle Weight - Base - Rear Axle 28590 lb Gross Vehicle Weight - Maximum - Total 55144 lb Gross Vehicle Weight - Base - Total 38191 lb Operating Weight - Typically Equipped - Total 43950 lb -
Power Train
Spec Value Forward/Reverse Gears 8 Forward/6 Reverse Transmission APECS, Direct Drive, Powershift Brakes - Service Multiple Oil Disc Brakes - Service - Surface Area 3565 in² Brakes - Parking Multiple Oil Disc Brakes - Secondary Dual Circuit -
Moldboard
Spec Value Blade Width 12 ft Moldboard - Height 24 in Moldboard - Thickness 0.87 in Arc Radius 16.3 in Throat Clearance 6.5 in Cutting Edge Width 6 in Cutting Edge Thickness 0.6 in End Bit - Width 6 in End Bit - Thickness 0.6 in Blade Pull - Base GVW 25732 lb Blade Pull - Maximum GVW 34262 lb Blade Down Pressure - Base GVW 16480 lb Blade Down Pressure - Maximum GVW 29308 lb Moldboard - Blade Width 12 ft -
Hydraulic System
Spec Value Circuit Type Parallel Pump Type Variable Piston Pump Output 55.7 gal/min Maximum System Pressure 3500 psi Reservoir Tank Capacity 16.9 gal (US) Standby Pressure 885 psi -
Operating Specifications
Spec Value Top Speed - Forward 29 mile/h Top Speed - Reverse 23 mile/h Turning Radius - Outside Front Tires 25.59 ft Steering Range - Left/Right 50° Articulation Angle - Left/Right 20° Forward - 1st 2.5 mile/h Forward - 2nd 3.4 mile/h Forward - 3rd 5 mile/h Forward - 4th 6.9 mile/h Forward - 5th 10.6 mile/h Forward - 6th 14.5 mile/h Forward - 7th 19.9 mile/h Forward - 8th 29 mile/h Reverse - 1st 2 mile/h Reverse - 2nd 3.7 mile/h Reverse - 3rd 5.4 mile/h Reverse - 4th 8.4 mile/h Reverse - 5th 15.7 mile/h Reverse - 6th 23 mile/h -
Service Refill
Spec Value Fuel Capacity 104 gal (US) Cooling System 15 gal (US) Hydraulic System - Total 26.4 gal (US) Hydraulic System - Tank 16.9 gal (US) Diesel Exhaust Fluid 5.8 gal (US) Transmission - Differential - Final Drives 18.5 gal (US) Engine Oil 7.9 gal (US) Tandem Housing - Each 20 gal (US) Front Wheel Spindle Bearing Housing 0.13 gal (US) Circle Drive Housing 1.8 gal (US) -
Frame
Spec Value Drawbar - Width 3 in Circle - Diameter 60.2 in Circle - Blade Beam Thickness 1.6 in Drawbar - Height 6 in Front Frame Structure - Width 12 in Front Frame Structure - Height 12.6 in Circle - Height 5.4 in Drawbar - Thickness 0.5 in Front-Top/Bottom Plate - Width 12 in Front-Top/Bottom Plate - Thickness 0.87 in Front Axle - Height to Center 23.5 in Front Axle - Wheel Lean - Left/Right 18° Front Axle - Total Oscillation per Side 32° -
Tandems
Spec Value Height 19.9 in Width 7.9 in Sidewall Thickness - Inner 0.63 in Sidewall Thickness - Outer 0.71 in Drive Chain Pitch 2 in Wheel Axle Spacing 60 in Tandem Oscillation - Front Up 15° Tandem Oscillation - Front Down 25° -
Blade Range
Spec Value Circle Centershift - Right 28.7 in Circle Centershift - Left 27.4 in Moldboard Sideshift - Right 26 in Moldboard Sideshift - Left 20.1 in Maximum Blade Position Angle 90° Blade Tip Range - Forward 40° Blade Tip Range - Backward 5° Maximum Shoulder Reach Outside of Tires - Right 77.9 in Maximum Shoulder Reach Outside of Tires - Left 70.5 in Maximum Lift Above Ground 18.9 in Maximum Depth of Cut 28.1 in -
Ripper
Spec Value Ripping Depth - Maximum 16.8 in Ripper Shank Holder Spacing 21 in Ripper Shank Holders 5 Penetration Force 20812 lb Pry-Out Force 27794 lb Machine Length Increase, Beam Raised 40.6 in -
Scarifier
Spec Value Rear - Scarifying Depth, Maximum 16.8 in Front, V-Type, 5 or 11 Tooth - Scarifier Shank Holder Spacing 4.6 in Mid, V-Type - Scarifier Shank Holder Spacing 4.6 in Mid, V-Type - Scarifier Shank Holders 11 Front, V-Type, 5 or 11 Tooth - Scarifier Shank Holders 5 or 11 Front, V-Type, 5 or 11 Tooth - Working Width 40.6 in Front, V-Type - Working Width 47.4 in Front, V-Type, 5 or 11 Tooth - Scarifying Depth, Maximum 18.4 in Mid, V-Type - Scarifying Depth, Maximum 11.5 in Mid, V-Type - Working Width 46.6 in Rear - Working Width 84 in Rear - Scarifier Shank Holders 9 Rear - Scarifier Shank Holder Spacing 10.5 in -
Dimensions
Spec Value Height - Top of Cab 130 in Length - Counterweight to Ripper 399 in Width - Outside Front Tires 98.9 in Length - Front Axle to Mid Tandem 241 in Length - Front Tire to Rear of Machine 351 in Length - Front Axle to Moldboard 100 in Length - Between Tandem Axles 60 in Width - Outside Rear Tires 98.9 in Width - Tire Center Lines 84.3 in Height - Front Axle Center 23.5 in Height - Exhaust Stack 128 in Height - Top of Cylinders 120 in Ground Clearance - Rear Axle 13.3 in -
Standards
Spec Value Brakes ISO 3450 Steering ISO 5010 ROPS/FOPS ISO 3471/ISO 3449 Sound ISO 6394; ISO 6395 -
Air Conditioning System
Spec Value Air Conditioning The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a or R1234yf. See the label or instruction manual for identification of the gas. - If equipped with R134a (Global Warming Potential = 1430), the system contains 1.9 kg (4.2 lb) of refrigerant which has a CO2 equivalent of 2.717 metric tonnes (2.994 tons).
Standard Equipment
NOTE
- Standard and optional equipment may vary. Consult your Cat dealer for details.
POWER TRAIN
- Air cleaner, dual stage, dry type, diesel, with automatic engine derate and automatic dust ejector, service indicator through Cat Messenger
- Air-to-air after cooler (ATAAC)
- Belt, serpentine, automatic tensioner
- Brakes, oil disc, four-wheel, hydraulic
- Demand fan, hydraulic, swing-out
- Diesel exhaust fluid tank, 22.0 L (5.8 gal) ground level access, and sediment drain
- Differential Lock/Unlock, Automatic
- Drain, engine oil, ecology
- Economy mode
- Electronic over speed protection
- Engine, C9.3 U.S. EPA Tier 4 Final/EU Stage V emission standards
- Fuel tank, 394 L (104 gal), ground level access and sediment drain
- Parking brake - multi-disc, sealed, oil-cooled
- Priming pump, fuel
- Rear axle, modular
- Sediment drain, fuel tank
- Tandem drive
- Transmission, 8F/6R, powershift, direct drive, Advanced Productivity Electronic Control Strategy (APECS)
ELECTRICAL
- Alarm, back up
- Alternator, 150 ampere, sealed
- Batteries, maintenance free, heavy duty, 1125 CCA
- Breaker panel, ground accessible
- Cab harness and electrical hydraulic valves
- Electrical system, 24V
- Grade Control Ready - Cab harness, software, electrical hydraulic valves, bosses and brackets
- Lights, roof-mounted roading, reversing, LED stop and tail
- Product Link
- Starter, electric
OPERATOR ENVIRONMENT
- Accelerator
- Air conditioning with heater
- Arm and wrist rest, electronically adjustable
- Articulation, automatic Return-to-Center
- Cat Messenger operator information system
- Centershift pin indicator
- Coat hook
- Cup holder
- Display, digital speed and gear
- Doors, left and right side with wiper
- Gauge, machine level
- Gauge cluster (analog) - fuel, articulation, engine coolant temp, engine RPM, hydraulic oil temp, regen, DEF
- Hour meter, digital
- Joystick hydraulic controls right/left blade lift with float position, circle drive, blade sideshift and tip, centershift, front wheel lean, articulation and power steering
- Joystick, adjustable armrests
- Joystick gear selection
- Joystick hydraulic power steering
- Ladders, cab, left and right side
- Lights, night time cab
- Mirror, inside rearview, wide angle
- Power port, 12V
- Radio Ready, Entertainment
- ROPS cab, sound suppressed 70 dB(A)
- Seat, cloth-covered, comfort suspension
- Seat belt, retractable 76 mm (3 in)
- Storage area for cooler/lunchbox
- Throttle control, electronic
- Windows, laminated glass: - fixed front with intermittent wiper - door with intermittent wipers (3)
- Windows: tempered: - left and right side wipers - rear and intermittent wiper
FLUIDS
- Antifreeze
- Extended Life Coolant to -35° C (-30° F)
TIRES, RIMS AND WHEELS
- Partial allowance for tires on 254 — 607 mm (10 — 24 in) multi-piece rims is included in the base machine price and weight
OTHER STANDARD EQUIPMENT
- Accumulators, brake, dual certified
- Anti-glare paint
- Bumper, rear, integrated with hitch
- CD ROM Parts Book
- Clutch, circle drive slip
- Cutting edges: - 152 — 16 mm (6 — 5/8 in) - curved DH-2 steel - 19 mm (3/4 in) mounting bolts
- Doors (3), engine compartment, locking
- Drawbar - 6 shoes, replaceable wear strips
- Electrical hydraulic valves, hydraulic lines for base 8 functions
- Endbits: - 16 mm (5/8 in) DH-2 steel - 19 mm (3/4 in) mounting bolts
- Fluid check, ground level
- Frame, articulated, with safety lock
- Ground level engine shutdown
- Hammer (emergency exit)
- Horn, electric
- Hydraulic lines for base functions
- Lockout, hydraulic implement (for roading and servicing)
- Moldboard
- Mounting, cab roof accessories
- Pump, hydraulic, high capacity, 98 cm³ (6 in³)
- Radiator, cleanout access (both sides with swing doors)
- Secondary steering
- Serviceability, LH side
- S·O·S„ ports: engine, hydraulic, transmission, coolant, fuel
- Tandem walkway/guards
- Tool box
Optional Equipment
NOTE
- Standard and optional equipment may vary. Consult your Cat dealer for details.
ELECTRICAL
- Alternator, 280 ampere
- Batteries: extreme duty, 1,400 CCA
- Lights: Headlights, high
- Lights: Headlights, low
- Lights: Working lights, basic
- Lights: Working lights, plus, LED
- Lights: Warning: beacon or strobe
- Lights: Mounting for warning light
GUARDS
- Articulation guard
- Fenders, front
- Fenders, rear
- Front axle guard
- Sound suppression (bottom)
- Sound suppression (enclosure)
- Transmission
OPERATOR ENVIRONMENT
- Mirrors, outside: heated 24V
- Mirrors, outside: mounted
- Comfort Plus Arrangement
- Comfort Premium Arrangement
POWER TRAIN
- All Wheel Drive
- Precleaner, snow
- Starter, extreme duty, 1,000 Amps
- Transmission, autoshift
OTHER ATTACHMENTS
- Attachment Ready Option (ARO)
- Cross Slope
- Accumulators, blade lift
- Camera, rearview
- Cat Product Link 321SR
- Cat Product Link 522
- Drain, ecology, engine Wiggins
- Heater, engine coolant: 120V
- Heater, engine coolant: 240V
- Hydraulic arrangements with one or more additional hydraulic valves are available for rear ripper, dozer, snow plow and snow wing.
- Snow wing mounting, frame ready
- Starting aid, ether
- Reversing fan, automatic or manual
- Cat Grade with 3D
WORK TOOLS/G.E.T.
- Blade extension, left hand, 610 mm (2 ft)
- Blade extension, right hand, 610 mm (2 ft)
- Counterweight
- Cutting edges, curved
- Endbits, overlay
- Front lift group, mounting
- Front lift group, mechanical
- Grader bit, narrow and super penetration
- Mid-Mount Scarifier, Package
- Moldboard: 4267 mm — 610 mm — 22 mm (14 ft× 24 in — 7/8 in)
- Moldboard: 4267 mm — 686 mm — 25 mm (14 ft — 27 in — 1 in)
- Push plate
- Ripper, rear
- Ripper tooth
- Scarifier, front
- Snow Arrangement
- Snow Wing Ready Package
- Tow hitch
MACHINE ARRANGEMENTS
- Canadian Arrangement
- European Arrangement
- TUV Roading Arrangement
OPTIONAL TIRE ARRANGEMENTS
- Rim Size - 9 × 24; Wheel Group - Single-Piece; Tires - 14.0R24
- Rim Size - 13 × 25; Wheel Group - Single-Piece; Tires - 17.5R25
- Rim Size - 10 × 24; Wheel Group - Multi-Piece; Tires - 14.0R24
- Rim Size - 10 × 24; Wheel Group - Multi-Piece; Tires - 14.0-24
- Rim Size - 14 × 25; Wheel Group - Multi-Piece; Tires - 17.5R25
- Rim Size - 14 × 25; Wheel Group - Multi-Piece; Tires - 17.5-25
- Note: Consult your dealer for individual tire width, size and brand.
Sign up for Ziegler CAT emails
Events, updates, and offers
