The C32 marine propulsion engine is available at ratings that meet EPA Tier 3, EPA Tier 4, and IMO II/III, and EU Stage 5 emissions regulations. It has a separate circuit aftercooling system (SCAC) for A through C ratings and a seawater aftercooling system (SWAC) for D and E ratings. The C32 has several ratings with Wide Operating Speed Range (WOSR) and extended oil change intervals. Other benefits include proven engine operating history and performance iron with thousands of validation testing hours for quality and durability. The C32 marine engine is supported by the extensive Cat global dealer network and standard warranty.
Caterpillar

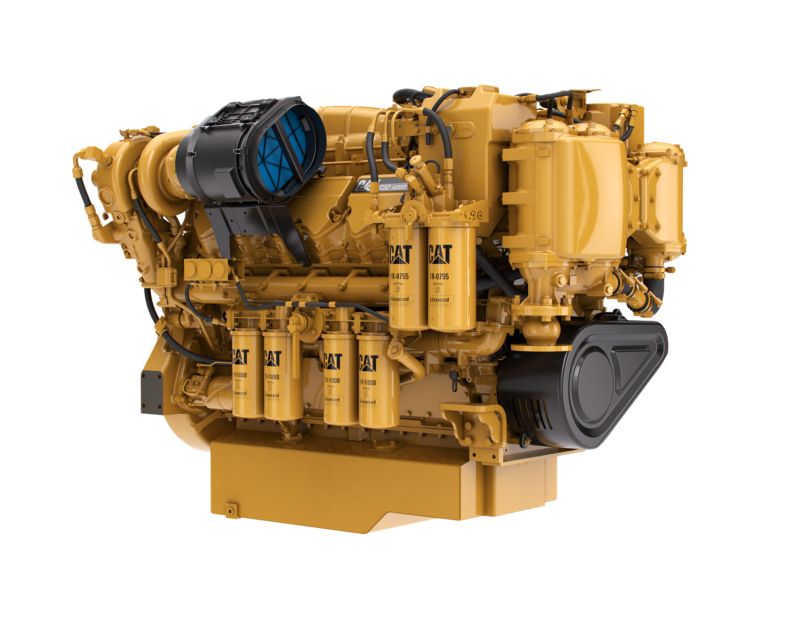

Cat C32 ACERT Marine Propulsion Engine (EPA Tier 3)
Photos
-
C32 ACERT IMO II Commercial Propulsion Engines
360° View
Exterior
360° Exterior view. Double click on the image to zoom in on any area of the product.
Documents
- C32 ACERT SCAC Tier 3 Propulsion Engine 1300 bhp WOSR 1800-2100 rpm, 1450 bhp WOSR 2100-2300 rpm
- C32 Marine Propulsion Engine (IMO II) 969 bkW (1299 bhp) @ 1800-2100 rpm
- C32 Marine Propulsion Engine (IMO II) 492 bkW (660 bhp) @ 1800 rpm
- C32 Marine Propulsion Engine (IMO II) 1081 bkW (1450 bhp) @ 2300 rpm
- C32 Marine Propulsion Engine (IMO II) 970 bkW (1300 bhp) @ 1800 rpm
- C32 Marine Propulsion Engine (IMO II) 895 bkW (1200 bhp) @ 2000 rpm
- C32 Marine Propulsion Engine (IMO II) 970 bkW (1300 bhp) @ 2100 rpm
- C32 Marine Propulsion Engine (IMO II) 708 bkW (950 bhp) @ 1600 rpm
- C32 Marine Propulsion Engine (US EPA Tier 4 / IMO III) 895 bkW @ 1800-2100 rpm
- C32 Marine Propulsion Engine (US EPA Tier 4 / IMO III) 970 bkW @ 1800-2100 rpm
- C32 Marine Propulsion Engine (US EPA Tier 4 / IMO III) 1081 bkW @ 2050-2150 rpm
- IMO II/III Solutions
Features
Specifications
-
Power Rating
Spec Value Power Range 660 - 1600 bhp (492 - 1193 bkW) -
Engine Specifications
Spec Value Speed Range 1600 - 2300 rpm Emissions U.S. EPA Tier 3/ Tier 4, IMO II/III, EU Stage V Aspiration Twin Turbocharged Aspiration Bore 5.71 in Stroke 6.38 in Displacement 1959 in³ Rotation from Flywheel End Counterclockwise Configuration V 12, 4-Stroke-Cycle Diesel -
Dimensions & Weights
Spec Value Maximum Height 62.5 in Minimum Length 77.8 in Minimum Height 60.9 in Maximum Width 60.17 in Maximum Length 83.5 in Minimum Width 60.17 in
Standard Equipment
AIR INLET SYSTEM
- Separate Circuit After-Cooled (SCAC)
- Seawater After-Cooling (SWAC) System
- Air cleaner
- Turbochargers, jacket water cooled
- Turbochargers inlet, 152 mm (6 in) OD straight connection
CONTROL SYSTEM
- Programmable Low Idle (550 - 750 rpm)
- WOSR (Wide Operating Speed Range) available for - A, B, & C Ratings
- Programmable High Idle Limit for WOSR Ratings
- Electronic diagnostics and fault logging
- Engine and transmission monitoring (speed, temperature, pressure)
- Electronic fuel/air ratio control
- Engine Protection Mode for extended ambient conditions
- Torque Limiting functionality for WOSR ratings only
- 70-pin customer connector
- Throttle Input signal options
COOLING SYSTEM
- Separate Circuit After-Cooling (SCAC) for Heat Exchanged (HEX) & Keel cooled engines
- Jacket Water (JW) and SCAC Heat Exchangers Shell & Tube for HEX cooled engines
- SCAC pump, gear driven
- Jacket water pump, gear driven
- Sea water pump, bronze impeller, gear driven, for HEX cooled engines only
- Sea water Pump & JW Heat Exchanger Connection: 76.2 mm (3in) ID Standard
- Keel Connections: 76.2 mm (3in) ID Standard 4 Bolt ANSI Flange Connection
- SCAC and JW shunt tanks for maintaining proper pump inlet pressures
- Seawater After-Cooling (SWAC) System
EXHAUST SYSTEM
- 4 Bolt 130 mm (5.12 in) diameter flanged outlet
- Water-cooled exhaust manifold & turbocharger
FLYWHEELS & FLYWHEEL HOUSINGS
- SAE standard rotation (CCW facing exciter end)
- Flywheel Housing: SAE No. 0, Flywheel: 18 inch, 136 teeth
FUEL SYSTEM
- Duplex Fuel Filters, Spin-on, RH & LH service
- Fuel connections size:Supply JIC 37 Deg -10 (7/8-14), Return JIC 37 Deg -8 (3/4-16)
- Plate Type Fuel Cooler installed behind Aftercooler Shunt Tank
- Fuel transfer pump, gear driven
- Manual fuel priming pump
- Hybrid fuel line design
LUBE SYSTEM
- Simplex Oil Filters, RH or LH service
- Deep sump oil pan
- RH or LH service oil filler locations
- RH or LH service dipstick
- Oil pump, gear driven
MOUNTING SYSTEM
- Front support - adjustable
POWER TAKE-OFFS
- Front Poly-V groove pulley (Quantity 1) for auxiliary drives
GENERAL
- Common electrical bonding point
- Engine does not ship with zinc components
Optional Equipment
Air Inlet Systems
- Air Inlet Cleaner
- Air Inlet Adapter
Charging Systems
- Battery Charger
- Charging Alternators
- Ammeter
Cooling System
- Marine Gear/Transmission Oil Coolers
- Connections
Exhaust System
- Dual Elbow
- Flexible Fitting
- Dual Muffler
- Muffler Spark Arresting
- Flange
Fuel System
- Water Separator
Instrumentation
- OEM Wiring Harness
- Engine to Engine Harness
- Instrument Panels
- Exhaust Temperature Sensors
- Wiring Harness
- Gauges
- Transmission Sensors
Lube System
- Transmission Oil Cooler
- Manual Sump Pump
- Duplex Oil Filters
Protection System
- Fuel and Oil Shielding
Starting System
- Air Starting Motor
- Air Start Accessories
- Electric Starting Motors - Single 24 Volt
- Starting Aids
- Battery Sets - 24 Volt - Dry
- Dual Starting Motors (Electric and Air)
Packing
- Engine Protective Cover
- Export Packing
- Storage Preservation
Mounting System
- Front Support
- Adapter Kits
- Isolator Mounts
Power Take-Offs
- Front Enclosed Clutches
- Rear Hydraulic Pump Drive
GENERAL
- Fumes Disposal
CONTROL SYSTEM
- Instrument Panels
- CATERPILLAR ALARM AND PROTECTION
- Fuel and Oil Shielding
