New Equipment

Caterpillar

C280-16 Commercial Marine Propulsion Engine

Building on the durability and reliability of the C280 engine platform, Caterpillar is pleased to offer the C280-16 engine line, now up to 6000 bkW. The core components are the same as the existing C280, including the latest in EUI fuel system capabilities and state-of-the-art ADEM™ A3 Electronic Control Unit (ECU) features. Caterpillar® products continue to deliver more available power while delivering outstanding fuel efficiency. You can also count on long maintenance intervals and worldwide Caterpillar parts and service availability.

Photos

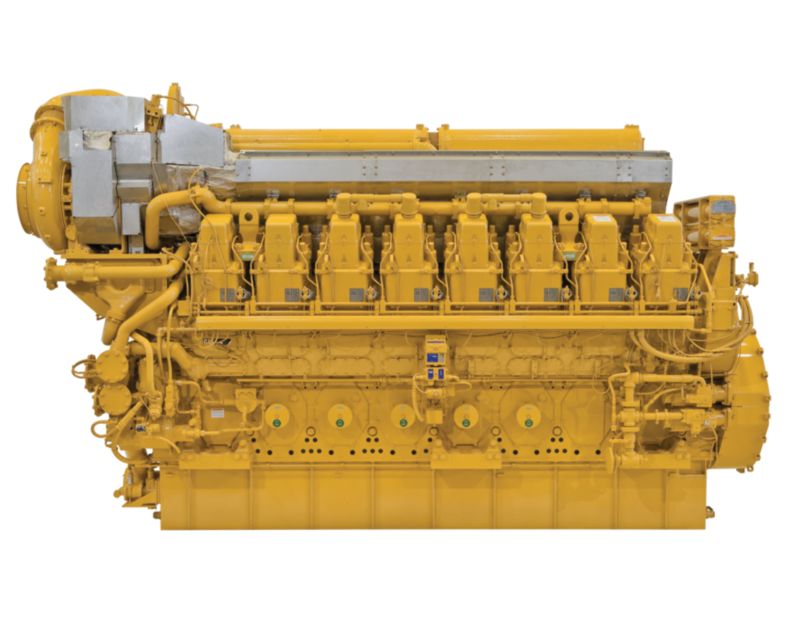

  • C280-16 Commercial Propulsion Engines
    C280-16 Commercial Propulsion Engines

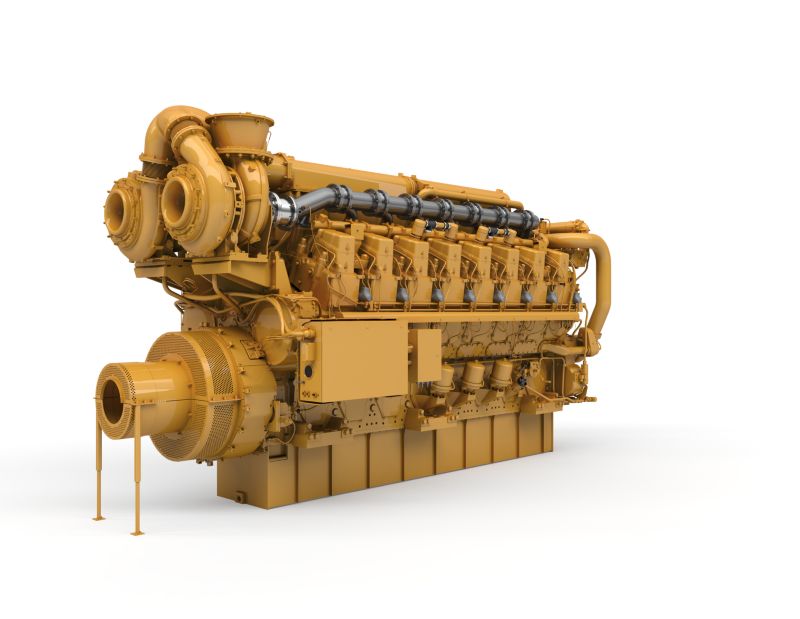

  • C280 16
    C280 16

360° View

Exterior

360° Exterior View. Double click on the image to zoom in on any of the products.

Documents

Ready to Purchase?

Buy Now

Features

A3 ECU

A3 ECU

• CAN J1939 data link • Waterproof connectors • Maintenance-free • Backup ECU for redundant governing • Updated A4 ECU for 6000 bkW

A3 ECU

• CAN J1939 data link • Waterproof connectors • Maintenance-free • Backup ECU for redundant governing • Updated A4 ECU for 6000 bkW

Electronic Advantages:

Electronic Advantages:

• Load feedback • Programmable droop • Adjustable gain • Adjustable fuel/air ratio control • Histograms of engine operation • Cat Messenger display presents diagnostics and other engine parameters

Electronic Advantages:

• Load feedback • Programmable droop • Adjustable gain • Adjustable fuel/air ratio control • Histograms of engine operation • Cat Messenger display presents diagnostics and other engine parameters

Data Advantages through J1939 Link:

Data Advantages through J1939 Link:

• Engine speed • Boost pressure • Throttle position • Fuel consumption rate • Inlet manifold temperature • Diagnostic codes and events • Configuration • Desired engine speed • Battery voltage • Engine load • Lifetime totals — engine hours, fuel burned, idle fuel, idle hours • Trip totals — average fuel rate, idle fuel, idle hours, engine hours, fuel burned, trip reset

Data Advantages through J1939 Link:

• Engine speed • Boost pressure • Throttle position • Fuel consumption rate • Inlet manifold temperature • Diagnostic codes and events • Configuration • Desired engine speed • Battery voltage • Engine load • Lifetime totals — engine hours, fuel burned, idle fuel, idle hours • Trip totals — average fuel rate, idle fuel, idle hours, engine hours, fuel burned, trip reset

Customer Interface Panel

Customer Interface Panel

• Interfaces with standard Cat® Marine Monitoring System (PLC in Price List) • Provides visual indication of ECU functionality • Accepts 4 — 20 mA or PWM remote throttle speed input • Marine alarm and protection

Customer Interface Panel

• Interfaces with standard Cat® Marine Monitoring System (PLC in Price List) • Provides visual indication of ECU functionality • Accepts 4 — 20 mA or PWM remote throttle speed input • Marine alarm and protection

Electronic Unit Injectors

Electronic Unit Injectors

• “Drop-in” installation • No threaded fuel connections • High pressure inside injector only • Does not require double wall fuel lines or leak collection device • Injector synchronization not required

Electronic Unit Injectors

• “Drop-in” installation • No threaded fuel connections • High pressure inside injector only • Does not require double wall fuel lines or leak collection device • Injector synchronization not required

Specifications

  • Power Rating
    Spec Value
    Power Range 6169-8046 bhp (4600-6000 bkW)
  • Engine Specifications
    Spec Value
    Speed Range 900-1000 rpm
    Emissions IMO II
    Aspiration TTA
    Bore 11 in
    Stroke 11.8 in
    Displacement 18062 in³
    Rotation from Flywheel End Counterclockwise or clockwise
    Configuration Vee 16, 4-Stroke-Cycle Diesel
  • Dimensions & Weights
    Spec Value
    Minimum Dry Weight 62832 lb
    Minimum Length 224 in
    Maximum Length 224 in
    Minimum Height 134 in
    Maximum Height 134 in
    Minimum Width 80 in
    Maximum Width 80 in

Standard Equipment

General

  • LH and RH service availability

Air Inlet System

  • Aftercooler, fresh water, corrosion resistant coated (air side)
  • Dual turbochargers, rear-mounted, engine oil lubricated
  • Breather, crankcase, top-mounted
  • Air inlet adapter - Straight / 90 degree / 35 degree

Control System

  • Dual Caterpillar ADEM A4 Electronic Engine Control Modules
  • Rigid Wiring Harness

Cooling System

  • Aftercooler / Oil cooler and jacket water gear driven pumps
  • Engine coolant water drains
  • Single Circuit / Separate Circuit Aftercooler

Exhaust System

  • Dry exhaust manifold
  • Turbo speed sensors - overspeed protection

Fuel System

  • Fuel transfer pump, gear driven
  • Electronically Controlled Unit Injectors
  • Duplex Fuel filters

Instrumentation

  • CAT Alarm & Protection System

Lube System

  • Oil pump, gear driven
  • 3 element oil cooler, engine mounted
  • Duplex centrifugal oil filter, engine mounted

Lube Systems

  • Oil pump, gear driven
  • Wet sump
  • Prelube pump - air / electric
  • Crankcase explosion relief valves

Optional Equipment

Exhaust System

  • Exhaust manifold shielding, soft

Fuel System

  • SOLAS shielding

Lube System

  • Front and rear oil pan drains
  • SOLAS shielding

Protection System

  • Mounted oil mist detector
  • Cylinder pressure relief valves
