The 3516E marine auxiliary engine is now available in a wide range of ratings that meet U.S. EPA Tier 4 Final and IMO III marine emissions regulations. As the commercial marine industry adjusts their operations to meet EPA Tier 4 Final and IMO III emissions standards, Caterpillar Marine has introduced a solution built to maximize performance while meeting regulations. Caterpillar’s combination of a fuel-efficiency-optimized engine and a selective catalytic reduction (SCR) aftertreatment system is a solution that not only reduces NOx emissions, but can also lower a customer’s owning and operating costs in the process.
Caterpillar

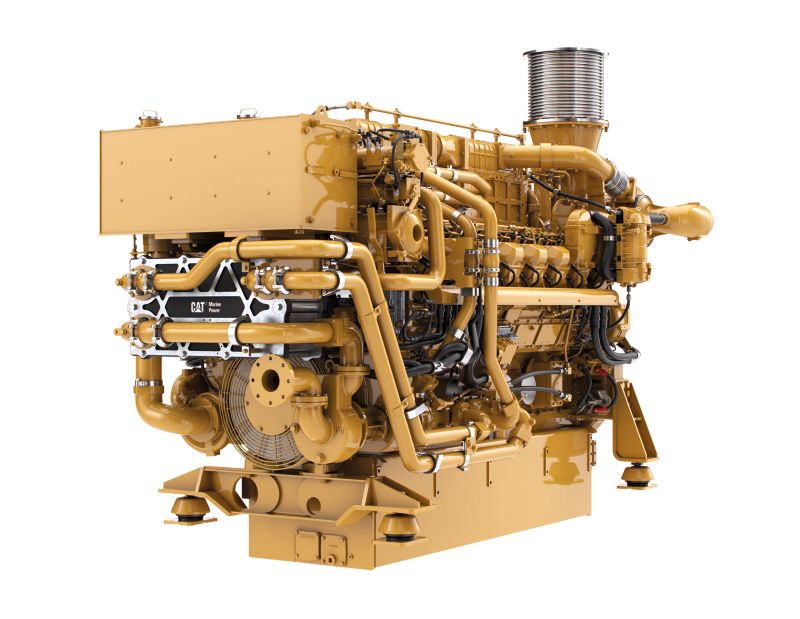

3516E Marine Auxiliary Engine (U.S. EPA Tier 4 Final)
Photos
-
3516E Marine Auxiliary/DEP Engine (U.S. EPA Tier 4 Final)
Documents
Features
Specifications
-
Power Rating
Spec Value Power Range 1921 - 2368 bkW -
Generator Set Specifications
Spec Value Frequency 50 / 60 -
Engine Specifications
Spec Value Emissions U.S. EPA Tier 4, IMO II/III Aspiration Turbocharged - Aspirator Bore 6.69 in Stroke 8.46 in Displacement 4765 in³ Configuration V 16, 4-Stroke-Cycle Diesel Rotation from Flywheel End Counterclockwise -
Dimensions & Weights
Spec Value Minimum Width 72.8 in Dry Weight 22060 lb Height 90.9 in Maximum Width 87.9 in Length 146.6 in
Standard Equipment
Air Inlet System
- Corrosion-resistant aftercooler core
Control System
- Dual A5 engine control modules with electronic unit injection and low pressure fuel system
Cooling System
- Auxiliary fresh water pump
- Gear Driven, centrifugal jacket water pump with 40% more capacity
Exhaust System
- Dual turbochargers with water-cooled bearings and heat shields
Fuel System
- Duplex Fuel and Oil Filtration
General
- Vibration damper and guard
- Meets SOLAS regulations
