New Equipment

Caterpillar

308 CR VAB Mini Hydraulic Excavator

Net Power

69.5 hp

Operating Weight

20385 lb

Dig Depth

150.2 in

Overview

The Cat® 308 CR Variable Angle Boom (VAB) Mini Excavator delivers maximum power and performance in a mini size to help you work in a wide range of applications. The Variable Angle Boom provides the maximum in linkage flexibility in tight applications.

Photos

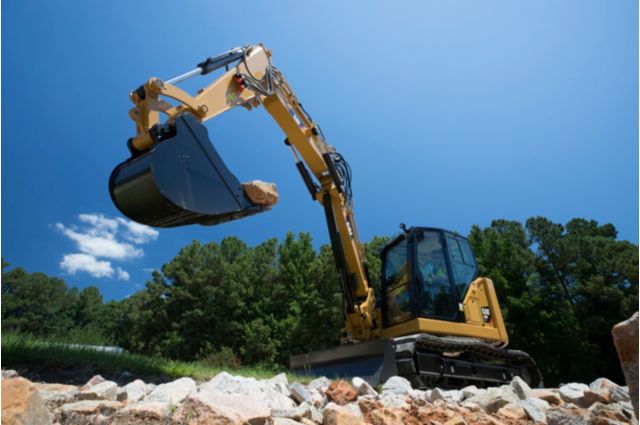

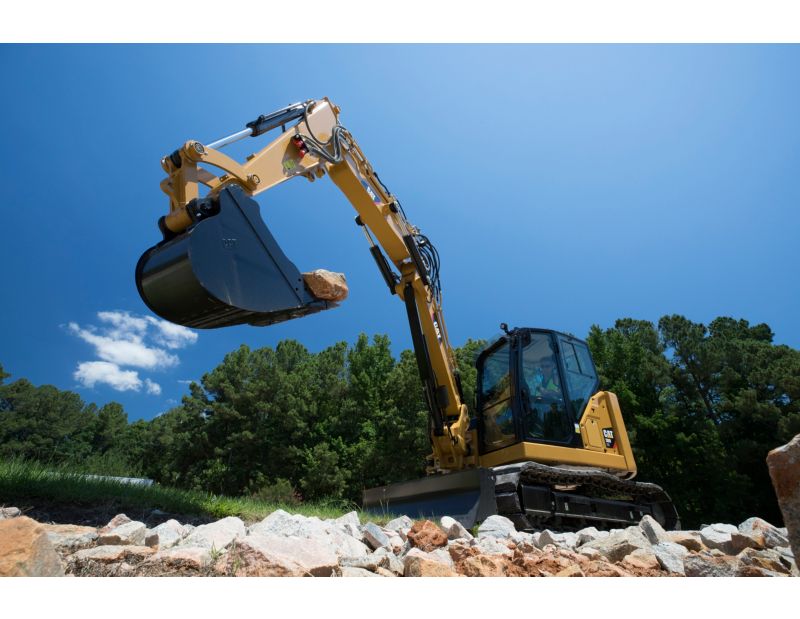

  • 308 CR VAB Mini Hydraulic Excavator
    308 CR VAB Mini Hydraulic Excavator

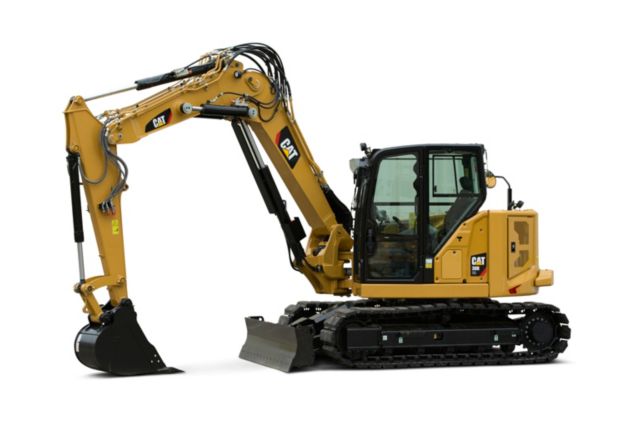

  • 308 CR VAB Mini Hydraulic Excavator
    308 CR VAB Mini Hydraulic Excavator

Videos

  • See the new Cat 7-10 Ton Mini Excavators in action.
  • Learn about the features and benefits of the new Cat 7-10 Ton Mini Excavators.
  • Easy to read monitor lets you adjust machine settings to your operating preference.
  • Easily switch from traditional travel controls with levers and pedals to joystick controls with a push of a button.
  • Learn about the recommended Daily Maintenance and Inspection for the Cat 7 to 10 Ton Mini Excavators in this quick video.
  • Learn about the Safety Features on the Cat 7 to 10 Ton Mini Excavators in this quick video.

Showroom

Virtual Product Tour

Documents

Ready to Purchase?

Buy Now

Features

ALL DAY COMFORT

ALL DAY COMFORT

  • A sealed and pressurized cab is equipped with an improved air conditioning system, adjustable wrist rests and a suspension seat to help keep you working comfortably all day long.

ALL DAY COMFORT

  • A sealed and pressurized cab is equipped with an improved air conditioning system, adjustable wrist rests and a suspension seat to help keep you working comfortably all day long.
EASY TO OPERATE

EASY TO OPERATE

  • Controls are easy to use and the intuitive Next Generation Monitor provides customizable machine operator preferences and easy to read machine information.

EASY TO OPERATE

  • Controls are easy to use and the intuitive Next Generation Monitor provides customizable machine operator preferences and easy to read machine information.
STICK STEER TRAVEL MODE

STICK STEER TRAVEL MODE

  • Moving around the job site is even easier with the Cat Stick Steer option. Easily switch from traditional travel controls with levers and pedals to joystick controls with a push of a button. The benefit of less effort and improved control is in your hands!

STICK STEER TRAVEL MODE

  • Moving around the job site is even easier with the Cat Stick Steer option. Easily switch from traditional travel controls with levers and pedals to joystick controls with a push of a button. The benefit of less effort and improved control is in your hands!
BIG PERFORMANCE IN A MINI DESIGN

BIG PERFORMANCE IN A MINI DESIGN

  • Increased lifting, swinging, travel and multi-functioning performance help you get the job done more efficiently, and dig-to-blade allows for easy clean up.

BIG PERFORMANCE IN A MINI DESIGN

  • Increased lifting, swinging, travel and multi-functioning performance help you get the job done more efficiently, and dig-to-blade allows for easy clean up.
SAFETY ON THE JOB SITE

SAFETY ON THE JOB SITE

  • Your safety is our top priority. The Cat Mini Excavator is designed to help keep you safe on the job. A back-up camera, courtesy work lights and a fluorescent retractable seat belt are just a few of the safety features we‚Äôve built into the machine.

SAFETY ON THE JOB SITE

  • Your safety is our top priority. The Cat Mini Excavator is designed to help keep you safe on the job. A back-up camera, courtesy work lights and a fluorescent retractable seat belt are just a few of the safety features we‚Äôve built into the machine.
SIMPLE SERVICE FOR LESS DOWNTIME

SIMPLE SERVICE FOR LESS DOWNTIME

  • Maintenance is quick and easy on the Cat Mini Excavator. Routine check points are easy to access at ground level with grouped service points and robust service panels.

SIMPLE SERVICE FOR LESS DOWNTIME

  • Maintenance is quick and easy on the Cat Mini Excavator. Routine check points are easy to access at ground level with grouped service points and robust service panels.
LOWER OPERATING COSTS

LOWER OPERATING COSTS

  • Equipped with features such as auto idle, auto engine shutdown, and efficient hydraulics with a variable displacement pump, the Cat Mini Excavator was designed with reducing your operating costs in mind.

LOWER OPERATING COSTS

  • Equipped with features such as auto idle, auto engine shutdown, and efficient hydraulics with a variable displacement pump, the Cat Mini Excavator was designed with reducing your operating costs in mind.

UNMATCHED DEALER SUPPORT

UNMATCHED DEALER SUPPORT

  • Your Cat dealer is here to help you reach your business goals. From providing equipment solutions to operator training to service needs and beyond, your Cat dealer is ready to help.

UNMATCHED DEALER SUPPORT

  • Your Cat dealer is here to help you reach your business goals. From providing equipment solutions to operator training to service needs and beyond, your Cat dealer is ready to help.
SUSTAINABILITY

SUSTAINABILITY

  • The Cat® C3.3B engine meets U.S. EPA Tier 4 Final, EU Stage V, and Japan 2014 emission standards.
  • Cat diesel engines are required to use ULSD (ultra-low sulfur diesel fuel with 15 ppm of sulfur or less) or ULSD blended with the following lower-carbon intensity fuels up to: 20% biodiesel FAME (fatty acid methyl ester) * or 100% renewable diesel, HVO (hydrotreated vegetable oil) and GTL (gas-to-liquid) fuels. Refer to guidelines for successful application. Please consult your Cat dealer or “Caterpillar Machine Fluids Recommendations” (SEBU6250) for details.
  • Auto Idle helps reduce unnecessary fuel burn and greenhouse gas emissions by allowing the engine to automatically go into idle mode when the machine is not working.
  • Engine Idle Shutdown Timer reduces fuel burn, greenhouse gas emissions and unnecessary idle time by shutting down the machine after a pre-set idling period.
  • Cruise control helps you maintain a constant speed as you travel across your jobsite saving fuel and reducing greenhouse gas emissions.
  • The Cat® Seat Belt Reminder provides audible and visual warnings to remind operators to buckle up during machine operation. The easy-to-install system is compatible with all equipment brands to help ensure operator safety.
  • Extended maintenance intervals not only reduce downtime but decrease the amount of fluid and filters that are replaced over the life of the machine.
  • Remote Flash minimizes downtime and maintenance time while keeping your asset running with maximum efficiency. Alerts for machine updates are sent virtually from your Cat dealer and updates can be deployed without a dealer technician needing to be onsite.(if equipped)
  • Remote Troubleshoot decreases maintenance time and keeps your machine running with maximum efficiency by allowing your Cat dealer to virtually test the machine while working. Once a problem is identified, a technician can fix it the first time, saving time and money.(if equipped)
  • Cat Grade with advanced 2D and 3D technologies combine advanced guidance with optional automated machine control helping you reach grading targets while reducing fuel burn and greenhouse gas emissions by improving efficiency, job site productivity, and accuracy. (if equipped).
*Engines with no aftertreatment devices can use higher blends, up to 100% biodiesel. (for use of blends higher than 20% biodiesel, consult your Cat dealer)

SUSTAINABILITY

  • The Cat® C3.3B engine meets U.S. EPA Tier 4 Final, EU Stage V, and Japan 2014 emission standards.
  • Cat diesel engines are required to use ULSD (ultra-low sulfur diesel fuel with 15 ppm of sulfur or less) or ULSD blended with the following lower-carbon intensity fuels up to: 20% biodiesel FAME (fatty acid methyl ester) * or 100% renewable diesel, HVO (hydrotreated vegetable oil) and GTL (gas-to-liquid) fuels. Refer to guidelines for successful application. Please consult your Cat dealer or “Caterpillar Machine Fluids Recommendations” (SEBU6250) for details.
  • Auto Idle helps reduce unnecessary fuel burn and greenhouse gas emissions by allowing the engine to automatically go into idle mode when the machine is not working.
  • Engine Idle Shutdown Timer reduces fuel burn, greenhouse gas emissions and unnecessary idle time by shutting down the machine after a pre-set idling period.
  • Cruise control helps you maintain a constant speed as you travel across your jobsite saving fuel and reducing greenhouse gas emissions.
  • The Cat® Seat Belt Reminder provides audible and visual warnings to remind operators to buckle up during machine operation. The easy-to-install system is compatible with all equipment brands to help ensure operator safety.
  • Extended maintenance intervals not only reduce downtime but decrease the amount of fluid and filters that are replaced over the life of the machine.
  • Remote Flash minimizes downtime and maintenance time while keeping your asset running with maximum efficiency. Alerts for machine updates are sent virtually from your Cat dealer and updates can be deployed without a dealer technician needing to be onsite.(if equipped)
  • Remote Troubleshoot decreases maintenance time and keeps your machine running with maximum efficiency by allowing your Cat dealer to virtually test the machine while working. Once a problem is identified, a technician can fix it the first time, saving time and money.(if equipped)
  • Cat Grade with advanced 2D and 3D technologies combine advanced guidance with optional automated machine control helping you reach grading targets while reducing fuel burn and greenhouse gas emissions by improving efficiency, job site productivity, and accuracy. (if equipped).
*Engines with no aftertreatment devices can use higher blends, up to 100% biodiesel. (for use of blends higher than 20% biodiesel, consult your Cat dealer)

Specifications

  • Engine
    Spec Value
    Net Power 69.5 hp
    Displacement 203 in³
    Note Net power advertised is the power available at the flywheel when the engine is equipped with air cleaner, exhaust system and fan.
    Bore 3.7 in
    Gross Power - SAE J1995:2014 74.3 hp
    Stroke 4.7 in
    Net Power - 2,200 rpm - ISO 9249:2007, 80/1269/EEC 69.5 hp
    Engine Model - U.S. EPA Tier 4 Final/EU Stage V Cat® C3.3B
  • Weights
    Spec Value
    Operating Weight 20385 lb
    Note (1) *Minimum Weight is based on rubber tracks, no counterweight, operator, full fuel tank, blade, and no bucket.
    Note (2) **Maximum Weight is based on steel tracks with rubber pads, counterweight, operator, full fuel tank, blade, and no bucket.
    Maximum Operating Weight with Standard Stick** 20385 lb
    Minimum Operating Weight with Standard Stick* 19084 lb
  • Weight Increase from Minimum Configuration
    Spec Value
    Counterweight 552 lb
    Steel Tracks with Pads 752 lb
  • Travel System
    Spec Value
    Maximum Traction Force - High Speed 6250 lbf
    Travel Speed - Low 1.9 mile/h
    Ground Pressure - Maximum Weight 5.9 psi
    Travel Speed - High 3.2 mile/h
    Gradeability - Maximum 30 degrees
    Ground Pressure - Minimum Weight 5.5 psi
    Maximum Traction Force - Low Speed 15175 lbf
  • Service Refill Capacities
    Spec Value
    Engine Oil 3 gal (US)
    Cooling System 2.6 gal (US)
    Hydraulic System 29 gal (US)
    Hydraulic Tank 14 gal (US)
    Fuel Tank 39 gal (US)
  • Hydraulic System
    Spec Value
    Digging Force - Bucket 13946 lbf
    Operating Pressure - Equipment 4134 psi
    Pump Flow at 2,400 rpm 44 gal/min
    Operating Pressure - Travel 4134 psi
    Digging Force - Stick - Standard 9509 lbf
    Type Load Sensing Hydraulics with Variable Displacement Piston Pump
    Operating Pressure - Swing 3626 psi
    Note Flow and pressure are not combinable. Under load, as flow rises pressure goes down.
    Maximum Auxiliary Circuit - Primary - Pressure at Pump 4134 psi
    Maximum Auxiliary Circuit - Secondary - Pressure at Pump 4134 psi
    Maximum Auxiliary Circuit - Primary - Flow at Pump 35 gal/min
    Maximum Auxiliary Circuit - Secondary - Flow at Pump 9 gal/min
  • Swing System
    Spec Value
    Machine Swing Speed 10.6 r/min
    Boom Swing - Right 50 degrees
    Boom Swing - Left 60 degrees
  • Blade
    Spec Value
    Height 17 in
    Width - Wide 96.5 in
    Width - Standard 90.6 in
  • Certification - Cab and Canopy
    Spec Value
    Roll Over Protective Structure (ROPS) ISO 12117-2:2008
    Tip Over Protective Structure (TOPS) ISO 12117:1997
    Top Guard ISO 10262:1998 (Level II)
  • Sound
    Spec Value
    Operator Sound Pressure (ISO 6396:2008) 72 dB(A)
    Note European Union Directive "2000/14/EC"
    Average Exterior Sound Pressure (ISO 6395:2008) 99 dB(A)
  • Air Conditioning System
    Spec Value
    Air Conditioning The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains 1.0 kg of refrigerant which has a CO2 equivalent of 1.430 metric tonnes.
  • Dimensions - VAB In
    Spec Value
    Dig Depth 150.2 in
    Tail Swing with Counterweight 62.4 in
    Maximum Blade Height 14.6 in
    Track Belt/Shoe Width 17.7 in
    Maximum Dump Clearance 135.8 in
    Vertical Wall 99.2 in
    Boom in Reach 122.8 in
    Ground Clearance 13.8 in
    Swing Bearing Height 29.8 in
    Boom Swing Right 37 in
    Overall Track Width 90.6 in
    Overall Shipping Length 253.9 in
    Transport Height 97.4 in
    Cab Height 100 in
    Overall Undercarriage Length 113.4 in
    Maximum Reach 256.5 in
    Tail Swing without Counterweight 57.1 in
    Maximum Reach at Ground Level 248 in
    Stick Length 71.7 in
    Maximum Blade Depth 16 in
    Boom Swing Left 24 in
    Maximum Dig Height 205.5 in
  • Dimensions - VAB Out
    Spec Value
    Dig Depth 136.2 in
    Overall Shipping Length 253.9 in
    Stick Length 71.7 in
    Track Belt/Shoe Width 17.7 in
    Swing Bearing Height 29.8 in
    Maximum Blade Depth 16 in
    Maximum Reach at Ground Level 303.7 in
    Transport Height 97.4 in
    Boom in Reach 106.7 in
    Overall Undercarriage Length 113.4 in
    Maximum Reach 310.4 in
    Maximum Dump Clearance 247.4 in
    Ground Clearance 13.8 in
    Vertical Wall 146.7 in
    Tail Swing with Counterweight 62.4 in
    Tail Swing without Counterweight 57.1 in
    Boom Swing Left 24 in
    Maximum Blade Height 14.6 in
    Cab Height 100 in
    Maximum Dig Height 322 in
    Boom Swing Right 37 in
    Overall Track Width 90.6 in
  • Sustainability
    Spec Value
    Recyclability 96%

Standard Equipment

ENGINE

  • Cat C3.3 Diesel Engine (U.S. EPA Tier 4 Final/EU Stage V) – Electronic Engine, Turbo, Diesel Particulate Filter (DPF)
  • Automatic Engine Idle
  • Automatic Engine Shutdown
  • Automatic Swing Brake
  • Automatic Two Speed Travel
  • Fuel Water Separator with Indicator
  • Radial Seal – Double Element Air Filter
  • Extended Life Coolant, –37° C ( –35° F)
  • Ecology Drain

HYDRAULICS

  • Smart Tech Electronic Pump
  • Electronic Variable Displacement Piston Pump
  • Load Sensing/Flow Sharing Hydraulics
  • Power On Demand
  • Hydraulic Temperature Monitoring
  • Certified Accumulator
  • HYDO Advanced Hydraulic Oil

OPERATOR ENVIRONMENT

  • Top Guard ISO 10262 1998 Level I
  • ROPS ISO 12117-2:2008
  • Sealed and Pressurized Cab
  • Stick Steer Mode
  • Travel Cruise Control
  • Control Pattern Changer
  • Adjustable Wrist Rests
  • Molded Footrests
  • Removable, Washable Floor Mat
  • Travel Pedals and Hand Levers
  • Cat Key with Passcode Option
  • HVAC with Automatic Temperature Control
  • Hydraulic Lockout Controls
  • Integrated Lower Front Window
  • Assisted Front Window Overhead Storage
  • Rear Window Emergency Exit
  • Fabric, High Back, Suspension Seat
  • Retractable Seat Belt (75 mm/3 in)
  • Coat Hook
  • Cup Holder
  • LED Interior Light
  • Literature Holder
  • Mounting Bosses for Top and Front Guards
  • 12V Power Socket
  • Radio – Bluetooth, Auxiliary, Microphone, USB (charging only)
  • Skylight
  • Signaling/Warning Horn
  • Cab and (left side) Boom Work Lights
  • Utility Space for Mobile Phone
  • Next Generation Color LCD Monitor (IP66)
    – Jog Dial Interface
    – Fuel Level and Coolant Temperature Gauges
    – Maintenance and Machine Monitoring
    – Performance and Machine Adjustments
    – Numeric Security Code
    – Multiple Languages
    – Camera Ready (IP68 & IP69K)
    – Hour Meter with Wake Up Switch

UNDERCARRIAGE

  • Greased and Lubricated Track
  • Hydraulic Track Adjusters
  • Tie Down Eyes on Track Frame
  • Dozer Blade
  • Dozer Float
  • Bolt-on, Reversible Wear Edge

BOOM, STICK AND LINKAGES

  • Variable Angle Boom
  • Standard Stick (1820 mm/71.7 in)
  • Front Shovel Capable – Pin-on/Manual Coupler/Hydraulic Coupler (not available in all regions)
  • Thumb Ready (not available in all regions)

ELECTRICAL

  • 12 Volt Electrical System
  • 60 Ampere Alternator
  • Circuit Breaker
  • 900 CCA Maintenance Free Battery
  • Battery Disconnect
  • Ignition Key Stop Switch

OTHER

  • Locks on External Enclosure Doors
  • Lockable Fuel Cap
  • Beacon Socket
  • Rear Reflectors

Optional Equipment

OPERATOR ENVIRONMENT

  • Push to Start with Bluetooth® Key
  • Air Suspension Heated Seat
  • Rain Visor
  • Next Generation Advanced Monitor (below are all included with Next Generation Advanced Monitor option)
    – Touch Screen
    – Site Reference System
    – High Definition Camera Capable (IP68 & IP69K)
    – Numeric Security Code

UNDERCARRIAGE

  • Wide Dozer Blade
  • Steel Tracks (450 mm/17.7 in wide)
  • Wide Steel Tracks (600 mm/23.6 in)
  • Steel Track with Rubber Pads
  • Track Guides

BOOM, STICK AND LINKAGES

  • Attachments including Buckets, Augers and Hammers
  • 2nd Auxiliary Hydraulic Lines
  • Boom Lowering Check Valve
  • Stick Lowering Check Valve
  • Certified Lifting Eye

ELECTRICAL

  • Product Link Elite (regulations apply)
  • Travel Alarm
  • Rearview Camera
  • Rotating Beacon

GUARDING

  • Mesh Front Guard ISO 10262 1998 Level I
  • Heavy Duty Front Guard ISO 10262 1998 Level II
  • Overhead Cab Guard ISO 10262 1998 Level II
  • Polycarbonate Front Window EN356 P5A
  • Track Guards

OTHER

  • Additional Counterweight
  • Water Jacket Heater
  • Refueling Pump

Related Products

Heavy Duty Buckets - Mini Excavator

Studio Shot 330 mm (13 in), 99 L (3.5 ft3), Pin On, 50 mm (2 in)
Studio Shot 457 mm (18 in), 150 L (5.3 ft3), Pin On, 50 mm (2 in)
Studio Shot 610 mm (24 in), 229 L (8.1 ft3), Pin On, 50 mm (2 in)
Studio Shot 762 mm (30 in), 309 L (10.9 ft3), Pin On, 50 mm (2 in)
Studio Shot 914 mm (36 in), 388 L (13.7 ft3), Pin On, 50 mm (2 in)

Heavy Duty Buckets

Studio Shot 300 mm (12 in), 96 L (3.4 ft3), Pin Lock, Weld-On Adapters
Studio Shot 406 mm (16 in), 120 L (4.2 ft3), Pin Lock, Weld-On Adapters
Studio Shot 457 mm (18 in), 139 L (4.9 ft3), Pin Lock, Weld-On Adapters
Studio Shot 610 mm (24 in), 207 L (7.3 ft3), Pin Lock, Weld-On Adapters
Studio Shot 762 mm (30 in), 280 L (9.9 ft3), Pin Lock, Weld-On Adapters
Studio Shot 914 mm (36 in), 340 L (12 ft3), Pin Lock, Weld-On Adapters

High Capacity Buckets

Studio Shot 406 mm (16 in), 160 L (5.7 ft3), Pin Lock, Weld-On Adapters
Studio Shot 610 mm (24 in), 260 L (9.2 ft3), Pin Lock, Weld-On Adapters
Studio Shot 457 mm (18 in), 180 L (6.4 ft3), Pin Lock, Weld-On Adapters
Studio Shot 914 mm (36 in), 460 L (16.2 ft3), Pin Lock, Weld-On Adapters
Studio Shot 762 mm (30 in), 360 L (12.7 ft3), Pin Lock, Weld-On Adapters

Mobile Scrap & Demolition Shears

Studio Shot S308
