330 GC Excavator | 30 Ton Excavator / Digger

Net Power - ISO 9249

201 hp

Operating Weight

68100 lb

Maximum Digging Depth

23.8 ft

Overview

The Cat® 330 GC offers you the ideal balance of dependable performance operator productivity features, and reduced costs. The Cat 330 GC is a smart choice for operations where high reliability and low-cost-per-hour performance are priorities.

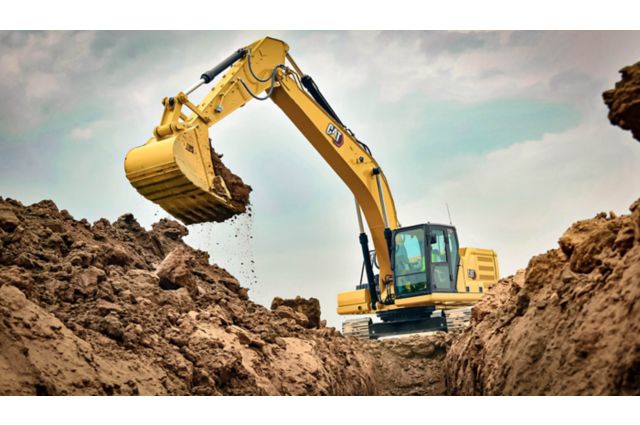

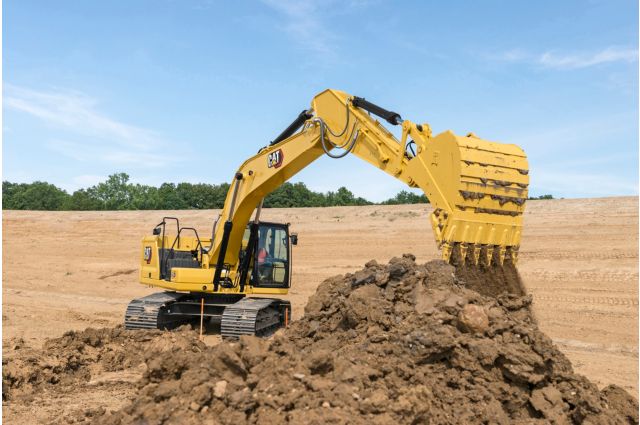

330 GC Hydraulic Excavator
330 GC Hydraulic Excavator
330 GC Hydraulic Excavator
330 GC Hydraulic Excavator
330 GC Hydraulic Excavator

Exterior

360° Exterior view. Double click on the image to zoom in on any area of the product.

Interior

360° interior view. Double click on the image to zoom in on any area of the product.

Virtual Product Tour. Double click on the hotspots to see in on any area of the product.

Documents

Ready to Purchase?

Buy Now

Features

Latest Features

Cab Monitor Improvements

Continuously improved user interface allows for intuitive navigation, minimizing performance interruption with the easy-to-use touchscreen menu.
Smaller app tiles to view more apps in one screen.
When navigating the menu, scroll position will be remembered.
While menu is shown and lever is moved, camera view will be shown.
Use the in-monitor QR code to learn about machine and technology features through a full suite of “how-to” videos.

Not all features are available in all regions. Please check with your local Cat® dealer for specific offering availability in your area. Build Number: 07H

Performance and Productivity

Help reduce fuel consumption by matching the excavator to the job - Eco and Smart mode allow for automatic recognition of engine and hydraulic power in specific digging conditions.
The C7.1 engine meets U.S. EPA Tier 4 Final, EU Stage V, Korea Stage V, and Japan 2014 emission standards with an after-treatment system that requires no maintenance or downtime.
The advanced hydraulic system provides the optimum balance of power and efficiency while giving you the control you need for precise digging requirements.
Valve priority puts hydraulic pressure and flow where you command it to go for fast light- to medium-load cycle times.
Advansys™ bucket tips increase penetration and improve cycle times. Tip changes can be done quickly with a simple lug wrench instead of a hammer or special tool, improving safety and uptime.
Auxiliary hydraulic options give you the versatility to use a wide range of Cat® attachments.

Built to Perform

Work up to 3000 m (9,840 ft) above sea level without de-rating.
Don’t let the temperature stop you from working. The excavator has a standard high-ambient temperature capability of 52° C (125° F) and cold start capability of –18° C (0° F). An optional – 32° C (–25° F) cold start package is available.
Auto warm up speeds up hydraulic oil warming in cold temperatures and helps prolong the life of components.
Two levels of fuel filtration protect the engine from dirty diesel fuel.
Grease sealed between track pins and bushings reduces travel noise and prevents debris from entering to increase undercarriage life.
The track guiding guard helps keep the excavator track aligned when traveling and working on slopes.
The sloped track frame prevents mud and debris accumulation, helping reduce risk of track damage.

Designed for Operators

The cab has a wide seat that adjusts for operators of all sizes.
Control the excavator comfortably with easy-to-reach controls all located in front of you.
Standard automatic climate control keeps you at the right temperature all shift long.
Stow your gear with plenty of in-cab storage beneath and behind the seat, overhead, and in the consoles. A cup holder, document holder, bottle holder, and coat hook are also provided.
Use the standard radio’s USB ports and Bluetooth® technology to connect to personal devices.

Simple to Operate

Start the engine with a push button; use a Bluetooth® key fob, or the unique Operator ID function.
Program your power mode and joystick preferences using Operator ID; the excavator will remember what you set each time you go to work.
Navigate quickly on the standard high-resolution 203 mm (8 in) touchscreen monitor or with the aid of the jog dial control.
Use the in-monitor QR code to learn about machine and technology features through a full suite of “how-to” videos.

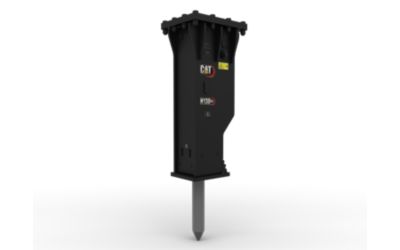

Protect your hammer tool from overheating and rapid wear. Auto hammer stop warns you after 15 seconds of continuous firing and then automatically shuts it off after 30 seconds - all to extend the tool’s service life.
Find the tool you need – even if it’s hidden beneath overgrowth or debris. The optional Bluetooth reader can search for any work tool equipped with Cat asset tracking devices up to a range of 60 meters (200 feet).
Make moving the excavator much easier with Cat® Stick Steer. Simply push a button and use one hand to travel and turn instead of both hands or feet on levers or pedals.

Lower Maintenance Costs

Expect lower maintenance costs compared to the 330F.
Do all daily maintenance at ground level.
Check engine oil level quickly and safely with the ground-level engine oil dipstick; fill and check engine oil on top of the machine with a conveniently located second dipstick.
Track your excavator’s filter life and maintenance intervals via the in-cab monitor.
No required maintenance on the Cat® Clean Emissions Module.
Expect the latest air intake filter with pre-cleaner to last up to 1,000 hours.
The latest hydraulic oil filter provides high filtration performance, anti-drain valves to keep oil clean when the filter is replaced, and longer life with a 3,000-hour replacement interval.
High-efficiency cooling fans run only when needed; you can program intervals so they automatically reverse to keep cores clean without interrupting your work.
Boost productivity with proactive service reminders. The integrated vehicle health management system alerts the operator with step-by-step service guidance, along with parts needed, so you don't experience any unnecessary downtime.
S·O·S^SM ports simplify maintenance and allow for quick, easy extraction of fluid samples for analysis.

Safely Home Every Day

Access 100% of daily maintenance points from ground level – no need for you to climb on top of the excavator.
Keep your excavator secure with Operator ID. Use your PIN code on the monitor to enable the pushbutton starting feature.
The standard ROPS cab meets ISO 12117-2:2008 requirements.
Enjoy great visibility into the trench, in each swing direction, and behind you with the help of smaller cab pillars, larger windows, and a flat engine hood design.
The latest right service platform design provides easy, safe, and quick access to upper service platform; the service platform steps use anti-skid punch plate to prevent slipping.
The standard hydraulic lockout lever isolates all hydraulic and travel functions in the lowered position.
Ground-level shut-off switch stops all fuel to the engine when activated and shuts down the machine.
Enhance jobsite safety. Add a swing alarm to alert people when you're rotating from trench to stockpile and back again.
Make service work easier and safer with optional inspection lighting. With the flip of a switch, lights will illuminate the engine, pump, battery, and radiator compartments to enhance visibility.

Take the Guesswork out of Managing Your Equipment

VisionLink® provides actionable data insights for all assets - regardless of fleet size or equipment manufacturer.* Review equipment data from your desktop or mobile device to maximize uptime and optimize assets. Dashboards provide information such as hours, miles, location, idle time, and fuel utilization. Make informed decisions that lower costs, simplify maintenance, and improve safety and security on your jobsite.
VisionLink Productivity gathers and summarizes machine telematics and jobsite data from all your equipment – regardless of the manufacturer.* View actionable information such as idle time, fuel burn, location, payload, load counts, total cycles, and more to improve machine efficiency, productivity, and utilization. Access data anywhere via a mobile, tablet, or desktop device - on or off the jobsite.
Remote Flash is a mobile application that allows you to update onboard software without a technician being present, allowing you to initiate software updates when convenient, increasing your overall operating efficiency.

* Data field availability can vary by equipment manufacturer.

Sustainability

The Cat® C7.1 engine meets U.S. EPA Tier 4 Final, EU Stage V, Korea Stage V, and Japan 2014 emission standards.
The 330 GC emits lower CO2 emissions compared to the previous 330F.
Cat diesel engines are required to use ULSD (ultra-low sulfur diesel fuel with 15 ppm of sulfur or less) or ULSD blended with the following lower-carbon intensity fuels** up to: 20% biodiesel FAME (fatty acid methyl ester)* or 100% renewable diesel, HVO (hydrogenated vegetable oil) and GTL (gas-to-liquid) fuels. Refer to guidelines for successful application. Please consult your Cat dealer or “Caterpillar Machine Fluids Recommendations” (SEBU6250) for details.
Cat VisionLink® displays the CO₂emissions for monitored assets, calculated by fuel type for the Runtime Fuel Burned each day in a selected date range.
Remote Flash minimizes downtime and maintenance time while keeping your asset running with maximum efficiency. Alerts for machine updates are sent virtually from your Cat dealer and updates can be deployed without a dealer technician needing to be onsite.
Auto Engine Speed Control helps reduce unnecessary fuel burn and greenhouse gas emissions by allowing the engine to automatically go into idle mode when the machine is not working.
When engaged, one-touch idle helps operators conserve fuel and reduce greenhouse gas emissions by lowering engine speed when the machine is under no load and return to normal operating speed when desired.
Engine Idle Shutdown Timer reduces fuel burn, greenhouse gas emissions and unnecessary idle time by shutting down the machine after a pre-set idling period.
Cat Scheduled Oil Sampling (S·O·S^SM) Services helps reveal excessive wear, contaminated fluids or other “unseen” issues that can shorten component life. In many cases, you can extend oil and coolant change intervals by using fluid monitoring. Consult your Cat dealer or the machine's operation and maintenance manual for more information.
Extended maintenance intervals not only reduce downtime but decrease the amount of fluid and filters that are replaced over the life of the machine.
A well-trained operator is worth the investment. Skilled operators benefit your bottom line by maximizing productivity, avoiding costly downtime, and maintaining jobsite safety – which can help to improve fuel efficiency and reduce greenhouse gas emissions.

*Engines with no aftertreatment devices can use higher blends, up to 100% biodiesel (for use of blends higher than 20% biodiesel, consult your Cat dealer).
**Tailpipe greenhouse gas emissions from lower-carbon intensity fuels are essentially the same as traditional fuels.

Sustainability

The Cat® C7.1 engine meets U.S. EPA Tier 4 Final, EU Stage V, Korea Stage V, and Japan 2014 emission standards.
The 330 GC emits lower CO2 emissions compared to the previous 330F.
Cat diesel engines are required to use ULSD (ultra-low sulfur diesel fuel with 15 ppm of sulfur or less) or ULSD blended with the following lower-carbon intensity fuels** up to: 20% biodiesel FAME (fatty acid methyl ester)* or 100% renewable diesel, HVO (hydrogenated vegetable oil) and GTL (gas-to-liquid) fuels. Refer to guidelines for successful application. Please consult your Cat dealer or “Caterpillar Machine Fluids Recommendations” (SEBU6250) for details.
Cat VisionLink® displays the CO₂emissions for monitored assets, calculated by fuel type for the Runtime Fuel Burned each day in a selected date range.
Remote Flash minimizes downtime and maintenance time while keeping your asset running with maximum efficiency. Alerts for machine updates are sent virtually from your Cat dealer and updates can be deployed without a dealer technician needing to be onsite.
Auto Engine Speed Control helps reduce unnecessary fuel burn and greenhouse gas emissions by allowing the engine to automatically go into idle mode when the machine is not working.
When engaged, one-touch idle helps operators conserve fuel and reduce greenhouse gas emissions by lowering engine speed when the machine is under no load and return to normal operating speed when desired.
Engine Idle Shutdown Timer reduces fuel burn, greenhouse gas emissions and unnecessary idle time by shutting down the machine after a pre-set idling period.
Cat Scheduled Oil Sampling (S·O·S^SM) Services helps reveal excessive wear, contaminated fluids or other “unseen” issues that can shorten component life. In many cases, you can extend oil and coolant change intervals by using fluid monitoring. Consult your Cat dealer or the machine's operation and maintenance manual for more information.
Extended maintenance intervals not only reduce downtime but decrease the amount of fluid and filters that are replaced over the life of the machine.
A well-trained operator is worth the investment. Skilled operators benefit your bottom line by maximizing productivity, avoiding costly downtime, and maintaining jobsite safety – which can help to improve fuel efficiency and reduce greenhouse gas emissions.

Specifications
Standard Equipment
Optional Equipment

Specifications

Engine

Spec	Value
Net Power - ISO 9249	201 hp 150 kW
Net Power - ISO 9249 (DIN)	204 hp (metric) 204 hp (metric)
Engine Model	Cat® C7.1 Cat® C7.1
Engine Power - ISO 14396	202 hp 151 kW
Engine Power - ISO 14396 (DIN)	205 hp (metric) 205 hp (metric)
Bore	4 in 105 mm
Stroke	5 in 135 mm
Displacement	428 in³ 7.01 l
Biodiesel Capability	Up to B20¹ Up to B20¹
Emissions	Meets U.S. EPA Tier 4 Final, EU Stage V, Korea Stage V, and Japan 2014 emission standards.
Note (1)	Net power advertised is the power available at the flywheel when the engine is equipped with fan, air intake system, exhaust system, and alternator with engine speed at 2,200 rpm. Advertised power is tested per the specified standard in effect at the time of manufacture.
Note (2)	¹Cat diesel engines are required to use ULSD (ultra-low sulfur diesel fuel with 15 ppm of sulfur or less) or ULSD blended with the following lower-carbon intensity fuels** up to: 20% biodiesel FAME (fatty acid methyl ester)* or 100% renewable diesel, HVO (hydrotreated vegetable oil) and GTL (gas-to-liquid) fuels. Refer to guidelines for successful application. Please consult your Cat dealer or “Caterpillar Machine Fluids Recommendations” (SEBU6250) for details. Engines with no aftertreatment devices can use higher blends, up to 100% biodiesel (for use of blends higher than 20% biodiesel, consult your Cat dealer). *Tailpipe greenhouse gas emissions from lower-carbon intensity fuels are essentially the same as traditional fuels.

Hydraulic System

Spec	Value
Main System - Maximum Flow	560 L/min (148 gal/min) 560 L/min (148 gal/min)
Maximum Pressure - Equipment	5075 psi 35000 kPa
Maximum Pressure - Travel	5075 psi 35000 kPa
Maximum Pressure - Swing	4120 psi 28400 kPa

Swing Mechanism

Spec	Value
Swing Speed	11.5 r/min 11.5 r/min
Note (1)	For CE-marked machine default value may be set lower.
Maximum Swing Torque	77370 lbf·ft 105 kN·m

Weights

Spec	Value
Operating Weight	68100 lb 30900 kg
Note	Long undercarriage, Reach boom, R3.2 m (10'6") stick, Heavy Duty (HD) 1.54 m³ (2.01 yd³) bucket, 800 mm (31") triple grouser shoes and 6700 kg (14,770 lb) counterweight.

Service Refill Capacities

Spec	Value
Fuel Tank Capacity	125.2 gal (US) 474 l
Cooling System	6.6 gal (US) 25 l
Engine Oil	6.6 gal (US) 25 l
Swing Drive - Each	2.6 gal (US) 10 l
Final Drive - Each	1.5 gal (US) 5.5 l
Hydraulic System - Including Tank	81.9 gal (US) 310 l
Hydraulic Tank	38.8 gal (US) 147 l
DEF Tank	10.8 gal (US) 41 l

Dimensions

Spec	Value
Boom	Reach 6.15 m (20'2") Reach 6.15 m (20'2")
Stick	Reach 3.2 m (10'6") Reach 3.2 m (10'6")
Bucket	HD 1.54 m³ (2.01 yd³) HD 1.54 m³ (2.01 yd³)
Shipping Height - Top of Cab	10 ft 3050 mm
Handrail Height	10 ft 3050 mm
Shipping Length	34.2 ft 10420 mm
Tail Swing Radius	10.3 ft 3130 mm
Counterweight Clearance	3.7 ft 1110 mm
Ground Clearance	1.6 ft 490 mm
Track Length	15.11 ft 4860 mm
Length to Center of Rollers	13.1 ft 3990 mm
Track Gauge	8.6 ft 2590 mm
Transport Width	10.5 ft 3190 mm

Working Ranges and Forces

Spec	Value
Maximum Digging Depth	23.8 ft 7260 mm
Boom	Reach 6.15 m (20'2") Reach 6.15 m (20'2")
Stick	Reach 3.2 m (10'6") Reach 3.2 m (10'6")
Bucket	HD 1.54 m³ (2.01 yd³) HD 1.54 m³ (2.01 yd³)
Maximum Reach at Ground Level	35.1 ft 10690 mm
Maximum Cutting Height	32.9 ft 10020 mm
Maximum Loading Height	22.8 ft 6930 mm
Minimum Loading Height	7.5 ft 2280 mm
Maximum Depth Cut for 2440 mm (8 ft) Level Bottom	23.3 ft 7100 mm
Maximum Vertical Wall Digging Depth	19.8 ft 6030 mm
Bucket Digging Force - ISO	40200 lbf 179 kN
Stick Digging Force - ISO	28300 lbf 126 kN

Air Conditioning System

Spec	Value
Air Conditioning	The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains 0.85 kg (1.9 lb) of refrigerant which has a CO2 equivalent of 1.216 metric tonnes (1.340 tons).

Sustainability

Spec Value

Recyclability 97% 97%

Spec	Value
Recyclability	97% 97%

Standard Equipment

NOTE

Standard and optional equipment may vary. Consult your Cat dealer for details.

CAB

Rollover Protective Structure (ROPS)
Mechanical-suspension seat (All regions except Europe, North America; optional Japan)
Air-suspension seat (Europe, North America only; optional Japan)
High-resolution 203 mm (8 in) LCD touchscreen monitor

CAT TECHNOLOGY

VisionLink®
Remote Flash

ELECTRICAL SYSTEM

Two 1,000 CCA maintenance free batteries
Programmable time-delay LED working lights
LED chassis light, left-hand/right-hand boom lights, cab lights

ENGINE

Cat C7.1 single turbo diesel engine
Two selectable power modes
Auto engine speed control
Auto engine idle shutdown
52°C (125°F) high-ambient cooling capacity with de-rate
Double element air filter with integrated precleaner
Reversing electric cooling fans

HYDRAULIC SYSTEM

Boom and stick regeneration circuits
Auto warm up
Auto two-speed travel
Boom and stick drift reduction valve

SAFETY AND SECURITY

Auto hammer stop
Rearview camera
Right-hand-sideview camera
Ground-level engine shutoff switch
Lockable disconnect switch
Right-hand handrail and handhold
Signaling/warning horn

SERVICE AND MAINTENANCE

Scheduled Oil Sampling (S·O·S℠) ports
Ground-level and platform-level engine oil dipsticks
Integrated vehicle health management system

UNDERCARRIAGE AND STRUCTURES

Tie-down points on base frame
6700 kg (14,770 lb) counterweight (All regions except Japan; optional Chile, Colombia)
5800 kg (12,790 lb) counterweight (Japan only; optional Chile, Colombia)
