From natural gas-fueled combined heat and power (CHP) systems and emergency power for facilities, to renewable biogas energy to support the local grid, or electricity generated from coal mine gases, Caterpillar has a wide range of reliable gas power solutions.
Caterpillar

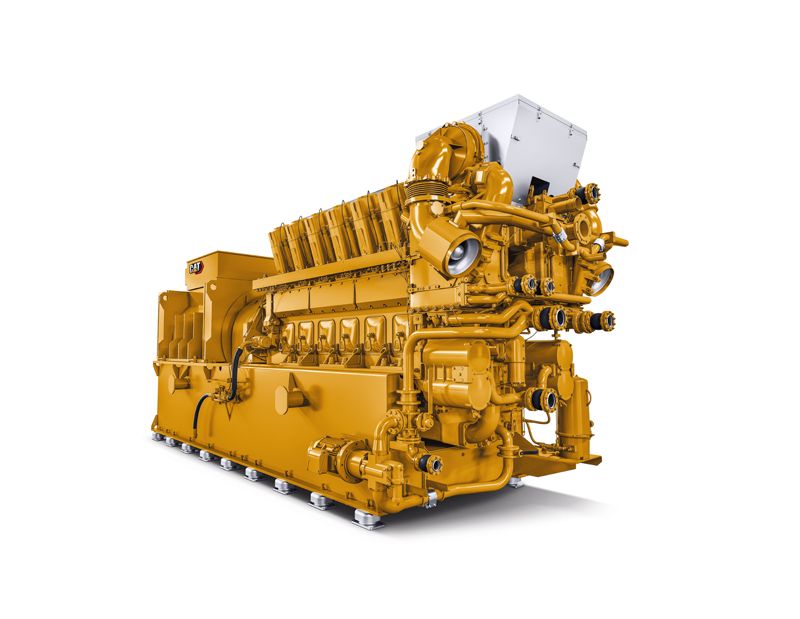

CG260 Gas Generator Set
Overview
Photos
-
CG260-12
Features
High Reliability
- Anti-knock control and cylinder balancing protect the engine from overload and ensure reliable operation
- State-of-the-art turbocharger A140 with Wastegate ensures full performance even under high temperatures and higher altitudes
- Higher reliability and lower maintenance costs due to open combustion chamber technology
High Reliability
- Anti-knock control and cylinder balancing protect the engine from overload and ensure reliable operation
- State-of-the-art turbocharger A140 with Wastegate ensures full performance even under high temperatures and higher altitudes
- Higher reliability and lower maintenance costs due to open combustion chamber technology
High Availability, High Profitability
- Miller valve timing and optimized compression ratios ensure high efficiency and low fuels costs
- More profit for your plant
- Long maintenance intervals and general overhaul only after 80,000 oh allow an operation of 10 years without general overhaul
- Flexible fields of application also with fluctuating gas qualities due to Total Electronic Management (TEM)
High Availability, High Profitability
- Miller valve timing and optimized compression ratios ensure high efficiency and low fuels costs
- More profit for your plant
- Long maintenance intervals and general overhaul only after 80,000 oh allow an operation of 10 years without general overhaul
- Flexible fields of application also with fluctuating gas qualities due to Total Electronic Management (TEM)
Optimized Lubrication Consumption
- Savings of up to 4,000 liters of lube oil per year compared to comparable gensets
- Improved components reduce lube oil consumption
- Lower operating costs due to 30% lower lube oil consumption in comparison to similar products
Optimized Lubrication Consumption
- Savings of up to 4,000 liters of lube oil per year compared to comparable gensets
- Improved components reduce lube oil consumption
- Lower operating costs due to 30% lower lube oil consumption in comparison to similar products
Specifications
-
Generator Set Specifications
Spec Value Continuous Rating 3333 / 3000 ekW @1.0pf Fuel Type Natural Gas, Coal Gas, Hydrogen Blend (up to 25%) Maximum Electrical Efficiency 43.90% Frequency 50Hz / 60 Hz RPM 1000 / 900 rpm -
Engine Specifications
Spec Value Engine Model CG260-12 Displacement 12443 in³ Aspiration TA Bore 10.2 in Stroke 12.6 in -
Generator Set Dimensions
Spec Value Length 315 in Width 105 in Height 110 in Dry Weight - Genset 89617 lb
Standard Equipment
Air Inlet
- One-element single-stage air cleaner with enclosure and sevice indicator
- Turbocharger with a water-cooled bearing case for all cylinder
Control Panels
- TEM (Total Electronic Management)
Cooling
- flange connections for JW inlet and outlet
- Jacket water and SCAC thermostats
- Electrical jacket water and aftercooler coolant pump
Exhaust
- Exhaust waste gate for the CG260-12
- Closed crankcase ventilation system
Fuel system
- Independently controlled cylinder monitoring and ignition system
- Electronic fuel metering valve
- Pre-chamber spark plugs
Generator
- Busbar connections
- Closed-coupled generator result in no torque transmission to the base frame
- Anti-condensation space heater
- Reactive droop
- 3-phase sensing and KVAR/PF control
- Grid code generator
- Winding temperature detectors
Starting/Charging
- Compressed air engine start
General
- Crankshaft vibration damper and guard
Optional Equipment
Cooling
- CHP skid
Grid Code Compliance
- 50Hz: Germany, Belgium, Great Britain, Italy, Poland, and Netherlands
