The CP7 Vibratory Soil Compactor is suitable for many applications from site preparation to compacting sub-bases for parking lots or roadways and is ideal for water and sewer trench work.
Cat
CP7 Vibratory Soil Compactor
Overview
Photos
-
CS7 Vibratory Soil Compactor -
CS7 Vibratory Soil Compactor -
CS7 Vibratory Soil Compactor -
CS7 Vibratory Soil Compactor
Features
Comfortable and Ergonomic Operator Station
- The ROPS/FOPS configuration features hand rails that enclose the platform area. A multi-position steering wheel adjusts for comfort. An adjustable, pivoting vinyl seat with seat belt and integrated operator's display is comfortable and keeps controls and operating information within easy reach. A 12-volt adapter provides power for personal electronic devices. A floor mat reduces vibrations. A specially designed fixture allows the operator to securely store lunch boxes. Cup holders are provided on the steering column. Large mirrors provide excellent views to the rear of the machine. An additional mirror package for enhanced rear visibility is available as an option.
- A color LCD display unit is standard. The display functions as a gauge cluster as well as provides diagnostics and additional data to the operator. Machines that are equipped with Cat Compaction Control output compaction measurements to the display as well.
- The standard operator seat design rotates to the right 20 degrees and integrates the propel stick and control console on the right armrest. The design allows the controls and display to comfortably follow the operator as the seat is rotated. ROPS/FOPS configured machines will have a vinyl, all-weather seat. ROPS/FOPS Cab configured machines will have a cloth seat. A deluxe, high-back, air-ride seat is available as an option on Cab-equipped machines. The seat has a retractable seat belt.
- The ROPS/FOPS Cab is an enhanced design that provides greater comfort for the operator. The cab features a multi-position steering wheel that adjusts for operator comfort. An adjustable, pivoting cloth seat with a high-visibility orange seat belt and integrated operator display keeps controls and operating information within easy reach. A 12-volt adapter provides power for personal electronic devices. A floor mat reduces vibration. Glass panels and large exterior mirrors provide excellent views to the rear of the machine. Operator comfort is enhanced with climate control, including a heater and air conditioning. Large windows on the door and right side of the cab open wide for maximum ventilation. A cloth headliner provides a smart, finished appearance. An interior mirror package and a deluxe, high-back cloth seat are available as an option.
Comfortable and Ergonomic Operator Station
- The ROPS/FOPS configuration features hand rails that enclose the platform area. A multi-position steering wheel adjusts for comfort. An adjustable, pivoting vinyl seat with seat belt and integrated operator's display is comfortable and keeps controls and operating information within easy reach. A 12-volt adapter provides power for personal electronic devices. A floor mat reduces vibrations. A specially designed fixture allows the operator to securely store lunch boxes. Cup holders are provided on the steering column. Large mirrors provide excellent views to the rear of the machine. An additional mirror package for enhanced rear visibility is available as an option.
- A color LCD display unit is standard. The display functions as a gauge cluster as well as provides diagnostics and additional data to the operator. Machines that are equipped with Cat Compaction Control output compaction measurements to the display as well.
- The standard operator seat design rotates to the right 20 degrees and integrates the propel stick and control console on the right armrest. The design allows the controls and display to comfortably follow the operator as the seat is rotated. ROPS/FOPS configured machines will have a vinyl, all-weather seat. ROPS/FOPS Cab configured machines will have a cloth seat. A deluxe, high-back, air-ride seat is available as an option on Cab-equipped machines. The seat has a retractable seat belt.
- The ROPS/FOPS Cab is an enhanced design that provides greater comfort for the operator. The cab features a multi-position steering wheel that adjusts for operator comfort. An adjustable, pivoting cloth seat with a high-visibility orange seat belt and integrated operator display keeps controls and operating information within easy reach. A 12-volt adapter provides power for personal electronic devices. A floor mat reduces vibration. Glass panels and large exterior mirrors provide excellent views to the rear of the machine. Operator comfort is enhanced with climate control, including a heater and air conditioning. Large windows on the door and right side of the cab open wide for maximum ventilation. A cloth headliner provides a smart, finished appearance. An interior mirror package and a deluxe, high-back cloth seat are available as an option.
Outstanding Visibility
- Unobstructed view to the drum allows operator to see compaction path for proper overlap, verifying scraper efficiency, and watching for obstructions.

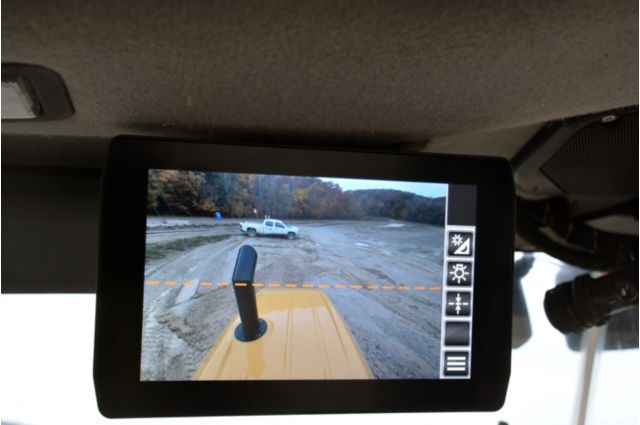

- The rear vision camera enhances visibility for more complete operator control and safety.
Outstanding Visibility
- Unobstructed view to the drum allows operator to see compaction path for proper overlap, verifying scraper efficiency, and watching for obstructions.
- The rear vision camera enhances visibility for more complete operator control and safety.
Reliable Vibratory System
- Vibratory soil compactors deliver enhanced compaction performance as the result of an increase in amplitude. Maximum amplitude provides a greater ability to put compaction energy into the ground.
- Padfoot drums are ideal for compacting cohesive and semi-cohesive materials and can be equipped with either Cat exclusive oval pads or conventional square pads. The oval faced design provides deeper lift penetration, contributing to better overall compaction in cohesive soils than other pad designs. The square faced design provides optimal performance on semi-cohesive soils. It has a higher surface area, which allows it to create a good surface seal; but the larger face area does not allow deep lift penetration.

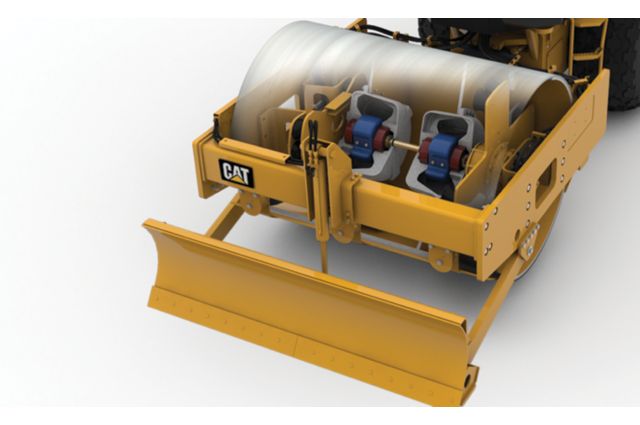

- Performance models utilize the proven Cat pod-style vibratory system. The system design significantly reduces the risk of contamination common to conventional designs that employ metal weights. Providing unrivaled reliability and performance, the Cat pod-style vibratory system is virtually maintenance free, with the first scheduled maintenance period at 3 years or 3,000 hours.
- When vibration is engaged, vibration will cease as the compactor slows beneath a predetermined speed. When propel resumes vibration recommences at a predetermined speed. This feature contributes to uniform, high-quality work.
Reliable Vibratory System
- Vibratory soil compactors deliver enhanced compaction performance as the result of an increase in amplitude. Maximum amplitude provides a greater ability to put compaction energy into the ground.
- Padfoot drums are ideal for compacting cohesive and semi-cohesive materials and can be equipped with either Cat exclusive oval pads or conventional square pads. The oval faced design provides deeper lift penetration, contributing to better overall compaction in cohesive soils than other pad designs. The square faced design provides optimal performance on semi-cohesive soils. It has a higher surface area, which allows it to create a good surface seal; but the larger face area does not allow deep lift penetration.
- Performance models utilize the proven Cat pod-style vibratory system. The system design significantly reduces the risk of contamination common to conventional designs that employ metal weights. Providing unrivaled reliability and performance, the Cat pod-style vibratory system is virtually maintenance free, with the first scheduled maintenance period at 3 years or 3,000 hours.
- When vibration is engaged, vibration will cease as the compactor slows beneath a predetermined speed. When propel resumes vibration recommences at a predetermined speed. This feature contributes to uniform, high-quality work.
Easy to Service
- The cooling package tilts for easy cleaning. Normal cleaning ensures that the cooling systems protects the engine to full capacity.
- Long service intervals contribute to more productivity and lower owning and operating costs. The vibratory system scheduled oil change interval is 3 years/3,000 hours. The hydraulic oil service interval is 3,000 hours. Engine oil service is every 500 hours.
- The hitch features sealed-for-life bearings that never need greasing.
Easy to Service
- The cooling package tilts for easy cleaning. Normal cleaning ensures that the cooling systems protects the engine to full capacity.
- Long service intervals contribute to more productivity and lower owning and operating costs. The vibratory system scheduled oil change interval is 3 years/3,000 hours. The hydraulic oil service interval is 3,000 hours. Engine oil service is every 500 hours.
- The hitch features sealed-for-life bearings that never need greasing.
Powertrain
- Automatic Speed Control allows the operator to select a maximum working speed. Once selected, the speed can consistently be reached by engaging the propel lever to the full stroke. Consistent speed contributes to compaction quality making it easier to maintain compaction uniformity.
- Performance Vibratory Soil Compactors are equipped with a large cooling package and a variable speed fan. The system helps keep operating temperatures within optimal ranges. The variable speed fan reduces power draw by only operating at the speed that is necessary to cool the system. The reduced power draw contributes to more efficient use of fuel. Vibratory Soil Compactors feature engines that offers enhanced efficiency, better serviceability, ample power, and less noise. This innovative combination yields cleaner combustion and delivers steady power in all operating conditions with optimal fuel efficiency.
- Equipped with Eco-mode, a function which helps to economize the use of fuel. When machine idles for a predetermined amount of time, Eco-mode is engaged and the engine rpm is lowered. When the propel is engaged, higher engine speeds resume. For certain applications, Eco-mode can be engaged to operate the engine at lower rpm than normal. The lower engine speed results in less fuel burn. Eco-mode can also be programmed to shut down the engine entirely after a user-defined amount of time.
- The exclusive Cat dual pump propel system provides steady hydraulic flow for unmatched gradeability and blade function and now has been enhanced with electronic control for even better performance. The dual pump propel system provides separate hydraulic flow to the rear wheels and drum for exceptional tractive effort in thick lifts, soft underfoot conditions or steep slope applications and allows for superior control on a grade in forward and reverse.
Powertrain
- Automatic Speed Control allows the operator to select a maximum working speed. Once selected, the speed can consistently be reached by engaging the propel lever to the full stroke. Consistent speed contributes to compaction quality making it easier to maintain compaction uniformity.
- Performance Vibratory Soil Compactors are equipped with a large cooling package and a variable speed fan. The system helps keep operating temperatures within optimal ranges. The variable speed fan reduces power draw by only operating at the speed that is necessary to cool the system. The reduced power draw contributes to more efficient use of fuel. Vibratory Soil Compactors feature engines that offers enhanced efficiency, better serviceability, ample power, and less noise. This innovative combination yields cleaner combustion and delivers steady power in all operating conditions with optimal fuel efficiency.
- Equipped with Eco-mode, a function which helps to economize the use of fuel. When machine idles for a predetermined amount of time, Eco-mode is engaged and the engine rpm is lowered. When the propel is engaged, higher engine speeds resume. For certain applications, Eco-mode can be engaged to operate the engine at lower rpm than normal. The lower engine speed results in less fuel burn. Eco-mode can also be programmed to shut down the engine entirely after a user-defined amount of time.
- The exclusive Cat dual pump propel system provides steady hydraulic flow for unmatched gradeability and blade function and now has been enhanced with electronic control for even better performance. The dual pump propel system provides separate hydraulic flow to the rear wheels and drum for exceptional tractive effort in thick lifts, soft underfoot conditions or steep slope applications and allows for superior control on a grade in forward and reverse.
Versatile Compaction Technologies
- Optional MicroVibe™ compaction system offers ultra-low vibration ideal for working near high-sensitive areas or structures.
- Accelerometer-based (CMV) measurement technology available to help operator determine when compaction has been completed to specification for greater productivity and uniform compaction quality.
Versatile Compaction Technologies
- Optional MicroVibe™ compaction system offers ultra-low vibration ideal for working near high-sensitive areas or structures.
- Accelerometer-based (CMV) measurement technology available to help operator determine when compaction has been completed to specification for greater productivity and uniform compaction quality.
Specifications
-
Weights
Spec Value Operating Weight - With Cab 16990 lb Weight - Drum with ROPS/FOPS Canopy 8139 lb Weight - Drum with Cab 8293 lb Operating Weight - With ROPS/FOPS Canopy 16541 lb -
Operating Specifications
Spec Value Compaction Width 66 in Turning Radius - Inside Drum Edge 10 ft Drum Width 66 in Travel Speed - Maximum 6.8 mile/h Curb Clearance 14.6 in Ground Clearance 15.2 in -
Engine
Spec Value Gross Power 99.8 hp Net Power - ISO 9249 92.7 hp Engine Model C3.6 Stroke 4.72 in Net Power - SAE J1349:2011 91.7 hp Bore 3.9 in -
Dimensions
Spec Value Drum Width 66 in Overall Width 5.9 ft Overall Length - With Blade Option 18.4 ft Overall Length 16.7 ft Maximum Height 9.3 ft Wheel Base 8.5 ft Drum Diameter - Over Pads 48.1 in Overall Width - With Blade Option 7 ft -
Vibratory System
Spec Value Nominal Amplitude - High 0.061 in Centrifugal Force - Maximum 29990 lb Vibratory Frequency - Standard 1915 V/m Centrifugal Force - Minimum 15056 lb Variable Frequency Option Range 23.3-31.9 Hz (1400-1915 vpm) Nominal Amplitude - Low 0.031 in -
Service Refill Capacities
Spec Value Fuel Tank Capacity 37 gal (US)
Standard Equipment
OPERATOR ENVIRONMENT
- ROPS/FOPS Canopy with Handrails, Floor Mat, Internal Rear View Mirror, Exterior Rear View Mirrors
- Vinyl Adjustable Seat with Integrated Console and LCD Display with Lockable Vandalism Guard
- Adjustable Tilting Steering Column with Integrated Cup Holders
- Rear Vision Camera System
- Seat Belt
- 12-volt Power Outlet
- Horn, Backup Alarm
VIBRATORY SYSTEM
- Padfoot Drum
- Dual Amplitude, Single Frequency
- Pod-Style Eccentric Weight Housings
- Auto-vibe Function
- Front Adjustable Steel Scraper
- Universal Bumper
POWER TRAIN
- Cat C3.4B Engine
- Air Cleaner, Dual Element
- Two-Speed Throttle Switch, Eco-mode and Automatic Speed Control
- Dual Propel Pumps; One for Drum Drive, One for Rear Axle
- Fuel Filter, Water Separator, Priming Pump, Water Indicator
- Tilting Radiator/Hydraulic Oil Cooler
- Dual Braking System
- Two-speed Hydrostatic Transmission
ELECTRICAL
- 12 volt Electrical System
- 150 ampere Alternator
- 60 Cold-cranking Amps Battery Capacity
OTHER
- Product LinkTM
- Sight Gauges for Hydraulic Oil Level and Radiator Coolant Level
- S-O-SSM Sampling Valves: Engine Oil, Hydraulic Oil and Coolant
Optional Equipment
OPERATOR ENVIRONMENT
- ROPS/FOPS Cab with Climate Control
- Sun Visor
VIBRATORY SYSTEM
- Leveling Blade
- Variable Frequency
- Dual Adjustable Steel Scrapers
- Recording Module for Vibration Frequency
POWER TRAIN
- Transmission Guard
- Bio-oil Factory Fill
TECHNOLOGY SOLUTIONS
- Map - SBAS GNSS Mapping
- Connect - Cloud and Machine Connectivity
OTHER
- Upgraded Halogen Light Package
- Rotating Amber Beacon
