CS11 GC Vibratory Soil Compactor
Overview
Photos
-

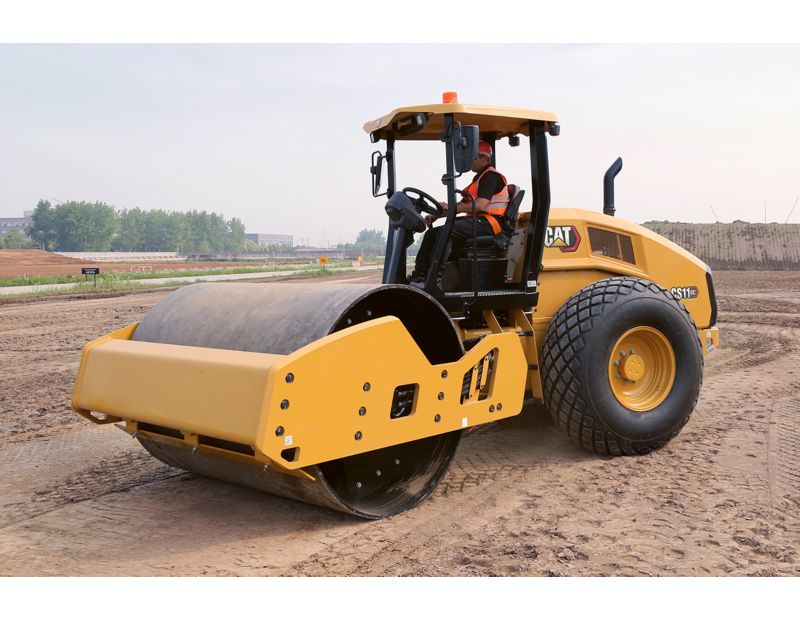

CS11 GC Vibratory Soil Compactor -
CS11 GC Vibratory Soil Compactor -
CS11 GC Vibratory Soil Compactor -
CS11 GC Vibratory Soil Compactor -
CS11 GC Vibratory Soil Compactor -
CS11 GC Vibratory Soil Compactor -
CS11 GC Vibratory Soil Compactor -
CS11 GC Vibratory Soil Compactor
Videos
360° View
Exterior
Features
Reliable Power
- The propel system is driven by a single pump design and is ideal for flat to moderate grades.
- Powered by a Cat® C3.6 engine that meets U.S. EPA Tier 4 Final, EU Stage V, Korea Stage V and Japan 2014 emission standards.
- Eco-mode limits engine RPM helping to reduce fuel consumption.
- Engine Idle Shutdown Timer reduces fuel burn and unnecessary idle time by shutting down the machine after a pre-set idling period.
Reliable Power
- The propel system is driven by a single pump design and is ideal for flat to moderate grades.
- Powered by a Cat® C3.6 engine that meets U.S. EPA Tier 4 Final, EU Stage V, Korea Stage V and Japan 2014 emission standards.
- Eco-mode limits engine RPM helping to reduce fuel consumption.
- Engine Idle Shutdown Timer reduces fuel burn and unnecessary idle time by shutting down the machine after a pre-set idling period.
Comfortable and Ergonomic Operator Station
- The ISO-mounted operator station and rubber floormats help reduce noise and vibration for comfort during operation.
- Easy to use controls are grouped by function and a large display informs operators of machine performance.
- The seat, armrest and steering column are adjustable for all-day comfort.
- Operators are protected from the elements by a standard equipped ROPS/FOPS canopy or an optional climate-controlled ROPS/FOPS cab with hinged glass windows.
- Cab configurations can be upgraded to a deluxe high back air-ride seat to enhance operator comfort.
Comfortable and Ergonomic Operator Station
- The ISO-mounted operator station and rubber floormats help reduce noise and vibration for comfort during operation.
- Easy to use controls are grouped by function and a large display informs operators of machine performance.
- The seat, armrest and steering column are adjustable for all-day comfort.
- Operators are protected from the elements by a standard equipped ROPS/FOPS canopy or an optional climate-controlled ROPS/FOPS cab with hinged glass windows.
- Cab configurations can be upgraded to a deluxe high back air-ride seat to enhance operator comfort.
Safety Features
- Angled steps, handrails, and an antiskid surface help provide stability during entry and exit of the operator station.
- Internal and external mirrors are available to provide the operator with a broad view of the jobsite.
- Enhance visibility with an optional rear vision camera with large color touchscreen display for more complete operator control and safety.
- Optional operator presence seat sensor and seat belt switch.
Safety Features
- Angled steps, handrails, and an antiskid surface help provide stability during entry and exit of the operator station.
- Internal and external mirrors are available to provide the operator with a broad view of the jobsite.
- Enhance visibility with an optional rear vision camera with large color touchscreen display for more complete operator control and safety.
- Optional operator presence seat sensor and seat belt switch.
Excellent Compaction Performance
- The exclusive pod-style eccentric weight vibratory system is designed to provide high reliability, smooth performance and low noise levels with a 3-year, 3000-hour maintenance interval.
- High static linear loads and amplitudes.
- The optional Traction Control system helps improve traction in soft underfoot conditions such as sand or loose material.
- The Auto-vibe function helps operators easily maintain consistent, high-quality compaction.
- Enhance machine versatility with the addition of an oval or square padfoot shell kit, allowing your smooth drum machine to compact semi-cohesive and cohesive materials.
- An optional MicroVibe™ drum configuration provides a lower range of amplitude than the standard drum for vibration-sensitive applications.
- Upgrade the CS11 GC to a heavier size class with an optional XT weight kit for use on a wider range of jobsites and lift thicknesses.
Excellent Compaction Performance
- The exclusive pod-style eccentric weight vibratory system is designed to provide high reliability, smooth performance and low noise levels with a 3-year, 3000-hour maintenance interval.
- High static linear loads and amplitudes.
- The optional Traction Control system helps improve traction in soft underfoot conditions such as sand or loose material.
- The Auto-vibe function helps operators easily maintain consistent, high-quality compaction.
- Enhance machine versatility with the addition of an oval or square padfoot shell kit, allowing your smooth drum machine to compact semi-cohesive and cohesive materials.
- An optional MicroVibe™ drum configuration provides a lower range of amplitude than the standard drum for vibration-sensitive applications.
- Upgrade the CS11 GC to a heavier size class with an optional XT weight kit for use on a wider range of jobsites and lift thicknesses.
Enhance Quality and Productivity with Technology
- Optional Cat Compact technologies help you consistently meet compaction targets faster, more uniformly, and in fewer passes – saving on fuel and reducing rework and material costs.
- Exclusive Machine Drive Power (MDP) is an energy-based measurement and can be used on all soil types in either static or vibratory mode.
- Compaction Meter Value (CMV) is an accelerometer-based measurement for granular soils, measuring only when the vibratory system is active.
Enhance Quality and Productivity with Technology
- Optional Cat Compact technologies help you consistently meet compaction targets faster, more uniformly, and in fewer passes – saving on fuel and reducing rework and material costs.
- Exclusive Machine Drive Power (MDP) is an energy-based measurement and can be used on all soil types in either static or vibratory mode.
- Compaction Meter Value (CMV) is an accelerometer-based measurement for granular soils, measuring only when the vibratory system is active.
Virtually Maintenance Free
- The articulated hitch with sealed-for-life bearings does not require routine maintenance.
- Ground-level access to all maintenance points for easy service and fluid sampling.
- Monitor fluid conditions with regular sampling to help extend change intervals up to 500 hours engine oil, 3000 hours eccentric housing and hydraulic oil, and 12000 hours coolant.
- Extended maintenance intervals not only reduce downtime but decrease the amount of fluid and filters that are replaced over the life of the machine.
- VisionLink® takes the guesswork out of managing your entire fleet–regardless of size or equipment manufacturer*–by providing maintenance needs, machine hours, location, fuel usage, idle time, diagnostic codes, and more through interactive dashboards on your mobile device or desktop, helping you make informed decisions that lower costs, simplify maintenance, and improve safety and security on your jobsite.
- Remote Flash allows you to update onboard software without a technician being present, allowing you to initiate software updates when convenient, increasing your overall operating efficiency**
- Remote Troubleshoot allows your Cat dealer to perform diagnostic testing on your connected machine remotely**
* Data field availability can vary by equipment manufacturer and is provided through an application programming interface (API).
** Must be within cell range coverage.
Virtually Maintenance Free
- The articulated hitch with sealed-for-life bearings does not require routine maintenance.
- Ground-level access to all maintenance points for easy service and fluid sampling.
- Monitor fluid conditions with regular sampling to help extend change intervals up to 500 hours engine oil, 3000 hours eccentric housing and hydraulic oil, and 12000 hours coolant.
- Extended maintenance intervals not only reduce downtime but decrease the amount of fluid and filters that are replaced over the life of the machine.
- VisionLink® takes the guesswork out of managing your entire fleet–regardless of size or equipment manufacturer*–by providing maintenance needs, machine hours, location, fuel usage, idle time, diagnostic codes, and more through interactive dashboards on your mobile device or desktop, helping you make informed decisions that lower costs, simplify maintenance, and improve safety and security on your jobsite.
- Remote Flash allows you to update onboard software without a technician being present, allowing you to initiate software updates when convenient, increasing your overall operating efficiency**
- Remote Troubleshoot allows your Cat dealer to perform diagnostic testing on your connected machine remotely**
* Data field availability can vary by equipment manufacturer and is provided through an application programming interface (API).
** Must be within cell range coverage.
Sustainability
- The Cat C3.6 is available in configurations that meet U.S. EPA Tier 4 Final, EU Stage V, Korea Stage V and Japan 2014 emission standards.
- Cat diesel engines are required to use ULSD (ultra-low sulfur diesel fuel with 15 ppm of sulfur or less) or ULSD blended with the following lower-carbon intensity fuels* up to: 20% biodiesel FAME (fatty acid methyl ester) or 100% renewable diesel, HVO (hydrotreated vegetable oil) and GTL (gas-to-liquid) fuels Refer to guidelines for successful application. Please consult your Cat dealer or "Caterpillar Machine Fluids Recommendations" (SEBU6250) for details.
*Tailpipe greenhouse gas emissions from lower-carbon intensity fuels are essentially the same as traditional fuels. - Auto engine idle shutdown helps reduce unnecessary fuel burn and greenhouse gas emissions by allowing the engine to automatically go into idle mode when the machine is not working.
- A well-trained operator is worth the investment. Skilled operators benefit your bottom line by maximizing productivity, avoiding costly downtime, and maintaining jobsite safety - which can help to improve fuel efficiency and reduce greenhouse gas emissions.
- Extended maintenance intervals not only reduce downtime but can decrease the amount of fluid and filters that are replaced over the life of the machine. Extend change intervals up to 500 hours engine oil, 3000 hours eccentric housing and hydraulic oil, and 12000 hours coolant.
- Performance and safety can be augmented with standard and optional cameras that are viewed on in-cab displays.
- Cat Compact technologies help you consistently meet compaction targets faster, more uniformly, and in fewer passes - saving on fuel and reducing rework and material costs.
- Cat Scheduled Oil Sampling (S•O•S℠) Services helps reveal excessive wear, contaminated fluids or other "unseen" issues that can shorten component life. In many cases, you can extend oil and coolant change intervals by using fluid monitoring. Consult your Cat dealer or the machine's operation and maintenance manual for more information.
Sustainability
- The Cat C3.6 is available in configurations that meet U.S. EPA Tier 4 Final, EU Stage V, Korea Stage V and Japan 2014 emission standards.
- Cat diesel engines are required to use ULSD (ultra-low sulfur diesel fuel with 15 ppm of sulfur or less) or ULSD blended with the following lower-carbon intensity fuels* up to: 20% biodiesel FAME (fatty acid methyl ester) or 100% renewable diesel, HVO (hydrotreated vegetable oil) and GTL (gas-to-liquid) fuels Refer to guidelines for successful application. Please consult your Cat dealer or "Caterpillar Machine Fluids Recommendations" (SEBU6250) for details.
*Tailpipe greenhouse gas emissions from lower-carbon intensity fuels are essentially the same as traditional fuels. - Auto engine idle shutdown helps reduce unnecessary fuel burn and greenhouse gas emissions by allowing the engine to automatically go into idle mode when the machine is not working.
- A well-trained operator is worth the investment. Skilled operators benefit your bottom line by maximizing productivity, avoiding costly downtime, and maintaining jobsite safety - which can help to improve fuel efficiency and reduce greenhouse gas emissions.
- Extended maintenance intervals not only reduce downtime but can decrease the amount of fluid and filters that are replaced over the life of the machine. Extend change intervals up to 500 hours engine oil, 3000 hours eccentric housing and hydraulic oil, and 12000 hours coolant.
- Performance and safety can be augmented with standard and optional cameras that are viewed on in-cab displays.
- Cat Compact technologies help you consistently meet compaction targets faster, more uniformly, and in fewer passes - saving on fuel and reducing rework and material costs.
- Cat Scheduled Oil Sampling (S•O•S℠) Services helps reveal excessive wear, contaminated fluids or other "unseen" issues that can shorten component life. In many cases, you can extend oil and coolant change intervals by using fluid monitoring. Consult your Cat dealer or the machine's operation and maintenance manual for more information.
Specifications
-
Engine
Spec Value Gross Power 122.9 hp Engine Power - ISO 14396 120.7 hp Net Power - ISO 9249 112.2 hp Net Power - SAE J1349:2011 111.2 hp Note (1) Net power advertised is the power available at the engine flywheel when equipped with a fan at maximum speed, air cleaner, clean emissions module, and alternator. Engine Model Cat® C3.6 Emissions U.S. EPA Tier 4 Final, EU Stage V, Korea Stage V, Japan 2014 Stroke 4.7 in Bore 3.9 in -
Weights
Spec Value Operating Weight - With Cab 24775 lb Operating Weight - With ROPS/FOPS Canopy 24435 lb Weight - Drum with Cab 13549 lb Weight - Drum with ROPS/FOPS Canopy 13453 lb Note (1) Operating weights are approximate and consider full fluids and 75 kg (165 lb) operator. Cab weights include heat and air conditioning. -
Vibratory System
Spec Value Nominal Amplitude - High 0.079 in Nominal Amplitude - Low 0.039 in Centrifugal Force - Maximum 56200 lb Centrifugal Force - Minimum 33500 lb Static Linear Load - With Cab 161.3 lb/in Static Linear Load - With ROPS/FOPS Canopy 160.1 lb/in -
Dimensions
Spec Value Compaction Width 84 in Overall Length 18.7 ft Overall Width 7.5 ft Maximum Height 9.9 ft Drum Diameter 60.4 in Wheel Base 9.8 ft -
Operating Specifications
Spec Value Ground Clearance 20.4 in Curb Clearance 19.4 in Turning Radius - Inside Drum Edge 12.7 ft Travel Speed - Maximum 6.8 mile/h Drum Width 84 in -
Service Refill Capacities
Spec Value Fuel Tank Capacity 56.3 gal (US) DEF Tank 5 gal (US) Cooling System 4.9 gal (US) Engine Oil - With Filter 3.1 gal (US) Eccentric Weight Housings (combined) 6.9 gal (US) Axle and Final Drives 2.6 gal (US) Hydraulic Tank 6.1 gal (US) -
Sustainability
Spec Value Recyclability 94%
Standard Equipment
NOTE
- Standard and optional equipment may vary. Consult your Cat dealer for details.
OPERATOR ENVIRONMENT
- ROPS/FOPS Canopy with Handrails, Floor Mat, Interior Rear View Mirror
- Vinyl Suspension Seat
- Adjustable Tilting Steering Column
- High Visibility 76 mm (3 in) Seat Belt
- 12-Volt Power Outlet
- Horn, Backup Alarm
VIBRATORY SYSTEM
- Smooth Drum
- Pod-Style Eccentric Weight Housings
- Dual Amplitude, Dual Frequency
- Auto-vibe Function
- Rear Adjustable Steel Scraper
TECHNOLOGY SOLUTIONS
- VisionLink®
- Remote Flash
- Remote Troubleshoot
- Remote Disable
POWERTRAIN
- Cat® C3.6 Engine
- Single Propel Pump
- Fuel Filter, Water Separator, Priming Pump, Water Indicator
- Eco-Mode
- Radiator/Hydraulic Oil Cooler
- Dual Braking System
- Two-Speed Hydrostatic Transmission
- Limited Slip Differential
ELECTRICAL
- 12-Volt Electrical System
- 150-Amp Alternator
- 900 Cold-cranking Amps Battery Capacity
- Battery Disconnect Switch
OTHER
- Scheduled Oil Sampling (S·O·S℠) Ports: Engine Oil, Hydraulic Oil, and Coolant
- Sight Gauges for Hydraulic Oil Level and Radiator Coolant Level
- Working Lights (2 Forward, 2 Rear)
Optional Equipment
NOTE
- Standard and optional equipment may vary. Consult your Cat dealer for details.
OPERATOR ENVIRONMENT
- ROPS/FOPS Cab with Climate Control, Floor Mat, Exterior Rear View Mirrors
- Deluxe High-back Air-ride Seat (Cab)
- Sun/Debris Shields (Canopy)
- Roll-down Sun Screen (Cab)
- Interior Rear View Mirror (Cab)
- Exterior Rear View Mirrors (Canopy)
- Rear View Camera with Color Touchscreen Display
- Seat Belt Switch
- Sound Reduction Kit
VIBRATORY SYSTEM
- Removable Shell Kit - Oval or Square Pads
- MicroVibe™
- Dual Adjustable Steel Scrapers
- Dual Adjustable Polyurethane Scrapers
TECHNOLOGY SOLUTIONS
- Measure - Machine Drive Power (MDP)
- Measure - Compaction Meter Value (CMV)
- Machine Speed Sensor
POWERTRAIN
- Traction Control Basic
- Transmission Guard
OTHER
- High Ambient Hydraulic Oil (Factory Fill)
- Flotation Tread or Lug Tread Tires
- Upgraded Lighting Package (4 Forward, 4 Rear)
- Amber Rotating Beacon
- XT Weight Kit
