The Cat® CB8 Asphalt Compactor offers enhancements that simplify operation, provide versatility, and deliver excellent fuel economy. Rotary dials, and 360º seating make this compactor a perfect match for urban streets, highways, and other intermediate-type applications.
Cat
CB8
Overview
Photos
-

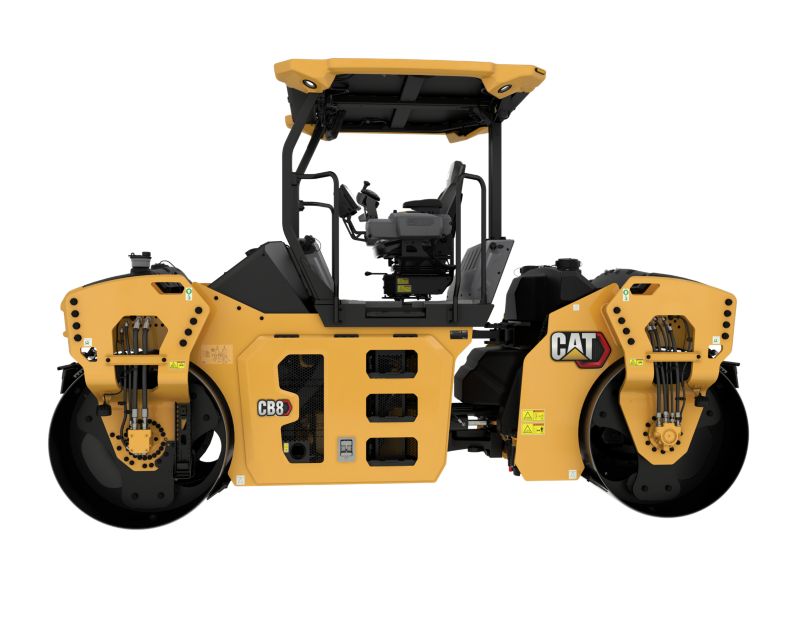

CB8 Tandem Vibratory Roller -
CB8 Tandem Vibratory Roller -
CB8 Tandem Vibratory Roller -
CB8 Tandem Vibratory Roller -
CB8 Tandem Vibratory Roller
Videos
360° View
Exterior
360° Exterior View. Double clickon the image to zoom in on any area of the product.
Interior
360° Interior View. Double clickon the image to zoom in on any area of the product.
Features
Simple to Operate, Comfortable, Easy to Learn
- Large, full-color displays keep the operator informed of machine functions including water and fuel levels, impact spacing, and mat temperature.
- Innovative hand-wheel steering technology delivers precise control and good forward visibility.
- Easily activate the vibratory system, water spray system and optional drum offset with the multi function propel handle.
- Machine functions with LED indicators have been independently grouped for simplified control and quick activation.
- Rotary dials with green light indicators provide a quick visual reference and fingertip feel for easy adjustment to speed control and water spray timers.
- ROPS and Cab options deliver excellent comfort and visibility. The cab option offers heat and air conditioning as standard equipment.
Simple to Operate, Comfortable, Easy to Learn
- Large, full-color displays keep the operator informed of machine functions including water and fuel levels, impact spacing, and mat temperature.
- Innovative hand-wheel steering technology delivers precise control and good forward visibility.
- Easily activate the vibratory system, water spray system and optional drum offset with the multi function propel handle.
- Machine functions with LED indicators have been independently grouped for simplified control and quick activation.
- Rotary dials with green light indicators provide a quick visual reference and fingertip feel for easy adjustment to speed control and water spray timers.
- ROPS and Cab options deliver excellent comfort and visibility. The cab option offers heat and air conditioning as standard equipment.
Work Safer with Enhanced Visibility
- Optional top down, 360º viewing utilizes cameras mounted in each corner of the ROPS for good work-zone visibility. This option utilizes a high definition display mounted to a swivel on the upper left side of the ROPS/Cab.
- Optional fore and aft cameras mounted in the front and rear bumpers provide good visibility when approaching obstacles. The camera view is integrated into the main operating display.
- Optimize sight lines with the 360º seating option; always face the direction of travel.
- LED lighting delivers excellent job site illumination while conserving energy. Strategically placed lighting illuminates the sides of the machine, drum surfaces, and drum edges.
- A green-light beacon mounted on the ROPS/Cab provides indication of seat belt utilization. Beacon illumination can be tailored to "ON" or "OFF" when in compliance.
Work Safer with Enhanced Visibility
- Optional top down, 360º viewing utilizes cameras mounted in each corner of the ROPS for good work-zone visibility. This option utilizes a high definition display mounted to a swivel on the upper left side of the ROPS/Cab.
- Optional fore and aft cameras mounted in the front and rear bumpers provide good visibility when approaching obstacles. The camera view is integrated into the main operating display.
- Optimize sight lines with the 360º seating option; always face the direction of travel.
- LED lighting delivers excellent job site illumination while conserving energy. Strategically placed lighting illuminates the sides of the machine, drum surfaces, and drum edges.
- A green-light beacon mounted on the ROPS/Cab provides indication of seat belt utilization. Beacon illumination can be tailored to "ON" or "OFF" when in compliance.
Easy Vibratory System Setup
- Two-amplitude/two frequency vibratory system automatically optimizes amplitude and frequency with a single switch for simple thin/thick lift operation.
- Reach compaction goals with automatic speed control; green indicators help ensure travel speed matches the correct impact spacing.
- The automatic vibratory on/off feature activates or deactivates the vibratory system according to the propel lever position to help prevent over compaction when changing direction or when coming to a stop. The system is adjustable through the "Job Aids" menu in the display.
- Built-in application profiles can be created and saved to offer quick, repeatable setup for vibratory frequency, propel mode, impact spacing, water spray timer, and water spray mode.
- Edge management options include an edge cutter wheel that vertically slices the asphalt for easy removal to enhance joint matching capability, while bevel options provide sloped edge profiles.
Easy Vibratory System Setup
- Two-amplitude/two frequency vibratory system automatically optimizes amplitude and frequency with a single switch for simple thin/thick lift operation.
- Reach compaction goals with automatic speed control; green indicators help ensure travel speed matches the correct impact spacing.
- The automatic vibratory on/off feature activates or deactivates the vibratory system according to the propel lever position to help prevent over compaction when changing direction or when coming to a stop. The system is adjustable through the "Job Aids" menu in the display.
- Built-in application profiles can be created and saved to offer quick, repeatable setup for vibratory frequency, propel mode, impact spacing, water spray timer, and water spray mode.
- Edge management options include an edge cutter wheel that vertically slices the asphalt for easy removal to enhance joint matching capability, while bevel options provide sloped edge profiles.
Better Fuel Economy
- The C3.6 engine delivers 74.4 kW (100 hp) of power and meets U.S. EPA Tier 4 Final and EU Stage V emission standards.
- The Cat® C3.6 engine and standard Eco-mode combine to provide good fuel economy.
- Eco-mode modifies engine speed based on load requirements; high amplitude vibration utilizes higher engine speeds, while static rolling conserves fuel and operates at low engine speed with lower sound levels.
Better Fuel Economy
- The C3.6 engine delivers 74.4 kW (100 hp) of power and meets U.S. EPA Tier 4 Final and EU Stage V emission standards.
- The Cat® C3.6 engine and standard Eco-mode combine to provide good fuel economy.
- Eco-mode modifies engine speed based on load requirements; high amplitude vibration utilizes higher engine speeds, while static rolling conserves fuel and operates at low engine speed with lower sound levels.
Ensure Mat Coverage with Compaction Control
- Pass-count and Temperature Mapping combines infrared temperature sensors with GPS mapping to keep the operator informed of current asphalt temperatures, machine position, pass-count, and layer coverage. The mapping display provides an enhanced on-screen visual for easy recognition and touchscreen capability for simplified setup.
- Compaction Meter Value (CMV) utilizes a drum mounted accelerometer to measure the combined stiffness of the asphalt layer, base layer, and sub-base layer to indicate road structure quality beneath the surface.
Ensure Mat Coverage with Compaction Control
- Pass-count and Temperature Mapping combines infrared temperature sensors with GPS mapping to keep the operator informed of current asphalt temperatures, machine position, pass-count, and layer coverage. The mapping display provides an enhanced on-screen visual for easy recognition and touchscreen capability for simplified setup.
- Compaction Meter Value (CMV) utilizes a drum mounted accelerometer to measure the combined stiffness of the asphalt layer, base layer, and sub-base layer to indicate road structure quality beneath the surface.
Prevent Build-Up, Keep the Drum Surfaces Wet
- The high capacity water tank with dual fill ports provides long durations between refills. An optional step can be mounted to the left-side rear drum support to assist with refills.
- Dual water pumps provide back-up capability and alternate with the direction of travel to maximize service life.
- Triple filtration helps prevent clogs with filters located at the fill point, water pumps, and spray nozzles.
- The automatic on/off feature deactivates the water spray system when the propel lever moves to neutral and activates the system when the propel lever moves from neutral. System setup is located in the "Settings" menu. A simple rotary dial provides adjustable spray settings and intermittent modes that help conserve water.
- The integrated freeze protection kit (optional) provides protection in cold temperatures when the machine is not in use.
Prevent Build-Up, Keep the Drum Surfaces Wet
- The high capacity water tank with dual fill ports provides long durations between refills. An optional step can be mounted to the left-side rear drum support to assist with refills.
- Dual water pumps provide back-up capability and alternate with the direction of travel to maximize service life.
- Triple filtration helps prevent clogs with filters located at the fill point, water pumps, and spray nozzles.
- The automatic on/off feature deactivates the water spray system when the propel lever moves to neutral and activates the system when the propel lever moves from neutral. System setup is located in the "Settings" menu. A simple rotary dial provides adjustable spray settings and intermittent modes that help conserve water.
- The integrated freeze protection kit (optional) provides protection in cold temperatures when the machine is not in use.
VisionLink®
- VisionLink® is a cloud based software application that provides data to your desktop or mobile device, taking the guesswork out of fleet management with key insights to maximize performance – regardless of fleet size or equipment manufacturer.
- The system provides maintenance needs, machine hours, location, fuel usage, idle time, diagnostic codes, and other machine data to your mobile device, desktop or through an API to other software applications.
VisionLink®
- VisionLink® is a cloud based software application that provides data to your desktop or mobile device, taking the guesswork out of fleet management with key insights to maximize performance – regardless of fleet size or equipment manufacturer.
- The system provides maintenance needs, machine hours, location, fuel usage, idle time, diagnostic codes, and other machine data to your mobile device, desktop or through an API to other software applications.
Specifications
-
Weights
Spec Value Operating Weight - With Cab 20580 lb Maximum Operating Weight with Cab 21396 lb Standard Operating Weight with ROPS 20006 lb Maximum Operating Weight with ROPS 20822 lb -
Operating Specifications
Spec Value Standard Compaction Width 67 in Maximum Compaction Width 73 in Static Linear Load - With Cab 159 lb/in Static Linear Load - With ROPS/FOPS 155 lb/in Travel Speed - Maximum 7 mile/h -
Dimensions
Spec Value Overall Length 179 in Overall Width 78 in Height - With ROPS/FOPS or Cab 118 in Wheel Base 130 in Drum Diameter 44 in -
Engine
Spec Value Engine Model Cat® C3.6 Engine Power (1) 100 hp -
Vibratory System
Spec Value Drum Width 67 in Centrifugal Force per Drum - Maximum 17018 lb Centrifugal Force per Drum - Minimum 11285 lb Nominal Amplitude - High 0.026 in Nominal Amplitude - Low 0.012 in Vibration Selection Independent per drum, front only, rear only, both -
Service Refill Capacities
Spec Value Fuel Tank Capacity 36 gal (US) Water Spray Tank Capacity 195 gal (US)
Standard Equipment
Operating Environment
- 180º seat positioning w/ sliding station
- Adjustable armrests
- Full-color display with touchscreen operation
- Platform ROPS/FOPS
- Propel lever w/ 4-button control
- Steering wheel - fixed position, left side
- Suspension seat - no heat
- Seatbelt - 76 mm (3 in) high visibility
- Vandalism protection
Technology
- Visionlink®
- Remote flash
- Remote troubleshooting
Powertrain
- C3.6 4-cylinder
Electrical System
- 150 amp alternator
- 12-volt charging system
- Automotive-type fuse system
- Batteries - maintenance free
- Cat® Electronic Technician (Cat ET)
- Remote start / charge receptacle
Vibratory System
- Two amplitude/two frequency - both drums
Service and Maintenance
- 2 year/2000 hour oscillatory vibration system service interval
- 3 year/3000 hour conventional vibratory system service interval
- Grouped filters with ground level access
- Maintenance-free hitch
- Remote access drains
- Sampling ports for Scheduled Oil Sampling (S•O•S℠)
- Sight gauges - engine coolant and hydraulic oil
Safety
- Alarm, back up
- Horn, warning (front and rear)
- LED working lights
- Steps, front drum fuel refill
- Warning, LED safety beacons
Optional Equipment
Operating Environment
- 360° seat positioning w/sliding station
- Platform - Cab
- Steering wheel - elevated position, left side
- Suspension seat - with heat
- Seat headrest
Technology
- CMV accelerometer - front drum
- GNSS Mapping - temperature and passcount
- Infrared asphalt temperature sensors
Powertrain
- Hitch - offset
- Hydraulic oil - biodegradeable
Vibratory System
- Edge Management - Cutoff, Bevel
- Mats - cocoa
- Mats - water distribution
Service and Maintenance
- Freeze protection - water spray system
Safety
- Alarm, back up
- Cameras – 360º viewing _ROPS mounted
- Cameras – front and rear bumber mounted
- LED working lights with turn signals
- LED auxiliary lighting - 1000/2000 lumin
- Mirror package
- Steps, rear drum water spray refill
