The CB2.9 is a 2.9 to 3 metric ton compactor with 1300 mm (51 in) drums. It’s a versatile machine that can be used as the only vibratory roller on small sized jobs or on larger jobs as a support roller for high-production rollers. Its high amplitude and drum width give it the capacity to achieve a tons-per-day production rate that make it an excellent match for shoulders, small parking lots, lane additions, or other similar sized jobs.
Cat
CB2.9 Utility Compactor
Overview
Photos
-

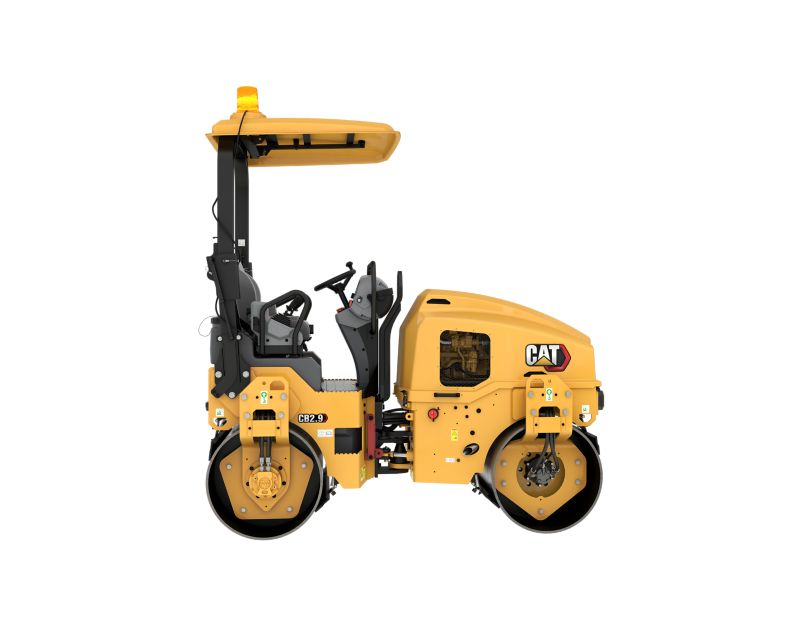

CB2.9 Utility Compactor -

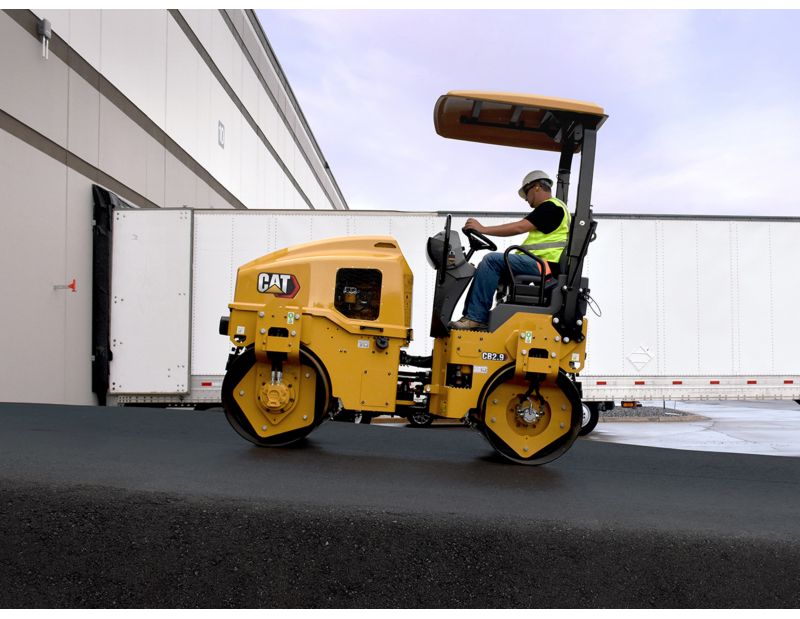

CB2.9 Utility Compactor -
Utility Compactor Selection Chart
360° View
Exterior
360° Exterior View. Double click on the image to zoom in on any of the products.
Specifications
-
Weights
Spec Value Standard Operating Weight with ROPS 6415 lb Maximum Weight at Front Drum 3060 lb Maximum Operating Weight with ROPS 6415 lb Maximum Operating Weight with Cab 6415 lb Maximum Weight at Rear Drum 3355 lb Static Linear Load 59.8 lb/in -
Dimensions
Spec Value Compaction Width 51.2 in Drum Diameter 28.3 in Overall Length 99.2 kg/cm Wheel Base 70.9 in Overall Width 55.6 in Height - ROPS 70.8 in Drum Width 51.2 in -
Operating Specifications
Spec Value Static Linear Load 59.8 lb/in Turning Radius - Inside Drum Edge 98 in Travel Speed - Maximum 7.5 mile/h Ground Clearance 11.2 in Turning Radius - Outside Drum Edge 149.2 in Curb Clearance 17.8 in Drum Offset 2 in Speed Range 12 km/hr 7.5 mph -
Engine
Spec Value Engine Power (1) 48.2 hp Engine Model C1.7T -
Vibratory System
Spec Value Frequency 3840 VPM Nominal Amplitude - High 0.02 in Centrifugal Force - Maximum 8109 lb/ft -
Service Refill Capacities
Spec Value Water Spray Tank Capacity 52.8 gal (US) Fuel Tank Capacity 14.37 gal (US)
Standard Equipment
OPERATOR ENVIRONMENT
- Adjustable Suspension Seat with Operator Presense Switch
- ROPS Folding
- Seat Belt - 75 mm (3 in) high visibility orange
- Operator Console w/ Water Tank Gauge, Emergency Stop, and Glove Box
- 12-volt Power Outlet
- Horn, Backup Alarm
COMPACTON SYSTEM
- Folding Scrapers
- Vibe Selection - front, rear, or both
- Pressurized, Triple-Filtration Spray System with Test Mode
POWERTRAIN
- Auto Engine Off and Auto Warmup
- Air Cleaner, Dual Element
- Engine Belt Guard
TECHNOLOGY
- Telematics
ELECTRICAL
- LED Working Lights
OTHER
- Vandal Protection - lockable hood, fuel fill, and controls cover
- Machine Life and Tiedowns
- Offsets Hitch
Optional Equipment
OPERATOR ENVIRONMENT
- ROPS Fixed
- Sun Canopy
- Seat - Side Shift
- Dual Propel Levers
COMPACTON SYSTEM
- Fixed Scrapers
- Cocoa Mats
- Edge Cutter Ready
- Water Sprayer Antifreeze Kit
- Ballast Kit - 200 kg (440 lb)
- Ballast Kit - 400 kg (880 lb)
POWERTRAIN
- Traction Control
TECHNOLOGY
- Remote Flash / Troubleshoot
- CMV - Compaction Measurement Value
ELECTRICAL
- Battery Disconnect
- LED Roading Lights
- Rotating Amber Beacon
OTHER
- Biodegradeable Hydraulic Oil
- Bumpers
- Single Point Lift
- Custom Paint
