The Cat® 420 XE Backhoe Loader delivers exceptional performance, increased fuel efficiency, superior hydraulic system, versatility and an updated operator station.
Caterpillar

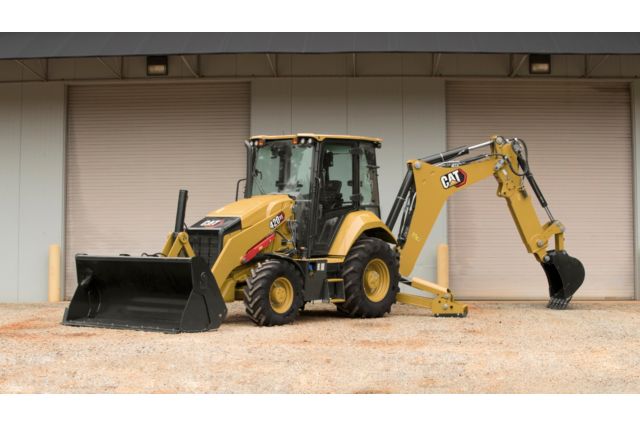

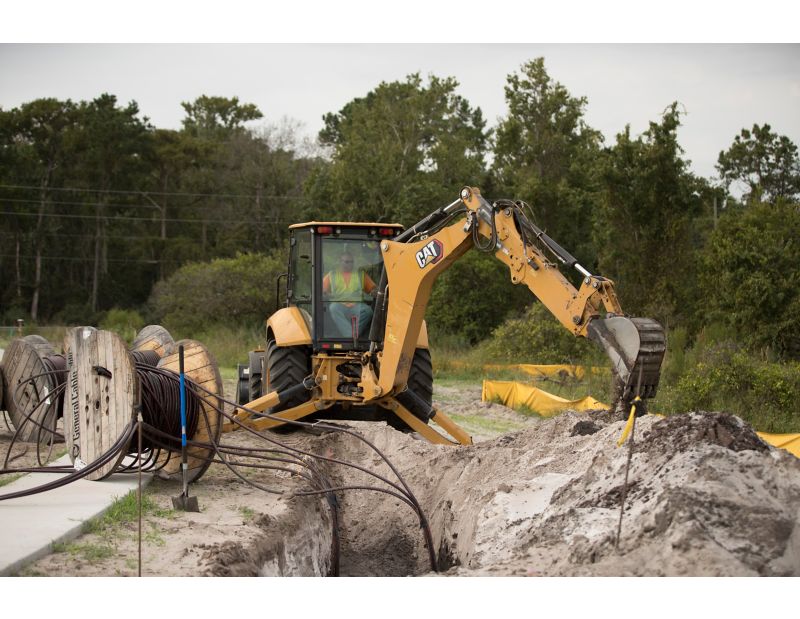

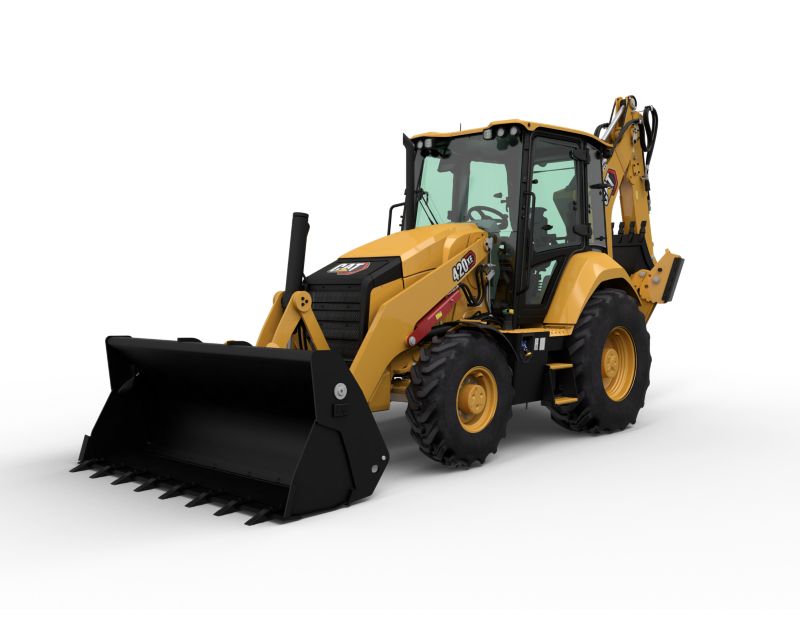

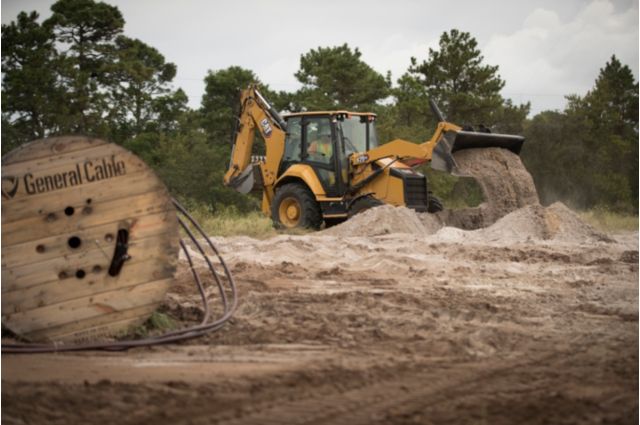

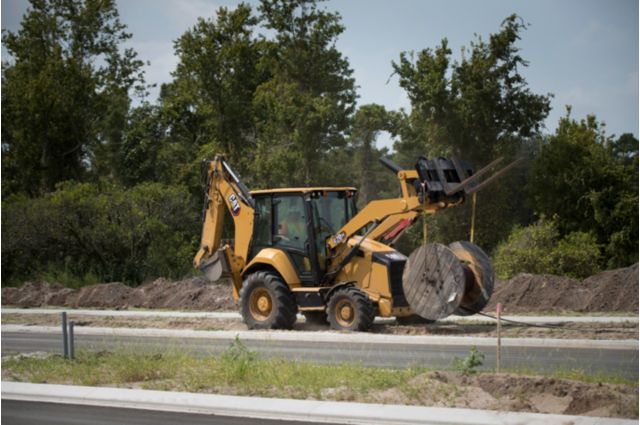

420 XE Backhoe Loader
Overview
Photos
-

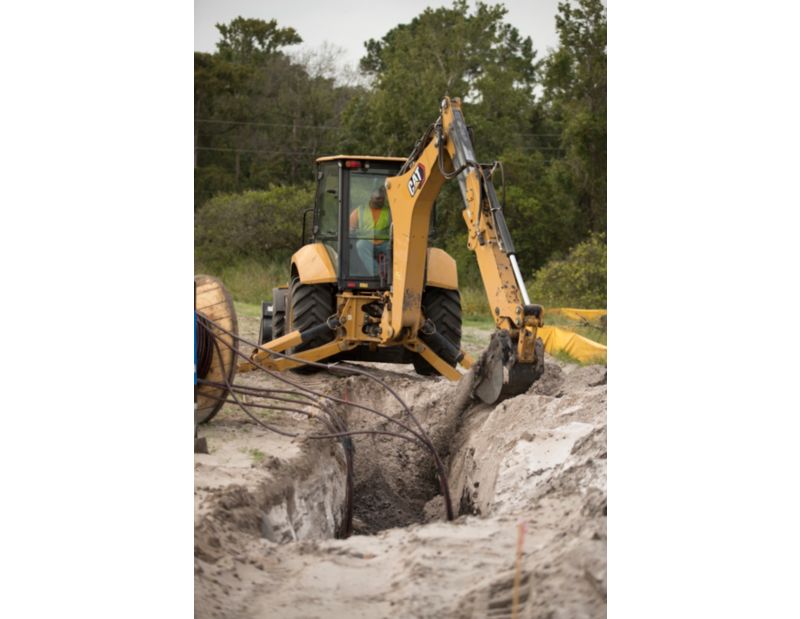

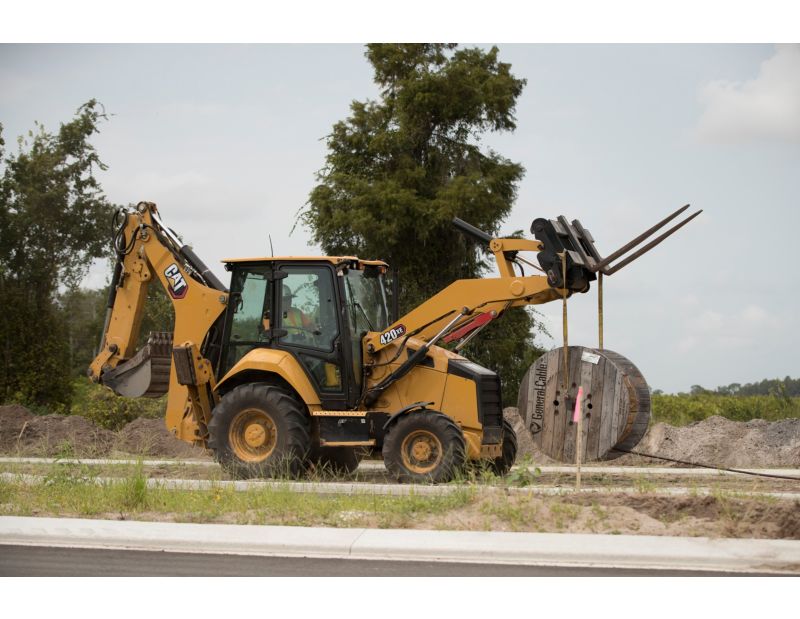

420 XE Backhoe Loader -
420 XE Backhoe Loader -
420 XE Backhoe Loader -
420 XE Backhoe Loader -
420 XE Backhoe Loader -
420 XE Backhoe Loader -
420 XE Backhoe Loader
Videos
Features
Ergonomic Operator Station
Adjustable Seat Mounted Controls improve ergonomics by increasing operator comfort and legroom. Operators have Loader and Backhoe Controls in the palm of their hands, whether they are facing the Loader, the Backhoe, or sitting off set for better visibility. The new Spring Applied Hydraulically Released (SAHR) Parking Brake is controlled by simply pressing a button.
Ergonomic Operator Station
Adjustable Seat Mounted Controls improve ergonomics by increasing operator comfort and legroom. Operators have Loader and Backhoe Controls in the palm of their hands, whether they are facing the Loader, the Backhoe, or sitting off set for better visibility. The new Spring Applied Hydraulically Released (SAHR) Parking Brake is controlled by simply pressing a button.
Load Sensing Hydraulics
The Cat Backhoe Loader’s load sensing piston pump provides full hydraulic lifting and digging forces at any engine speed. Variable flow pump matches hydraulic power to work demands.
Load Sensing Hydraulics
The Cat Backhoe Loader’s load sensing piston pump provides full hydraulic lifting and digging forces at any engine speed. Variable flow pump matches hydraulic power to work demands.
Machine Versatility
The all new Integrated Tool Carrier (IT Coupler) for Single Tilt Loader Arm configurations are available from the factory or for simple field installation. The Cat Backhoe Loader with Integrated Tool Carrier (IT Coupler) will be the most versatile machine on the job site providing quick connection to a variety of Cat Attachments.
Machine Versatility
The all new Integrated Tool Carrier (IT Coupler) for Single Tilt Loader Arm configurations are available from the factory or for simple field installation. The Cat Backhoe Loader with Integrated Tool Carrier (IT Coupler) will be the most versatile machine on the job site providing quick connection to a variety of Cat Attachments.
Cat Attachments
A large portfolio of Backhoe Loader Attachments, including but not limited to, Quick Couplers, Thumbs, assorted Buckets, and Brooms are available from the factory or for field installation. Cat Backhoe Loaders will be “Dirt Ready” upon delivery.
Cat Attachments
A large portfolio of Backhoe Loader Attachments, including but not limited to, Quick Couplers, Thumbs, assorted Buckets, and Brooms are available from the factory or for field installation. Cat Backhoe Loaders will be “Dirt Ready” upon delivery.
Lift Performance
The redesigned boom cylinder increases lift performance by 15%.
Lift Performance
The redesigned boom cylinder increases lift performance by 15%.
Sustainability
- The Cat® C3.6 engine meets U.S. EPA Tier 4 Final and EU Stage V emission standards.
- Save fuel and reduce your greenhouse gas emissions with efficiency features such as operator control modes (420 XE/440/450/432/444 models only) selectable through the display and with fuel management modes.
- Extended maintenance intervals not only reduce downtime but decrease the amount of fluid and filters that are replaced over the life of the machine.
- Auto Idle helps reduce unnecessary fuel burn and greenhouse gas emissions by allowing the engine to automatically go into idle mode when the machine is not working. Available on all models with pilot or E/H controls.
Sustainability
- The Cat® C3.6 engine meets U.S. EPA Tier 4 Final and EU Stage V emission standards.
- Save fuel and reduce your greenhouse gas emissions with efficiency features such as operator control modes (420 XE/440/450/432/444 models only) selectable through the display and with fuel management modes.
- Extended maintenance intervals not only reduce downtime but decrease the amount of fluid and filters that are replaced over the life of the machine.
- Auto Idle helps reduce unnecessary fuel burn and greenhouse gas emissions by allowing the engine to automatically go into idle mode when the machine is not working. Available on all models with pilot or E/H controls.
Specifications
-
Engine
Spec Value Net Power - SAE J1349 92 HP (68 kW) / 103 HP (76 kW) Displacement 220 in³ Engine Model C3.6 74.5 kW (100 hp) Electronic Turbo Intercooled Net Power Rating at 2,200 rpm - ISO 9249 91 hp Power Rating Conditions - No De-Rating Required Up To 10000 ft Net Torque Rise - 1,400 rpm - SAE J1349 47% Ratings at 2,200 rpm - Gross Power SAE J1995 102 hp Ratings at 2,200 rpm - Gross Power ISO 14396 100 hp Net Power Rating at 2,200 rpm - SAE J1349 92 hp Net Torque Rise - 1,400 rpm - SAE J1349 322 ft-lb Emissions Engine meets Tier 4 Final/Stage V emission standards. Net Peak Power - 1,800 rpm - ISO 9249 105 hp Dimensions - Bore 3.86 in Dimensions - Stroke 4.72 in Net Peak Power Rating @ 1,800 rpm - SAE J1349 105 hp -
Weights
Spec Value Operating Weight - Maximum 24251 lb Cab - ROPS/FOPS 320 lb Ride Control 33 lb Air Conditioning 99 lb Note Machine configuration: standard stick hoe, OROPS canopy, AWD power shift transmission, 0.96 m³ (1.25 yd³) GP (General Purpose) loader bucket, 610 mm (24 in) standard duty hoe bucket, front 340/80-18 and rear 500/70-24 tires, 240 kg (530 lb) counterweight, 80 kg (176 lb) operator, full fuel tank. MP Bucket (0.96 m3/1.25 yd3) - With Fold-Over Forks 2017 lb Operating Weight - Maximum - ROPS Capacity 24251 lb MP Bucket (0.96 m3/1.25 yd3) - Without Fold-Over Forks 1642 lb Power-Shift Transmission STD Extendible Stick (excludes ft. counterweight) 595 lb Counterweights, base - Maximum 1014 lb Counterweights, base 256 lb Loader QC 540 lb All-Wheel Drive STD Operating Weight (estimated) 17271 lb Counterweights, base - Stackable, one 529 lb -
Backhoe
Spec Value Dig Depth - Standard 14 ft -
Transmission
Spec Value Power-Shift Transmission with LTC - Optional - Forward - 2nd 5.8 mile/h Power-Shift Transmission with LTC - Optional - Forward - 6th LTC* 25 mile/h Power-Shift Transmission with LTC - Optional - Forward - 5th LTC 18 mile/h Power Shift Transmission - Standard - Forward - 3rd 12 mile/h Power Shift Transmission - Standard - Reverse - 2nd 7.7 mile/h Power-Shift Transmission with LTC - Optional - Reverse - 3rd 17 mile/h Power-Shift Transmission - Optional - Forward - 2nd 5.8 mile/h Power-Shift Transmission - Optional - Reverse - 1st 3.7 mile/h Power-Shift Transmission with LTC - Optional - Forward - 4th 12 mile/h Power Shift Transmission - Standard - Forward - 1st 3.7 mile/h Power-Shift Transmission with LTC - Optional - Forward - 5th 17 mile/h Power-Shift Transmission - Optional - Reverse - 2nd 7.7 mile/h Power-Shift Transmission with LTC - Optional - Reverse - 1st 3.7 mile/h Power-Shift Transmission with LTC - Optional - Forward - 1st 3.7 mile/h Power-Shift Transmission - Optional - Reverse - 3rd 17 mile/h Power Shift Transmission - Standard - Reverse - 1st 3.7 mile/h Power-Shift Transmission - Optional - Forward - 3rd 8 mile/h Power Shift Transmission - Standard - Reverse - 3rd 17 mile/h Power-Shift Transmission with LTC - Optional - Forward - 6th 25 mile/h Power Shift Transmission - Standard - Forward - 4th 25 mile/h Power Shift Transmission - Standard - Forward - 2nd 5.8 mile/h Power-Shift Transmission with LTC - Optional - Forward - 3rd 8 mile/h Power-Shift Transmission with LTC - Optional - Reverse - 2nd 7.7 mile/h Power-Shift Transmission - Optional - Forward - 6th 25 mile/h Power-Shift Transmission - Optional - Forward - 4th 12 mile/h Power-Shift Transmission - Optional - Forward - 5th 17 mile/h Power-Shift Transmission - Optional - Forward -1st 3.7 mile/h Note (2) *Limited by engine speed to 40 km/h (25 mph). Note (1) Travel speeds of two wheel drive backhoe loader at full throttle, when equipped with 500/70-24 rear tires. -
Axle Ratings
Spec Value Rear Axle - Dynamic 22046 lb Front Axle, AWD - Dynamic 19841 lb Front Axle, AWD - Static 51808 lb Rear Axle - Static 58422 lb -
Hydraulic System
Spec Value Pump Type Variable-flow, Axial Piston System Pressure - Loader 3626 psi Pump Capacity at 2,200 rpm 49.4 gal/min System Pressure - Backhoe 3626 psi Type Closed Center -
Steering
Spec Value Bore 2.6 in Turning Circle - (inner wheel not braked) - Outside Front Wheels 26.92 ft Turning Circle - (inner wheel not braked) - Outside Widest Loader Bucket 35.25 ft Power Steering Hydrostatic Rod Diameter 1.6 in Type Front Wheel Steering Stroke 4.2 in Axle Oscillation 11° Cylinder One Double-Acting -
Service Refill Capacities
Spec Value Fuel Tank 42.3 gal (US) Engine Oil - With Filter 2.4 gal (US) Hydraulic Tank 11.1 gal (US) Hydraulic System 25.1 gal (US) Cooling System with Air Conditioning 4.8 gal (US) Rear Axle 4.2 gal (US) Diesel Exhaust Fluid (DEF) 5 gal (US) Rear Axle - Planetaries 0.4 gal (US) Transmission - Power Shift - AWD 5 gal (US) Transmission - Power Shuttle - AWD 4.8 gal (US) Front Axle (AWD) - Planetaries 0.2 gal (US) Front Axle (AWD) 2.9 gal (US)
Standard Equipment
STANDARD EQUIPMENT
- Adjustable auxiliary controls, backhoe loader
- Air cleaner
- Alarm, back-up
- Audible system fault alarm
- Automatic Engine Speed Control (AESC)
- Battery, maintenance-free, 850 CCA
- Battery disconnect switch
- Boom transport lock
- Brace, lift cylinder
- Brake, parking, Spring Applied Hydraulically Released (SAHR)
- Brakes, hydraulically boosted, oil disc, dual pedals, interlocking
- Bucket level indicator
- Canopy, ROPS/FOPS
- Cat cushion swing system
- Coat restraint
- Coolant/antifreeze, extended life
- Dome light (cab only)
- Diagnostic port for engine, machine and gauge cluster Electronic Control Modules
- Differential lock, loader joystick
- Drink holders, two
- Engine, Cat C3.6 (Direct Injection Turbocharged), meets Tier 4 Final/Stage V emission standards, Selective Catalytic Reduction, Diesel Oxidation Catalyst (DOC)
- Engine enclosure, sound suppression, removable side panels
- Face seals, O-ring
- Fan, suction and guard
- Fast reversing shuttle, all gears
- Fenders, rear
- Filters, spin-on: fuel, engine oil, transmission oil, water separator
- Filters, bowl and cartridge: hydraulic fluid
- Flashing hazards/signal lights
- Floor mat
- Four wheel drive
- Four wheel drive shaft guard
- Fuel tank, fully enclosed
- Fully hinged front grill for cooling package cleaning access
- Gauge cluster: coolant temperature, fuel level, torque converter temperature, DEF level
- Ground level fuel fill and DEF fill
- Halogen lights, working (2 front, 2 rear)
- High ambient cooling package
- Hood lock, inside cab
- Hydraulic Lock Out, loader, backhoe, auxiliary hydraulics
- Hydraulic hose, XT™
- Hydraulic oil cooler
- Hydraulic oil level sight gauge
- Hydraulic valves, loader 2 function
- Hydraulic valves, backhoe 4 function
- Hydraulics, load sensing with variable displacement piston pump
- Indicator lights: wait to start, water in fuel, engine warning, warning lamp, emissions module malfunction, low battery/charging system warning, high hydraulic oil temperature: LCD warnings: engine oil pressure, machine locked, service due, air filter blocked, high coolant temperature, auto idle shutdown, high torque converter temperature, hydraulic filter bypass
- Instrument panel lights
- Key start/stop system
- LCD operator display with soft key controls: engine speed, hour meter, gear/direction, battery voltage, hydraulic oil temperature, torque converter temperature, coolant temperature, trip totals (fuel and hours), lifetime totals (fuel and hours), operator settings (units, brightness, programmable hoe auxiliary flow), service mode diagnostics, maintenance intervals, ECM/system info
- Loader, EH Parallel Lift
- Loader, Programmable Kick Out
- Loader, Programmable Return To Dig
- Loader, single tilt
- Mirror, interior, rearview
- One-touch low idle
- Open circuit breather
- Pattern changer, in cab
- Power receptacle, 12 volt, 2 internal, 1 external
- Power receptacle, 5 volt USB, 1 internal
- Power steering, hydrostatic
- Product Link™, satellite, network manager
- Product Link, cellular, network manager
- Seat belt, retractable, 51 mm (2 in)
- Seat mounted joystick controls: backhoe and loader, EH operated, excavator style with pattern changer
- Socket, two roof
- Stabilizers, EH Control, Auto-UP
- Stabilizer shoes, street
- Steering knob
- Seat, air suspension, vinyl cover, with armrest
- Starting system, glow plugs
- Steering column, tilting, telescopic
- Storage compartment, lockable
- Storage tray
- Stop and tail lights
- Swing transport lock
- Tires
- Toolbox, external, lockable
- Torque converter
- Throttle, hand and foot, electronic
- Transmission, 4 speed, powershift
- Transmission neutralizer switch
- Transport tie-downs
- Vandalism locks, four
- Warning horn, electric
Optional Equipment
OPTIONAL EQUIPMENT
- Auxiliary hydraulics, loader, adjustable flow
- Auxiliary hydraulics, rear, adjustable flow
- Battery, additional, 850 CCA
- Cab, deluxe
- Cold weather fuel (–30° C/–22° F)
- Cold weather package, including additional battery, engine block heater, radiator antifreeze, cold weather fuel (–30° C/–22° F) and mounting for an ether bottle
- Counterweights, 115 kg (255 lb), 240 kg (530 lb) or 460 kg (1,015 lb)
- Fenders, front with integral steps
- Guard, boom protection plate
- Guard, stabilizer, rock
- Hydraulic valves, loader with auxiliary roller thumb control (3rd valve for MP or Quick Coupler)
- Hydraulic valves, backhoe (5th and 6th function)
- Hydraulic lines, combined function auxiliary
- LED lights, working (2 front, 2 rear)
- Quick Coupler, hydraulic, dual lock
- Quick Coupler, manual, dual lock
- Quick Coupler, manual, pin lock
- Radio and CD player, Bluetooth®
- Ride Control
- Rotating beacon, magnetic mount
- Seat, air suspension, fabric with armrest
- Seat, air suspension, fabric with armrest, heated
- Seat belt, retractable, 75 mm (3 in)
- Security system, Bluetooth
- Security system, operator display
- Side mirrors, cab, external
- Single Tilt Loader Coupler, Integrated Tool Carrier (IT) Interface
- Stabilizer pads, reversible
- Stick, extendible
- Touch screen LCD Display: engine speed, hour meter, gear/direction, battery voltage, hydraulic oil temperature, torque converter temperature, coolant temperature, trip totals (fuel and hours), lifetime totals (fuel and hours), operator settings (units, brightness, programmable hoe auxiliary flow), service mode diagnostics, maintenance intervals, ECM/system info
- Transmission, AutoShift with lock-up torque converter, 6 speed
- Vandalism protection, gauge cover
- Work Tool Attachments such as buckets, forks, material handling arms, augers, hammers, brooms, cold planers and vibratory plate compactors. See your Cat dealer for more information.

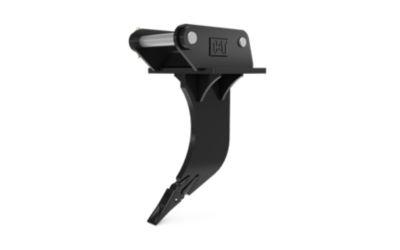

Related Products

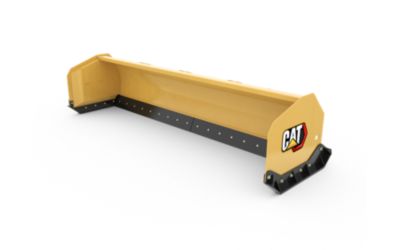

3.66 m (12 ft), Bucket Receiver, Steel Trip Edge
3.05 m (10 ft), IT Coupler, Steel Trip Edge
3.66 m (12 ft), IT Coupler, Steel Trip Edge
3.05 m (10 ft), Bucket Receiver, Steel Trip Edge
3.66 m (12 ft), IT Coupler, Rubber Trip Edge
3.05 m (10 ft), IT Coupler, Rubber Trip Edge
3.66 m (12 ft), Bucket Receiver, Rubber Trip Edge
3.05 m (10 ft), Bucket Receiver, Rubber Trip Edge
3.0 m (10 ft), IT Coupler
3.7 m (12 ft), IT Coupler
2.7 m (9 ft), IT Coupler

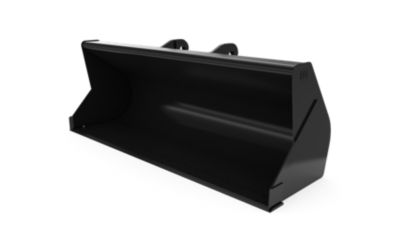

Grading Buckets
1500 mm (59 in), Pin On, Bolt-On Cutting Edge
1200 mm (47 in), Pin On, Bolt-On Cutting Edge
1550 mm (61 in), IT Coupler, Class III

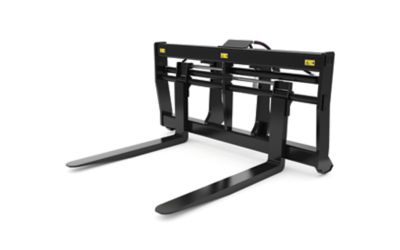

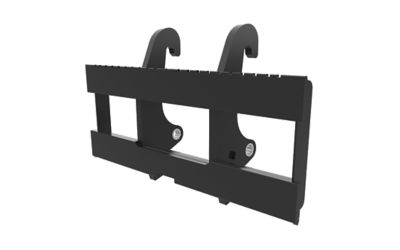

Pallet Fork Carriages
1219 mm (48 in), Pin On
1372 mm (54 in), Pin On
1524 mm (60 in), Pin On

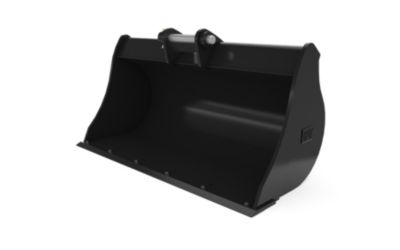

Ditch Cleaning Buckets

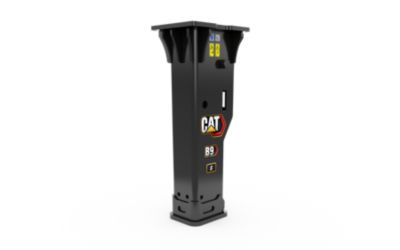

B9s
B8s
B8
B6s
B6

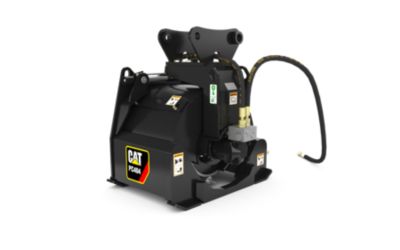

PC404
Cold Planers
1220 mm (48 in), IT Coupler, Class III
Pallet Forks
Soil Excavation Buckets
457 mm (18 in) Pin On
610 mm (24 in) Pin On
762 mm (30 in) Pin On
914 mm (36 in) Pin On
Soil Excavation Buckets
General Purpose Buckets
1.14 m3 (1.5 yd3), IT Coupler, Base Edge
1.15 m3 (1.5 yd3), Single Tilt Pin On, Base Edge
1.0 m3 (1.3 yd3), Single Tilt Pin On, Base Edge
1.1 m3 (1.4 yd3), Single Tilt Pin On, Base Edge
1.0 m3 (1.31 yd3), IT Coupler, Base Edge
1.0 m3 (1.3 yd3), Single Tilt Pin On, Bolt-On Teeth
0.96 m3 (1.3 yd3), Single Tilt Pin On, Bolt-On Cutting Edge
1.1 m3 (1.4 yd3), Single Tilt Pin On, Bolt-On Cutting Edge
1.15 m3 (1.5 yd3), Single Tilt Pin On, Bolt-On Teeth
1.15 m3 (1.5 yd3), Single Tilt Pin On, Bolt-On Cutting Edge
1.0 m3 (1.3 yd3), Single Tilt Pin On, Bolt-On Cutting Edge
1.1 m3 (1.4 yd3), Single Tilt Pin On, Bolt-On Teeth
0.96 m3 (1.3 yd3), Single Tilt Pin On, Base Edge
General Purpose Buckets
Multi-Purpose Buckets
1.1 m3 (1.4 yd3), IT Coupler, Base Edge
1.0 m3 (1.3 yd3), IT Coupler, Base Edge
1.1 m3 (1.4 yd3), Single Tilt Pin On, Base Edge, Forks
1.03 m3 (1.3 yd3), Single Tilt Pin On, Base Edge
1.1 m3 (1.4 yd3), Single Tilt Pin On, Base Edge
1.03 m3 (1.3 yd3), Single Tilt Pin On, Bolt-On Teeth
1.03 m3 (1.3 yd3), Single Tilt Pin On, Bolt-On Cutting Edge, Forks
1.1 m3 (1.4 yd3), Single Tilt Pin On, Bolt-On Cutting Edge, Forks
1.03 m3 (1.3 yd3), Single Tilt Pin On, Bolt-On Teeth, Forks
1.1 m3 (1.4 yd3), Single Tilt Pin On, Bolt-On Cutting Edge
1.03 m3 (1.3 yd3), Single Tilt Pin On, Bolt-On Cutting Edge
1.1 m3 (1.4 yd3), Single Tilt Pin On, Bolt-On Teeth, Forks
1.1 m3 (1.4 yd3), Single Tilt Pin On, Bolt-On Teeth
1.03 m3 (1.3 yd3), Single Tilt Pin On, Base Edge, Forks
Multi-Purpose Buckets

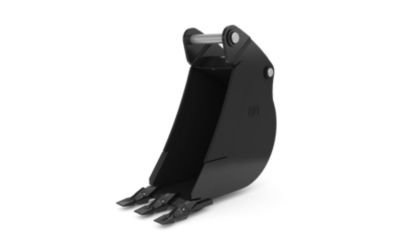

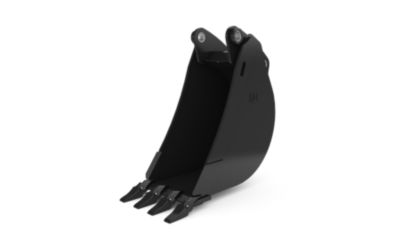

Heavy Duty Buckets
305 mm (12 in), 79 L (2.8 ft3), Pin On, Weld-On Adapters
406 mm (16 in), 105 L (3.7 ft3), Pin On, Weld-On Adapters
457 mm (18 in), 119 L (4.2 ft3), Pin On, Weld-On Adapters
610 mm (24 in), 176 L (6.2 ft3), Pin On, Weld-On Adapters
762 mm (30 in), 232 L (8.2 ft3), Pin On, Weld-On Adapters
914 mm (36 in), 292 L (10.3 ft3), Pin On, Weld-On Adapters
300 mm (12 in), 96 L (3.4 ft3), Pin Lock, Weld-On Adapters
406 mm (16 in), 120 L (4.2 ft3), Pin Lock, Weld-On Adapters
457 mm (18 in), 139 L (4.9 ft3), Pin Lock, Weld-On Adapters
610 mm (24 in), 207 L (7.3 ft3), Pin Lock, Weld-On Adapters
762 mm (30 in), 280 L (9.9 ft3), Pin Lock, Weld-On Adapters
914 mm (36 in), 340 L (12 ft3), Pin Lock, Weld-On Adapters
Heavy Duty Buckets
High Capacity Buckets
457 mm (18 in), 180 L (6.4 ft3), Pin On, Weld-On Adapters
914 mm (36 in), 380 L (13.4 ft3), Pin On, Weld-On Adapters
406 mm (16 in), 160 L (5.7 ft3), Pin Lock, Weld-On Adapters
610 mm (24 in), 260 L (9.2 ft3), Pin Lock, Weld-On Adapters
457 mm (18 in), 180 L (6.4 ft3), Pin Lock, Weld-On Adapters
914 mm (36 in), 460 L (16.2 ft3), Pin Lock, Weld-On Adapters
762 mm (30 in), 360 L (12.7 ft3), Pin Lock, Weld-On Adapters
High Capacity Buckets

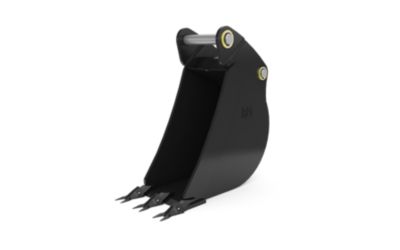

Standard Duty Buckets
305 mm (12 in), Pin On
457 mm (18 in), Pin On
610 mm (24 in), Pin On
762 mm (30 in), Pin On
914 mm (36 in), Pin On
639 mm (25 in), 415-444 Backhoe Loaders

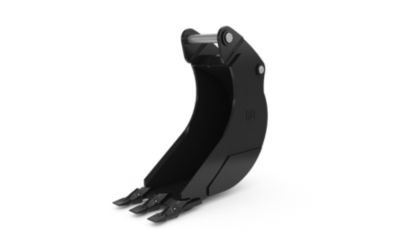

Heavy Duty Rock Buckets
305 mm (12 in), Pin On
457 mm (18 in), Pin On
610 mm (24 in), Pin On
762 mm (30 in), Pin On
914 mm (36 in), Pin On
Heavy Duty Rock Buckets
305 mm (12 in), Pin On
762 mm (30 in), Pin On
610 mm (24 in), Pin On
Sign up for Ziegler CAT emails
Events, updates, and offers
