New Attachments

Cat

HM210 Mulcher

High-performance cutting and mulching of vegetation and overgrowth.

Photos

  • Studio Shot
    Studio Shot
  • Front View
    Front View
  • Top View
    Top View
  • Left View
    Left View
  • Rear View
    Rear View
  • Bottom View
    Bottom View

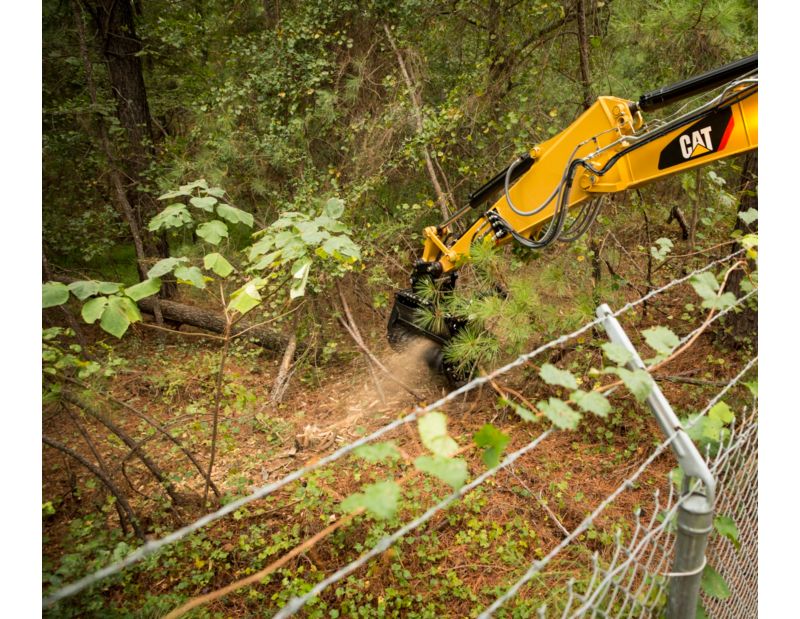

  • Cat® HM210 Mulcher Clearing Brush on Over a Fence
    Cat® HM210 Mulcher Clearing Brush on Over a Fence
  • Right View
    Right View

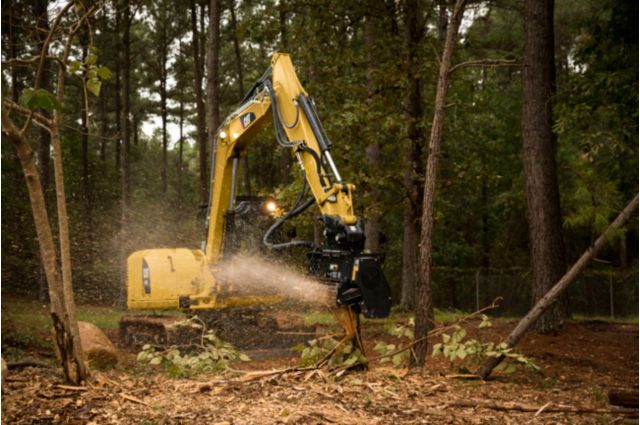

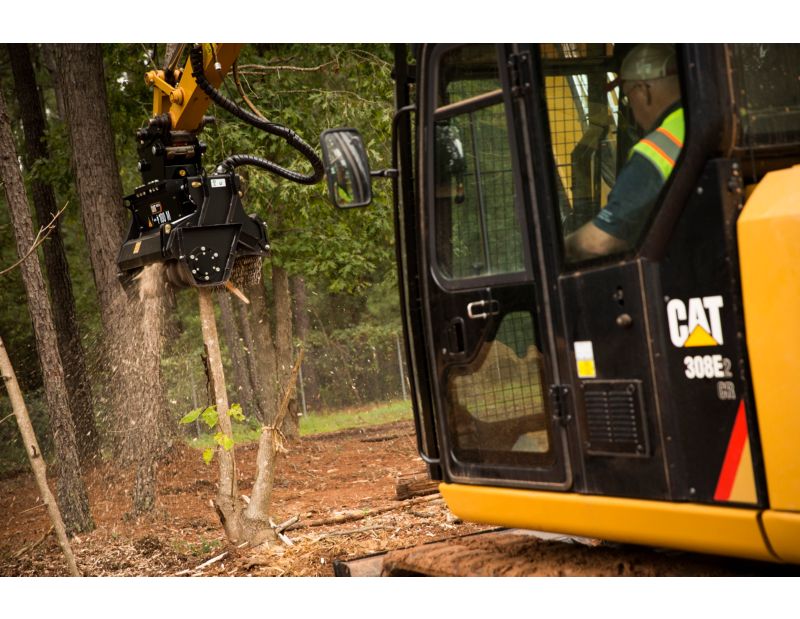

  • Cat® HM210 Mulcher in Working Application
    Cat® HM210 Mulcher in Working Application

Videos

  • Cat® Mini Excavator Mulcher at Work
  • Cat® Mini Excavator Mulcher Maintenance Tips
  • Cat® Mini Excavator Mulcher Overview
  • An Attachment for Every Job - Cat® Work Tool Attachments

360° View

Exterior

Model shown represents features on all Cat® Mulchers except where indicated.

Documents

Ready to Purchase?

Buy Now

Features

Application

Application

Use Mulchers for brush clearing, vegetation management, reclaiming untitled land, environmental maintenance, shredding pruned material and organic waste for biomass production.

Application

Use Mulchers for brush clearing, vegetation management, reclaiming untitled land, environmental maintenance, shredding pruned material and organic waste for biomass production.

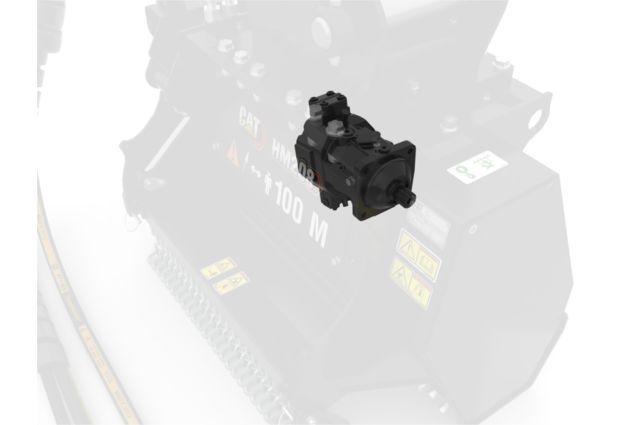

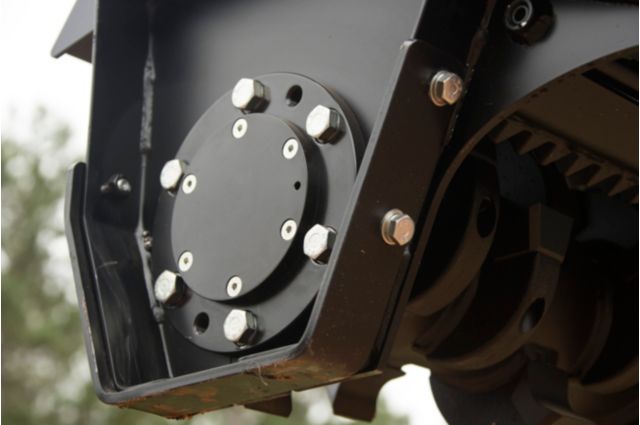

Variable Displacement Piston Motor

Variable Displacement Piston Motor

When motor pressure approaches a stall condition, the motor displacement will change to provide high torque at low speed to power through material with reduced risk of stalling. The motor automatically switches the displacement back for high speed operation once the material is cleared.

Variable Displacement Piston Motor

When motor pressure approaches a stall condition, the motor displacement will change to provide high torque at low speed to power through material with reduced risk of stalling. The motor automatically switches the displacement back for high speed operation once the material is cleared.

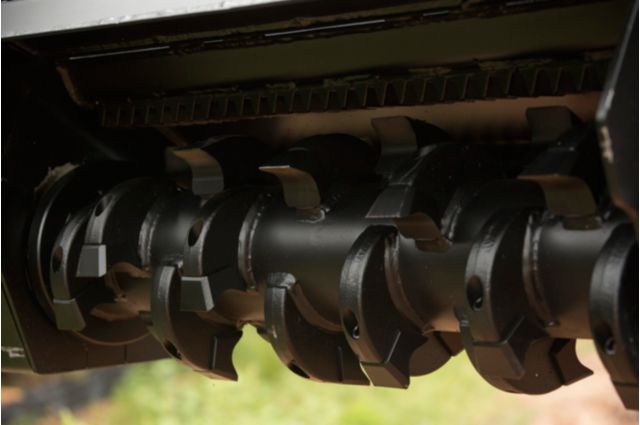

Balanced Drum

Balanced Drum

Mulching drum weighted for maximum mulching performance and smooth operation. Staggered tooth design allows for only one tooth to contact material at all times for efficient cutting performance.

Balanced Drum

Mulching drum weighted for maximum mulching performance and smooth operation. Staggered tooth design allows for only one tooth to contact material at all times for efficient cutting performance.

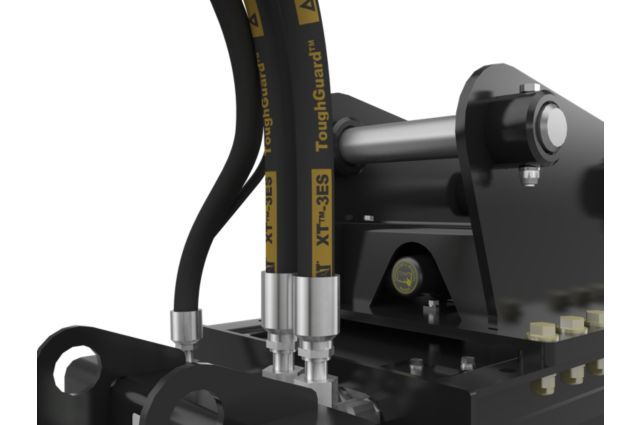

Cat® XTC Hydraulic Hoses

Cat® XTC Hydraulic Hoses

Quick disconnect hydraulic lines allow for easy tool swapping. Case drain line improves motor life and protects internal motor components. Spiral wrapped hose protection helps protects the hydraulic lines during use.

Cat® XTC Hydraulic Hoses

Quick disconnect hydraulic lines allow for easy tool swapping. Case drain line improves motor life and protects internal motor components. Spiral wrapped hose protection helps protects the hydraulic lines during use.

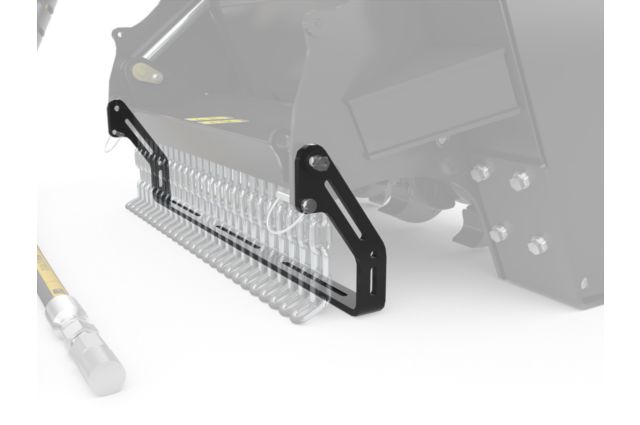

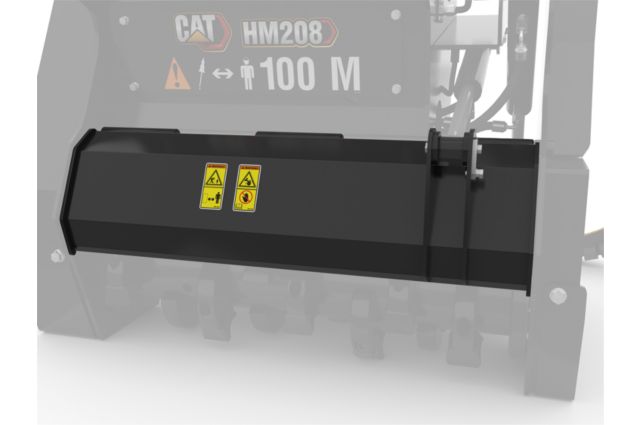

Dual Hydraulic Doors

Dual Hydraulic Doors

Standard dual hydraulic doors (front and back) allow for debris to be recirculated through drum longer for a finer finished product.

Dual Hydraulic Doors

Standard dual hydraulic doors (front and back) allow for debris to be recirculated through drum longer for a finer finished product.
Integrated Stand

Integrated Stand

Integrated stand eases access for attachment and removal. Allows mulcher to sit flat for storage.

Integrated Stand

Integrated stand eases access for attachment and removal. Allows mulcher to sit flat for storage.

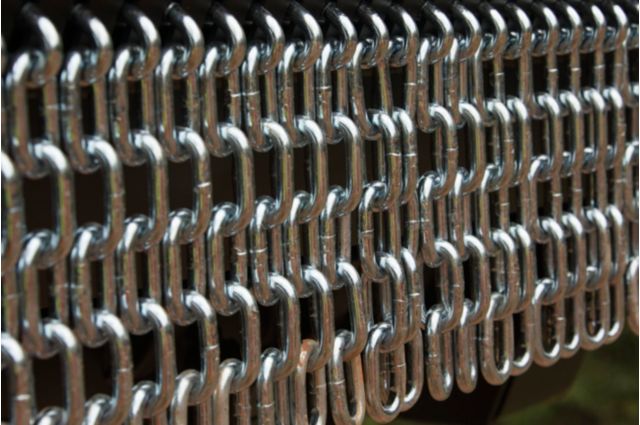

Rear Chain Guard

Rear Chain Guard

Rear chain guard limits the amount of debris thrown behind the machine.

Rear Chain Guard

Rear chain guard limits the amount of debris thrown behind the machine.
Bolt-On Replaceable Skid Shoes

Bolt-On Replaceable Skid Shoes

Bolt-On replaceable skid shoes are reinforced and built to last, yet easily replaceable as needed.

Bolt-On Replaceable Skid Shoes

Bolt-On replaceable skid shoes are reinforced and built to last, yet easily replaceable as needed.

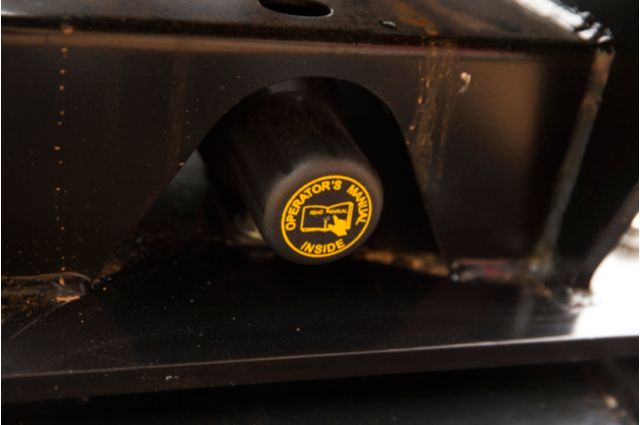

Tool Mounted Operation and Maintenance Manual Holder

Tool Mounted Operation and Maintenance Manual Holder

Tool mounted and sealed from the elements, this holder includes all of the operation manuals and maintenance guides required for proper operation of the work tool.

Tool Mounted Operation and Maintenance Manual Holder

Tool mounted and sealed from the elements, this holder includes all of the operation manuals and maintenance guides required for proper operation of the work tool.

Specifications

  • General
    Spec Value
    Overall Width 48.3 in
    Working Width 39.8 in
    Length 28.1 in
    Overall Height 41.9 in
    Weight 1190.5 lb
    Drive Method V-Belt Drive
    Motor Dual Speed Axial Piston
    Required Hydraulics Standard Flow
    Optimal Hydraulic Flow 70-130 L/min (18-34 gpm)
    Optimal Hydraulic Pressure 150-250 bar (2175-3626 psi)
    Drum Speed 2770-2890 RPM
    Fixed Teeth per Drum 24
    Maximum Cutting Diameter 120-200 mm (5-8 in)
