Caterpillar

Cat® Microgrid Master Controller-Small (MMC-S)

Application

Microgrid Control

Module Type

Monitoring / control and asset optimization

Overview

The Cat® Microgrid Master Controller-Small (MMC-S)is designed for industrial/commercial installations. The MMC will integrate a variety of traditional and renewable energy sources to provide overall monitoring and control of the assets. These assets may be either located at a common installation or dispatched over a wider region.

Photos

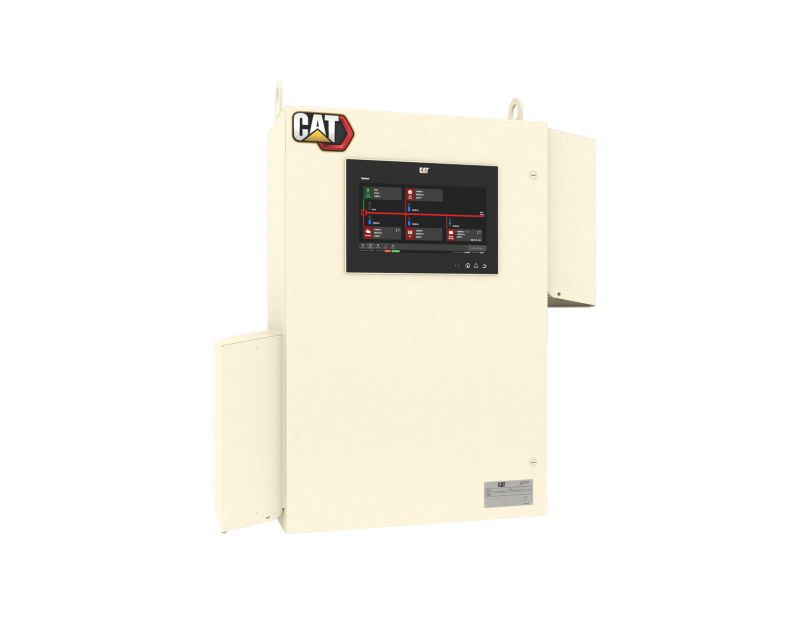

  • Microgrid Master Controller-Small (MMC-S)
    Microgrid Master Controller-Small (MMC-S)

360° View

Exterior

360 Exterior view. Double click on the image to zoom in on any area of the product.

Showroom

Virtual Product Tour. Double click on the hotspots to see in on any area of the product.

Documents

Ready to Purchase?

Buy Now

Features

Asset Optimization

Asset Optimization

  • Configurations to optimize overall performance according to pre-programmed routines that can be adjusted via user-selectable criteria. The optimization routines can be based on several different parameters, such as minimizing fuel cost, optimizing engine operation, charging batteries from PV only or maximizing system reliability. The system may also be configured to provide a minimum level of spinning reserve online to respond to sudden load transients.

Asset Optimization

  • Configurations to optimize overall performance according to pre-programmed routines that can be adjusted via user-selectable criteria. The optimization routines can be based on several different parameters, such as minimizing fuel cost, optimizing engine operation, charging batteries from PV only or maximizing system reliability. The system may also be configured to provide a minimum level of spinning reserve online to respond to sudden load transients.

Remote Monitoring

Remote Monitoring

  • The option for remote monitoring offers complete system monitoring using Cat® Connect technology to provide real time performance and health of the installation.

Remote Monitoring

  • The option for remote monitoring offers complete system monitoring using Cat® Connect technology to provide real time performance and health of the installation.

Renewable Integration

Renewable Integration

  • The distributed energy resources, including the photovoltaic (PV) system, energy storage system (ESS) and generator sets are controlled from the MMC-S. The MMC-S will determine the correct energy contribution from each of the distributed energy resources to maximize penetration from renewable energy sources and system reliability.

Renewable Integration

  • The distributed energy resources, including the photovoltaic (PV) system, energy storage system (ESS) and generator sets are controlled from the MMC-S. The MMC-S will determine the correct energy contribution from each of the distributed energy resources to maximize penetration from renewable energy sources and system reliability.

Applicable Standards and Certifications

Applicable Standards and Certifications

UL Listed to the following standards (certification pending):
  • UL508A (pending)
  • CSA C22.2 NO. 14-18 (pending)
  • CULUS mark (pending)
Declarations:
CE Declaration of conformity
  • IEC 60204-1

Applicable Standards and Certifications

UL Listed to the following standards (certification pending):
  • UL508A (pending)
  • CSA C22.2 NO. 14-18 (pending)
  • CULUS mark (pending)
Declarations:
CE Declaration of conformity
  • IEC 60204-1

Specifications

  • Technical Summary
    Spec Value
    Application Microgrid Control
    Module Type Monitoring / control and asset optimization

Standard Equipment

MMC-S Panel

  • 13" industrial color touch-screen display
  • Cat electronic control module (ECM)
  • Configurable protocol translator
  • Industrial PC for data management
  • Router for customer connection-Ethernet port
  • Digital I/O module for interfacing with ATS and other relays
  • Lightening Arrestor & Surge Protector
  • Fan and heater for temperature regulation with thermal and humidity control
  • Uninterruptible Power Supply with battery management
  • Indoor/Outdoor rated IP54 wall mount control panel

Software Modules

  • Individual software modules control each type of asset
  • Up to five (5) software modules may be installed to match the site power system configuration
