New Attachments

Cat

2.9 m3 (3.8 yd3), 2750 mm (108 in) Pin On General Purpose Bucket - Performance Series With Bolt-On Cutting Edge

General Purpose Performance Series buckets provides higher fill factors and material retention in load and carry applications, as well as grading, leveling and dumping in a wide variety of applications and materials.

Photos

  • Studio Shot
    Studio Shot

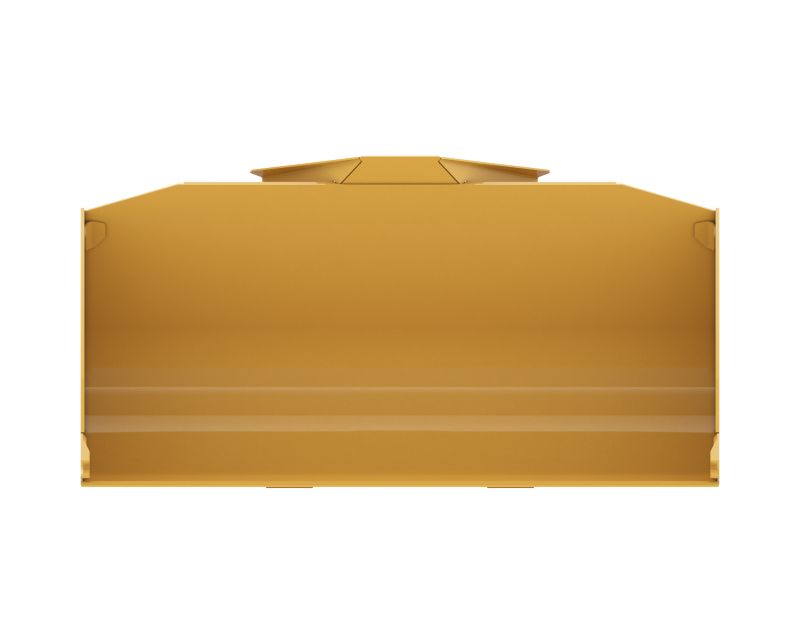

  • Front View
    Front View

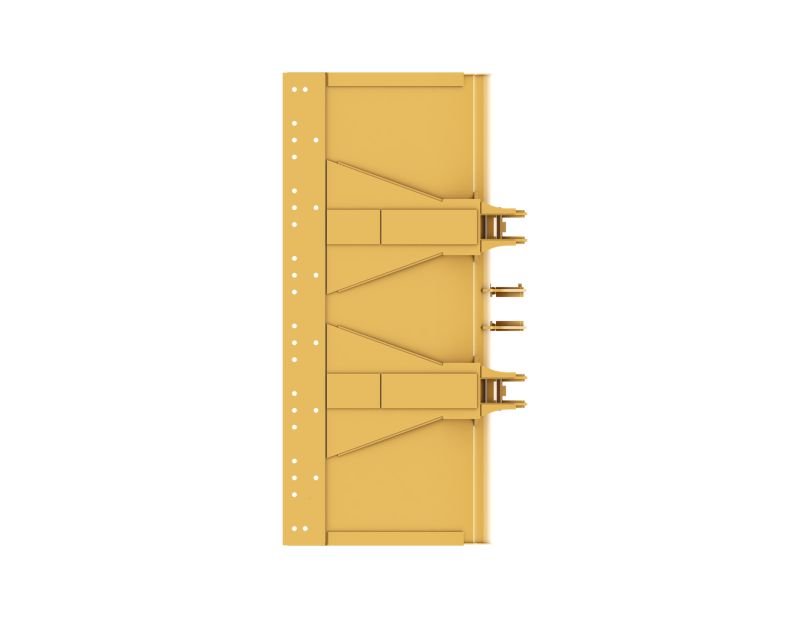

  • Top View
    Top View

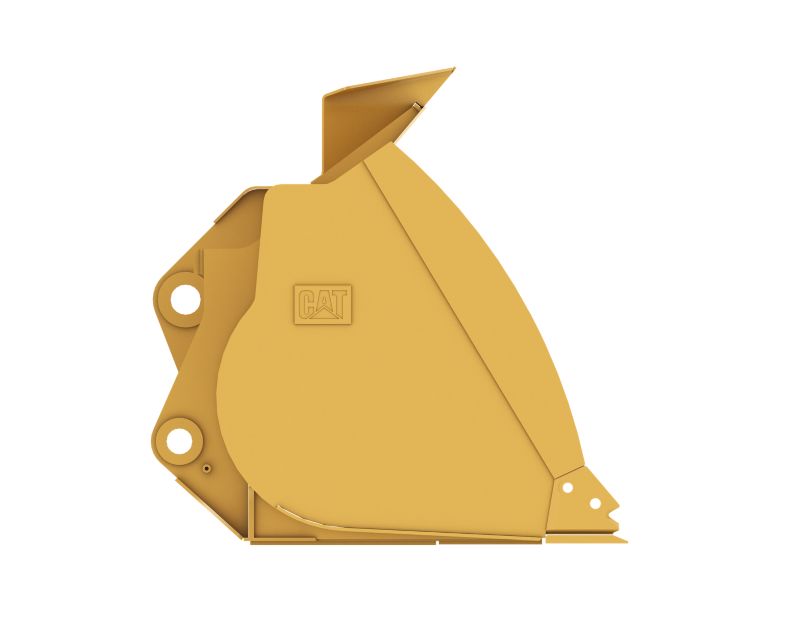

  • Left View
    Left View

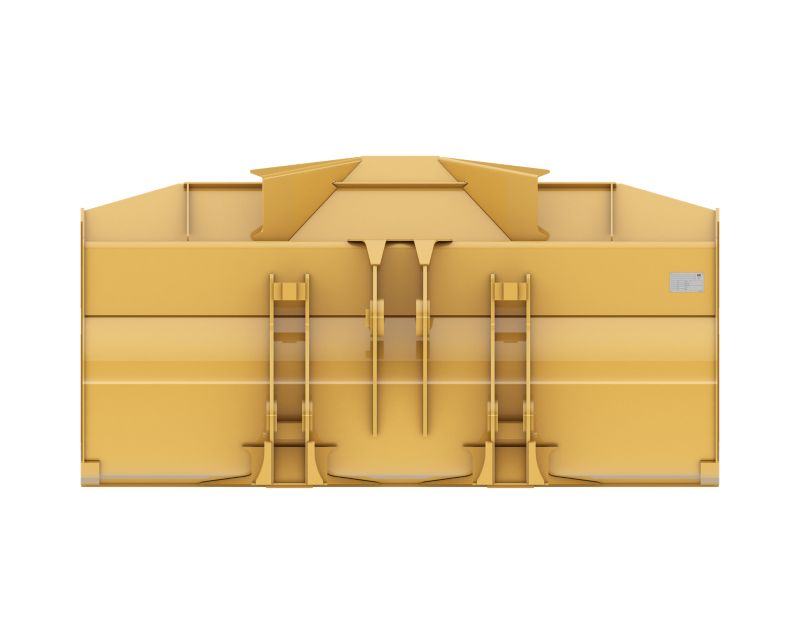

  • Rear View
    Rear View

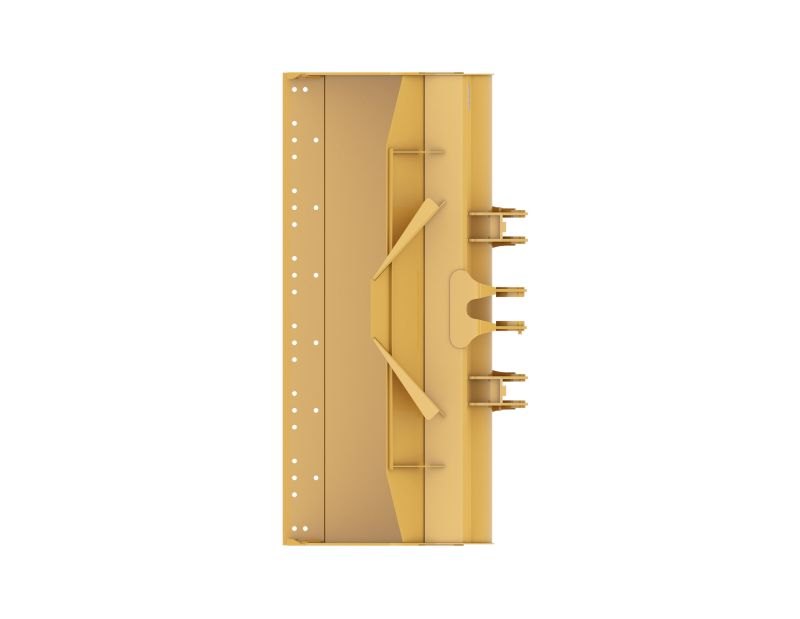

  • Bottom View
    Bottom View

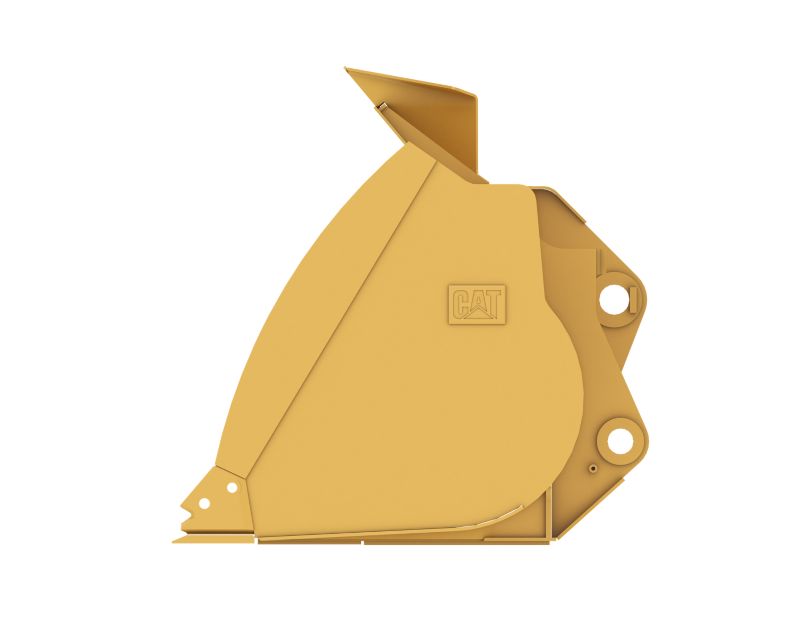

  • Right View
    Right View

Videos

  • An Attachment for Every Job - Cat® Work Tool Attachments

Ready to Purchase?

Buy Now

Features

Application

Application

General Purpose Performance Series Buckets provide good all-around performance for stockpiling, re-handling, excavating, and bank loading. As the name suggests, these buckets work well in loading from stockpiles as well as bank loading. They are designed for standard breakout forces and abrasion conditions. Ideal for back dragging and grading applications. The fill factor for Performance Series buckets can be up to 115% on top of the specified capacity.

Application

General Purpose Performance Series Buckets provide good all-around performance for stockpiling, re-handling, excavating, and bank loading. As the name suggests, these buckets work well in loading from stockpiles as well as bank loading. They are designed for standard breakout forces and abrasion conditions. Ideal for back dragging and grading applications. The fill factor for Performance Series buckets can be up to 115% on top of the specified capacity.
Integrated Spill Guard

Integrated Spill Guard

Integrated Spill Guard provides protection of machine linkage and improved load retention by preventing material spillage.

Integrated Spill Guard

Integrated Spill Guard provides protection of machine linkage and improved load retention by preventing material spillage.
Rounded Sidebars

Rounded Sidebars

Rounded sidebars help funnel material into the bucket and retain it.

Rounded Sidebars

Rounded sidebars help funnel material into the bucket and retain it.
Performance Series Profile

Performance Series Profile

Performance Series profile for easy loading and maximum carry load.

Performance Series Profile

Performance Series profile for easy loading and maximum carry load.
Open Throat Design

Open Throat Design

Open throat design improves heap size and fill factor.

Open Throat Design

Open throat design improves heap size and fill factor.

Specifications

  • General
    Spec Value
    Width 108 in
    Height 55.9 in
    Weight 2330.3 lb
    Length 55.7 in
    Capacity 3.8 yd³
    Base Edge Thickness 1 in
    Interface Type Pin On
