Cat

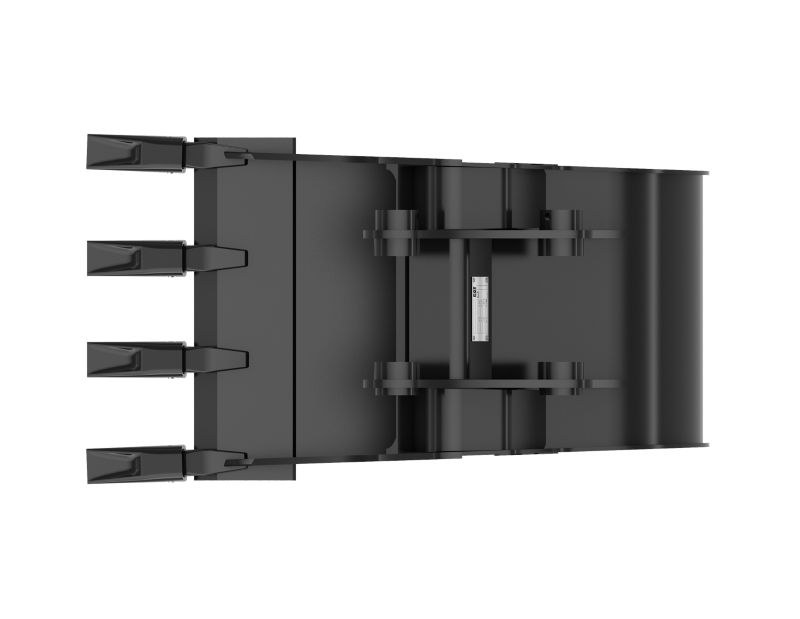

508 mm (20 in), 144 L (5.1 ft3) Pin On High Capacity Bucket With 45 mm (1.8 in) Pin Bores

Optimized geometry provides maximum digging force and material volume for heavy-duty applications.

Photos

  • Studio Shot
    Studio Shot
  • Front View
    Front View
  • Top View
    Top View
  • Left View
    Left View
  • Rear View
    Rear View
  • Bottom View
    Bottom View
  • Right View
    Right View

Videos

  • Cat® Mini Excavator Buckets Overview
  • An Attachment for Every Job - Cat® Work Tool Attachments

Documents

Ready to Purchase?

Buy Now

Features

Application

Application

Especially suited for moving large quantities of material, such as during truck loading applications, and are capable of moving greater volumes of material than the heavy duty buckets.

Application

Especially suited for moving large quantities of material, such as during truck loading applications, and are capable of moving greater volumes of material than the heavy duty buckets.

Bucket Design

Bucket Design

Formed back wrapper design enhances bucket loading ability and production.

Bucket Design

Formed back wrapper design enhances bucket loading ability and production.

Superior Bucket Fill

Superior Bucket Fill

Optimum wrapper angle and no sharp corners promote superior bucket fill and reduce material packing.

Superior Bucket Fill

Optimum wrapper angle and no sharp corners promote superior bucket fill and reduce material packing.

Tapered Bucket Sidewalls

Tapered Bucket Sidewalls

Enhanced bucket shape allows material to flow more easily. Tapered bucket sidewalls allow for easy dumping of sticky material.

Tapered Bucket Sidewalls

Enhanced bucket shape allows material to flow more easily. Tapered bucket sidewalls allow for easy dumping of sticky material.

Specifications

  • General
    Spec Value
    Width 20 in
    Capacity 5.1 ft³
    Weight 240.3 lb
    Base Edge Thickness 0.8 in
    Tip Radius 33.5 in
    Interface Type Pin On
