New Attachments

Cat

508 mm (20 in), 102 L (3.6 ft3) Pin On Heavy Duty Bucket With 45 mm (1.8 in) Pin Bores

High strength buckets designed for maximum performance and value over a broad range of applications.

Photos

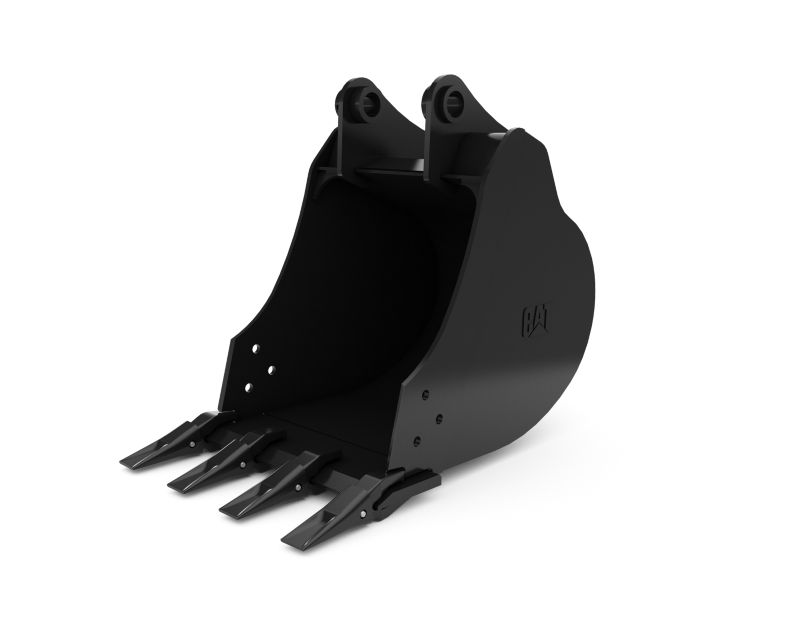

  • Studio Shot
    Studio Shot

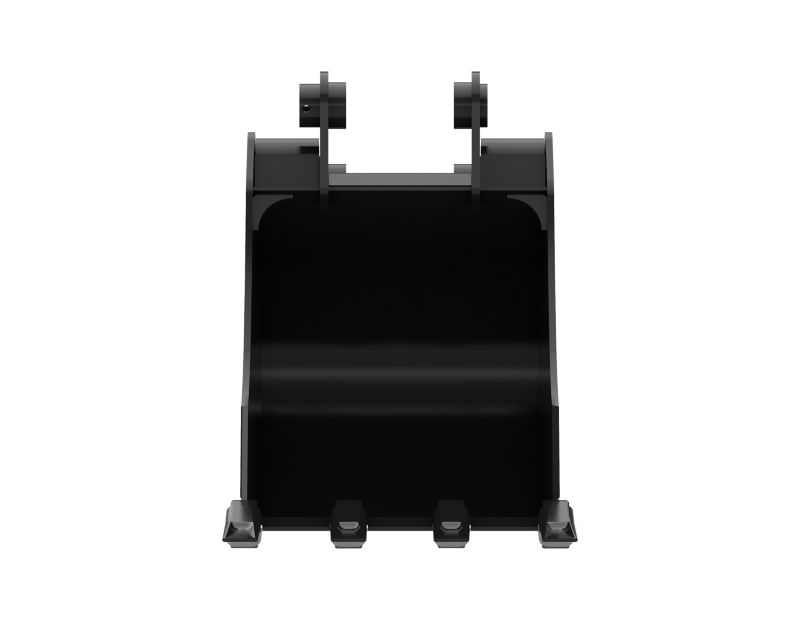

  • Front View
    Front View

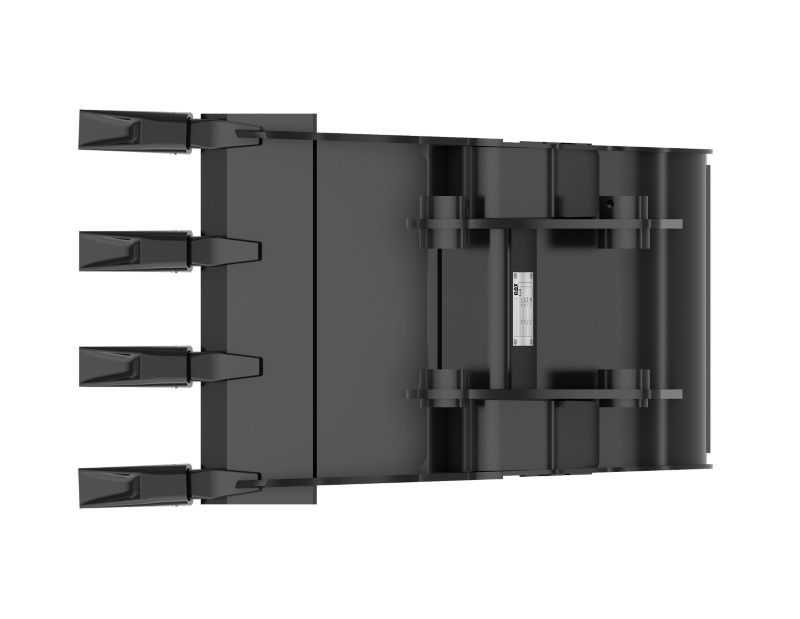

  • Top View
    Top View

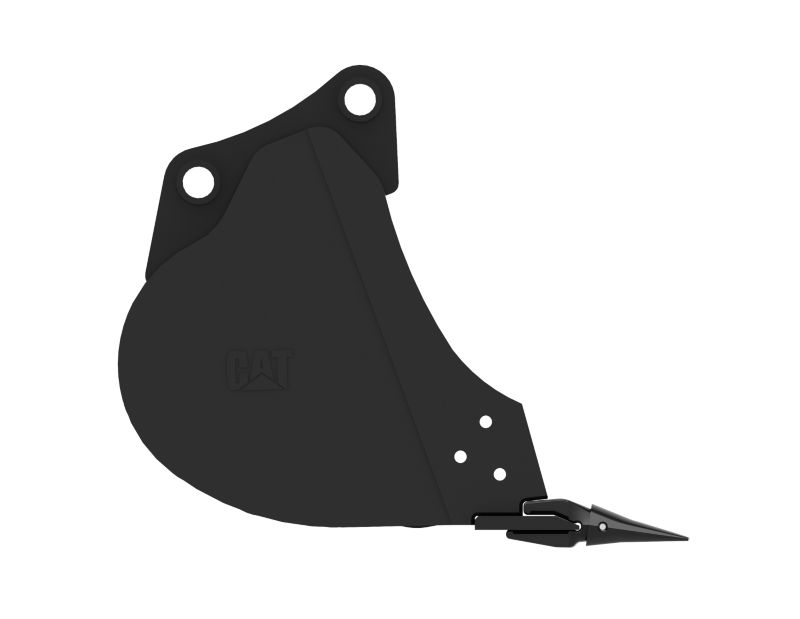

  • Left View
    Left View

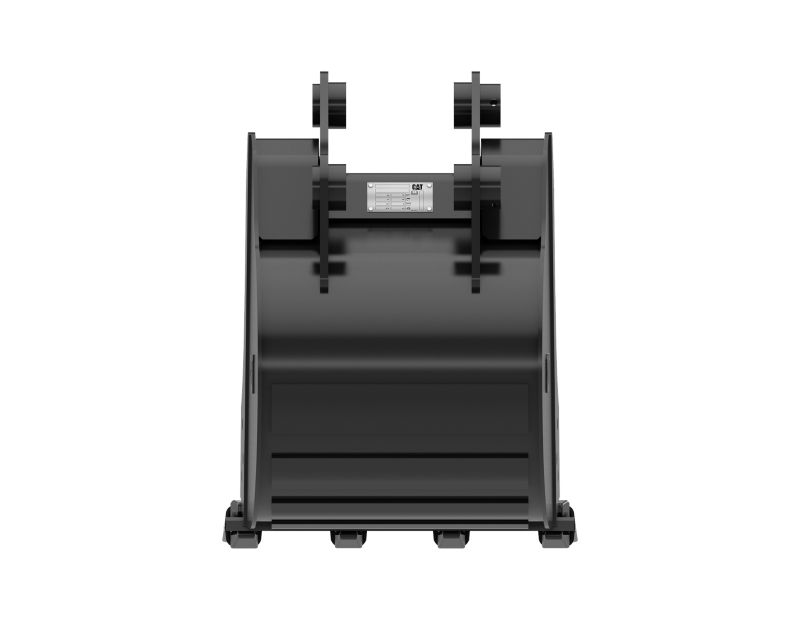

  • Rear View
    Rear View

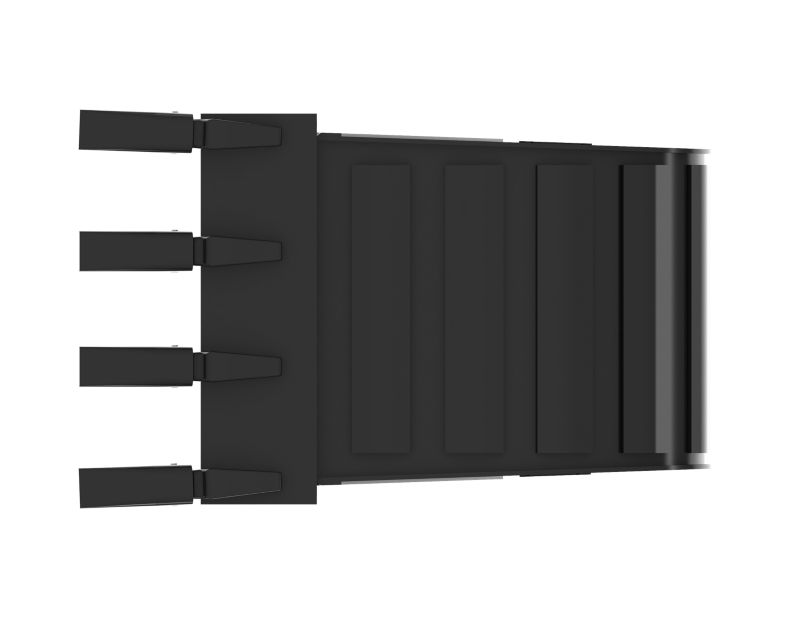

  • Bottom View
    Bottom View

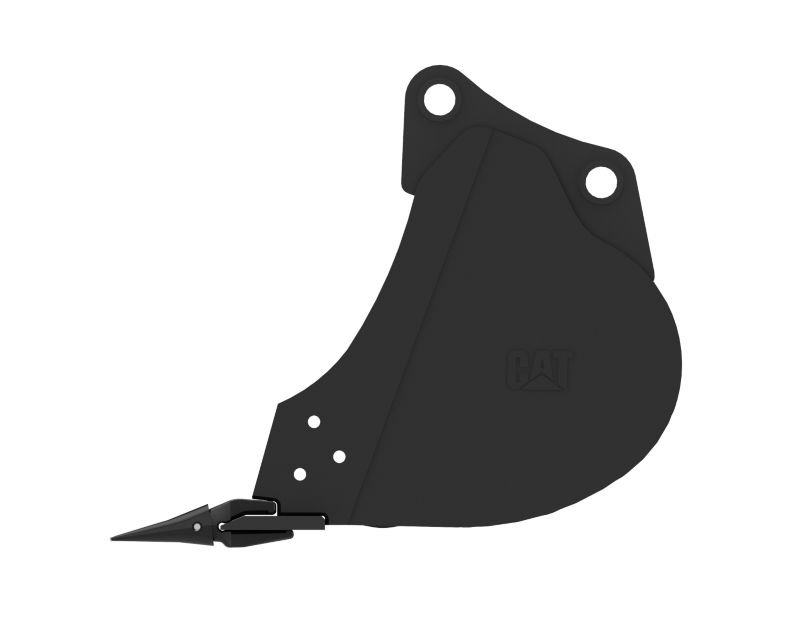

  • Right View
    Right View

Videos

  • Cat® Mini Excavator Buckets Overview
  • An Attachment for Every Job - Cat® Work Tool Attachments

Documents

Ready to Purchase?

Buy Now

Features

Application

Application

Cat® Heavy Duty Buckets are well suited for semi-rocky soil or where hard bank material must be broken out and removed. Ideal for utility trenching, digging footings, back-filling and general excavating in construction, landscaping and utility applications.

Application

Cat® Heavy Duty Buckets are well suited for semi-rocky soil or where hard bank material must be broken out and removed. Ideal for utility trenching, digging footings, back-filling and general excavating in construction, landscaping and utility applications.

Bucket Design

Bucket Design

Formed back wrapper design enhances bucket loading ability and production.

Bucket Design

Formed back wrapper design enhances bucket loading ability and production.

Superior Bucket Fill

Superior Bucket Fill

Optimum wrapper angle and no sharp corners promote superior bucket fill and reduce material packing.

Superior Bucket Fill

Optimum wrapper angle and no sharp corners promote superior bucket fill and reduce material packing.

Bucket Shape

Bucket Shape

Enhanced bucket shape allows material to flow more easily. Tapered bucket sidewalls allow for easy dumping of sticky material.

Bucket Shape

Enhanced bucket shape allows material to flow more easily. Tapered bucket sidewalls allow for easy dumping of sticky material.

Specifications

  • General
    Spec Value
    Width 20 in
    Capacity 3.6 ft³
    Weight 207.2 lb
    Base Edge Thickness 0.8 in
    Tip Radius 30.9 in
    Interface Type Pin On
