New Attachments

Cat

BA118C Manual Angle Broom With Polypropylene/Wire Bristles

Used for clearing parking lots, industrial plants, mill yards, airport runways, streets, driveways and lanes.

Photos

  • Studio Shot

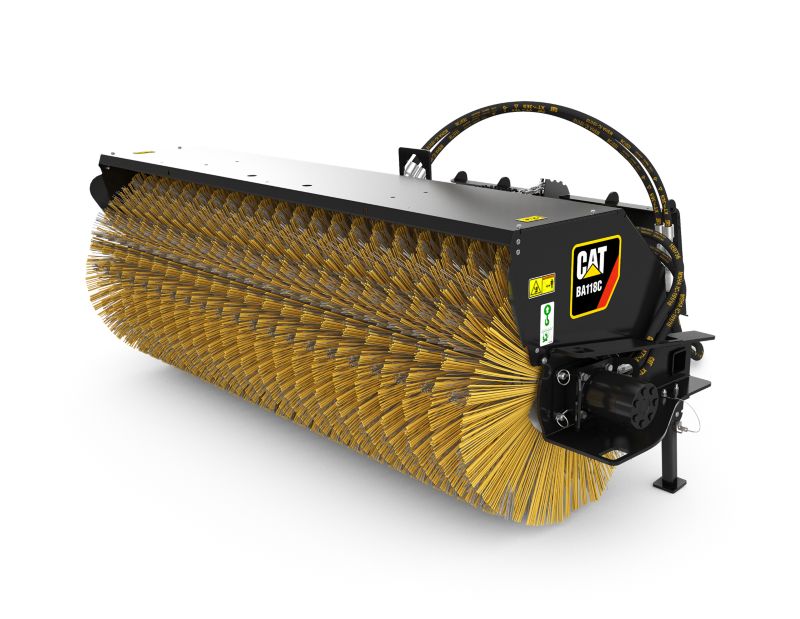

    Studio Shot

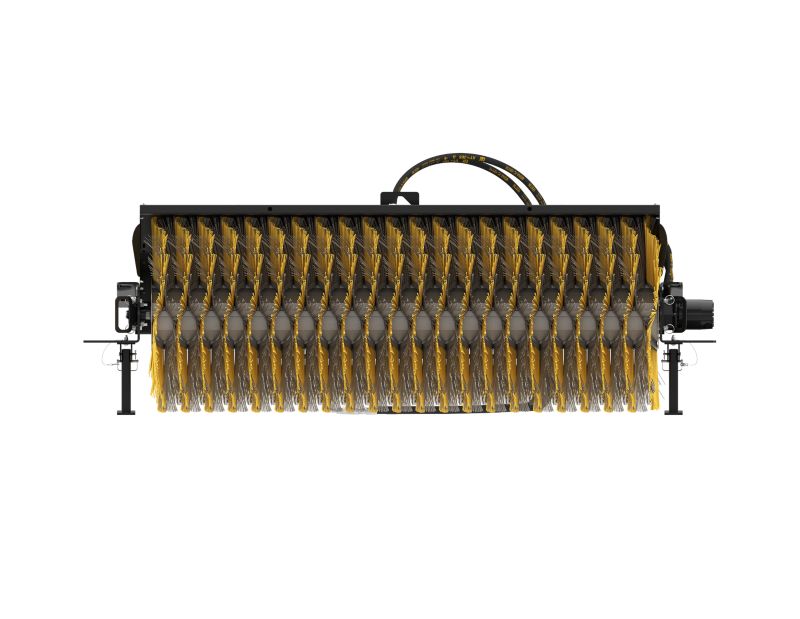

  • Front View
    Front View

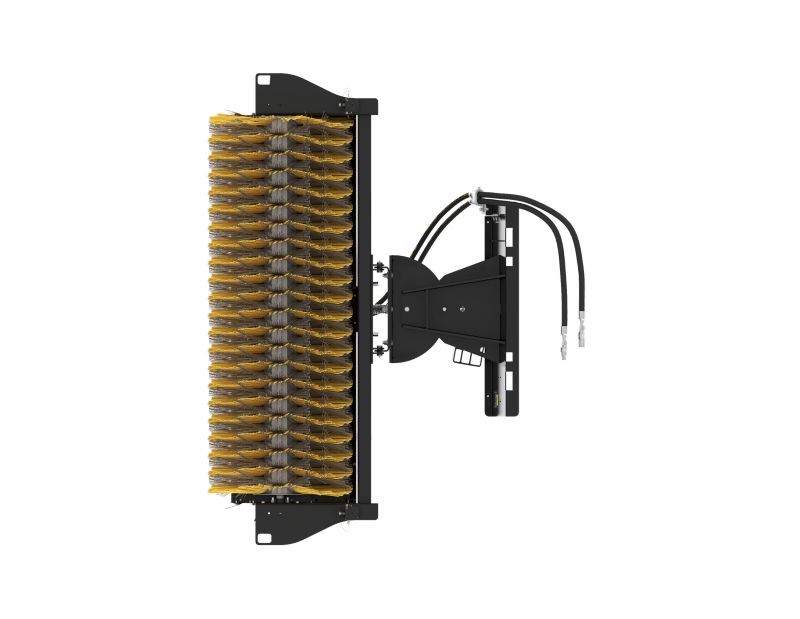

  • Top View

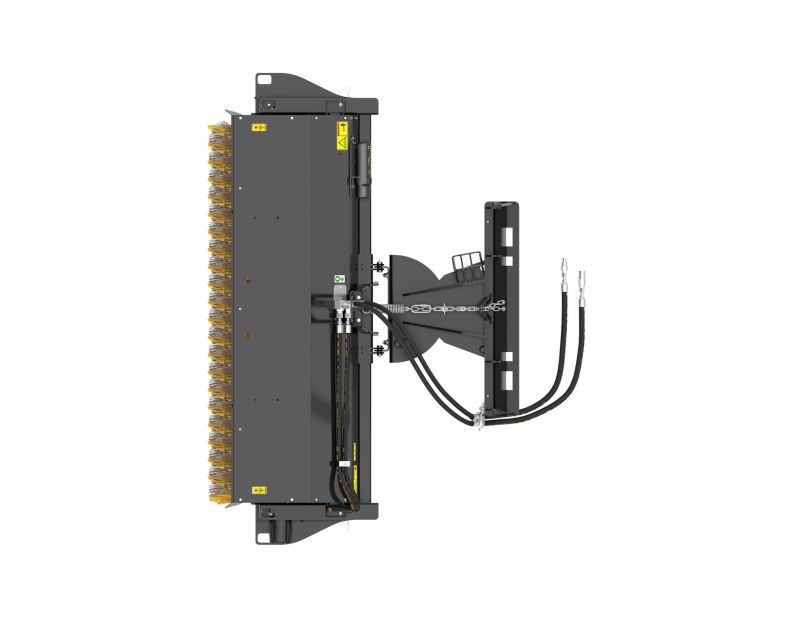

    Top View

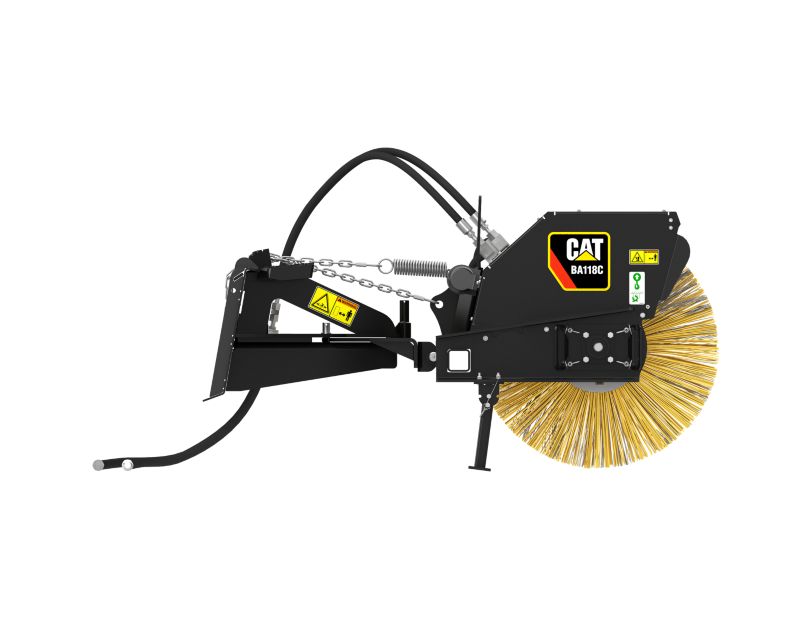

  • Left View

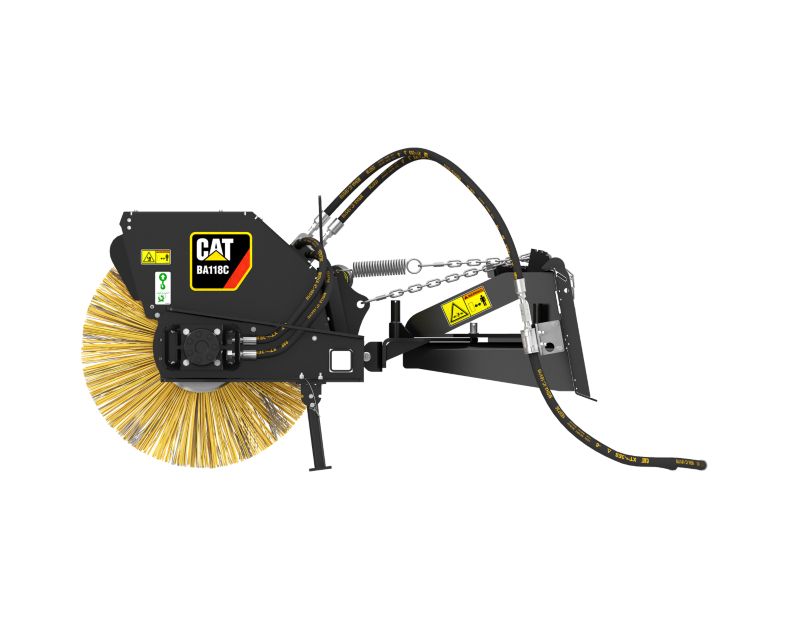

    Left View

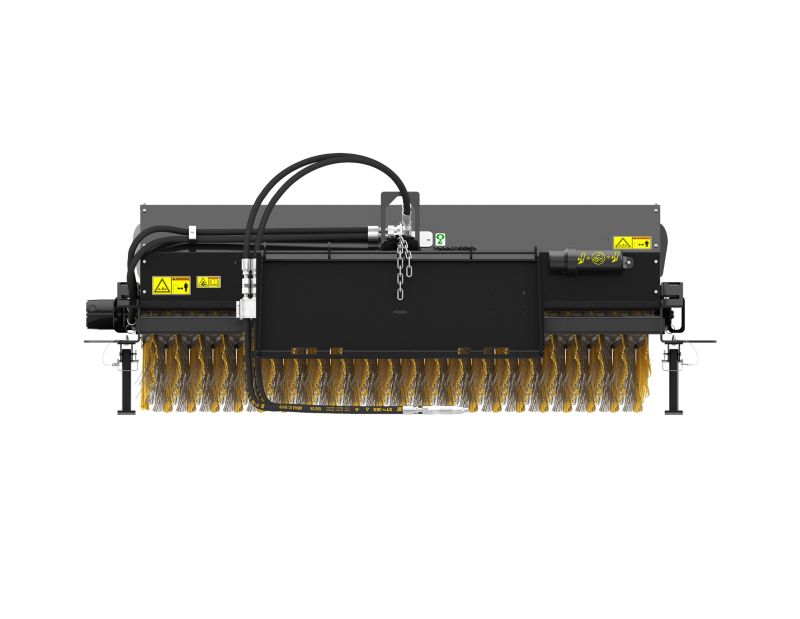

  • Rear View
    Rear View
  • Bottom View
    Bottom View
  • Right View
    Right View

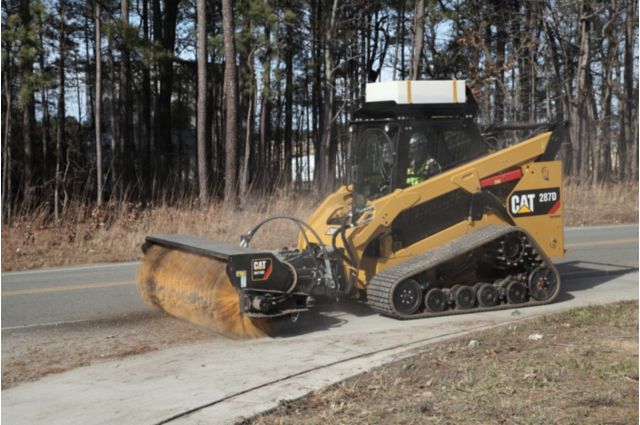

  • Cat® BA118C Angle Broom at Work
    Cat® BA118C Angle Broom at Work

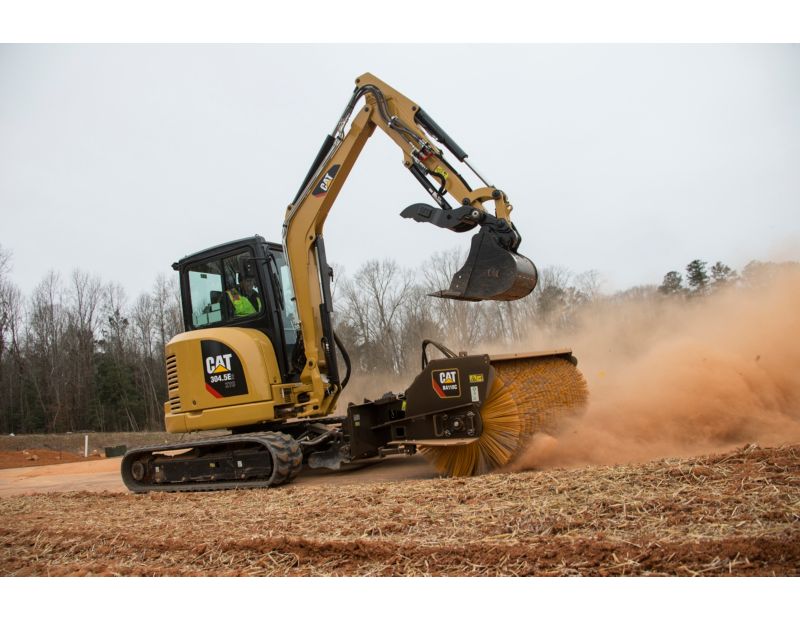

  • Cat® 304.5E2 XTC Mini Excavator sweeping with a BA118C Angle Broom
    Cat® 304.5E2 XTC Mini Excavator sweeping with a BA118C Angle Broom

Videos

  • Cat® Angle Broom and Utility Broom for Compact Equipment at Work
  • Cat® BA118C Angle Broom Overview
  • Cat® Brooms at Work
  • An Attachment for Every Job - Cat® Work Tool Attachments

360° View

Exterior

Model shown represents features on all Cat® Angle Brooms except where indicated.

Documents

Ready to Purchase?

Buy Now

Features

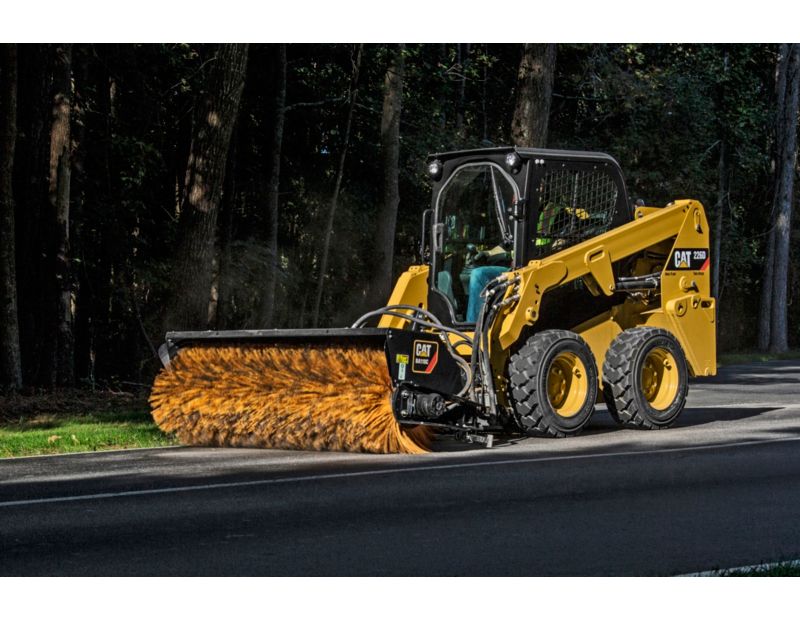

Application

Application

Ideal for clearing parking lots, industrial plants, mill yards, airport runways, streets, driveways and lanes.

Application

Ideal for clearing parking lots, industrial plants, mill yards, airport runways, streets, driveways and lanes.
Variable Sweeping Angle

Variable Sweeping Angle

Angles hydraulically or manually 30 degrees left or right; will also clean in straight position.

Variable Sweeping Angle

Angles hydraulically or manually 30 degrees left or right; will also clean in straight position.

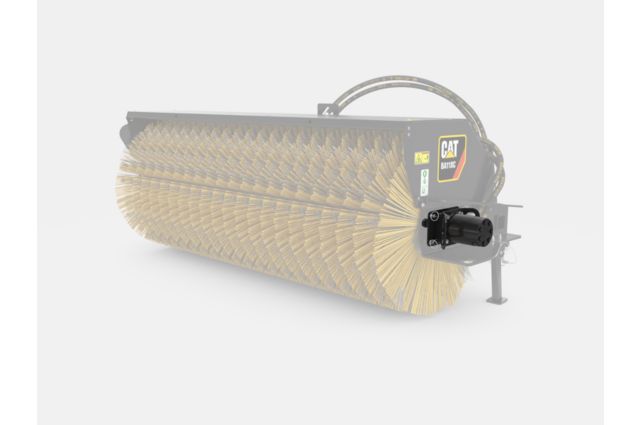

Reliable Hydraulic Motor

Reliable Hydraulic Motor

Strong gerotor hydraulic motor provides high torque to the bristle core and is designed to maximize performance of standard flow machines. The motor is easily removed using quick release pins for bristle wafer replacement.

Reliable Hydraulic Motor

Strong gerotor hydraulic motor provides high torque to the bristle core and is designed to maximize performance of standard flow machines. The motor is easily removed using quick release pins for bristle wafer replacement.
Parking Supports

Parking Supports

Parking supports provide stable and secure parking of the broom when not in use.

Parking Supports

Parking supports provide stable and secure parking of the broom when not in use.

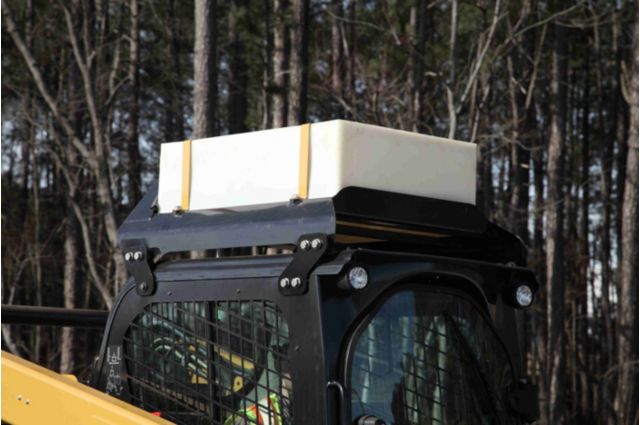

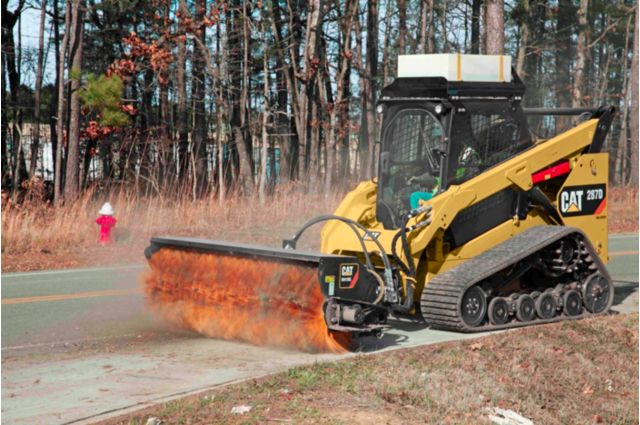

Optional Water Kit

Optional Water Kit

An optional water sprinkler kit is available which helps reduce the amount of airborne dust during your sweeping operations.

Optional Water Kit

An optional water sprinkler kit is available which helps reduce the amount of airborne dust during your sweeping operations.

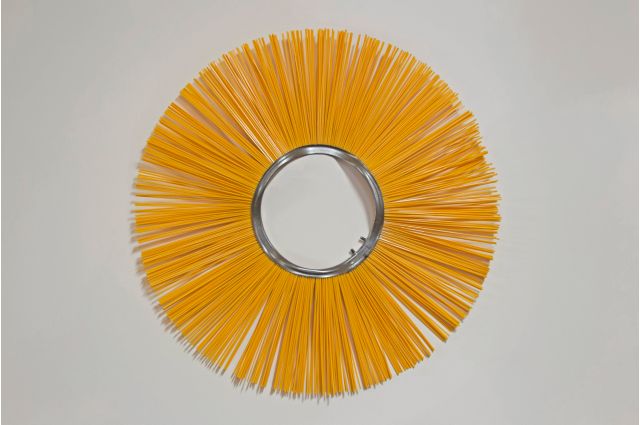

Polypropylene and Wire Bristle Options

Polypropylene and Wire Bristle Options

Cat® Angle Brooms come standard with a 50/50 mix of replaceable polypropylene and steel wire sections. Convoluted bristle sections can be converted to all wire or all poly for special applications.

Polypropylene and Wire Bristle Options

Cat® Angle Brooms come standard with a 50/50 mix of replaceable polypropylene and steel wire sections. Convoluted bristle sections can be converted to all wire or all poly for special applications.

Specifications

  • General
    Spec Value
    Overall Width 103.8 in
    Sweeping Width 83.4 in
    Brush Diameter 32.1 in
    Required Hydraulics Standard Flow
    Height 36.1 in
    Length 68.5 in
    Weight 906.1 lb
    Optimal Hydraulic Flow 42-86 L/min (11-23 gpm)
    Optimal Hydraulic Pressure 145-235 bar (2100-3400 psi)
    Motor Displacement 24.7 in³/rev
    Brush Speed at Maximum Flow 199 rpm
    Sweeping Width - Angled (± 30 Degrees) 72.8 in
    Overall Width - Angled (± 30 Degrees) 98.7 in
    Drive Method Direct Drive
    Interface Type Skid Steer Coupler
    Optional Hood Extension 39.7 lb
